Rear Safing Sensor Connector End View

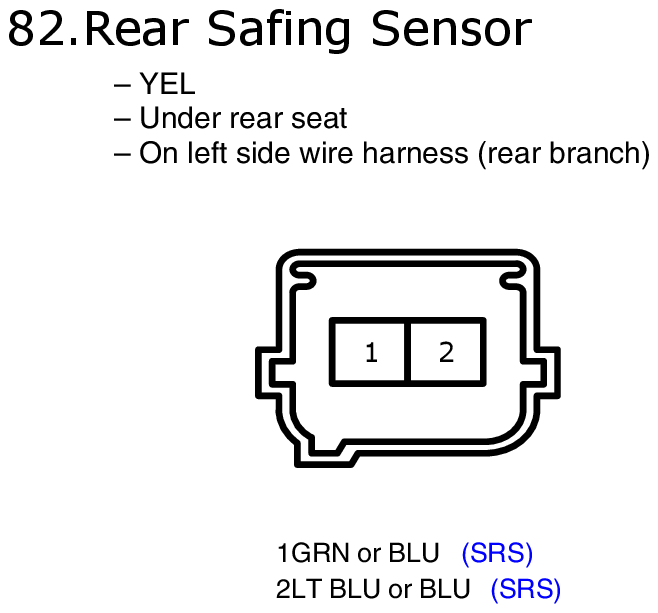

Fig 1: Rear Safing Sensor Connector End View
GHHW9075Courtesy of AMERICAN HONDA MOTOR CO., INC.

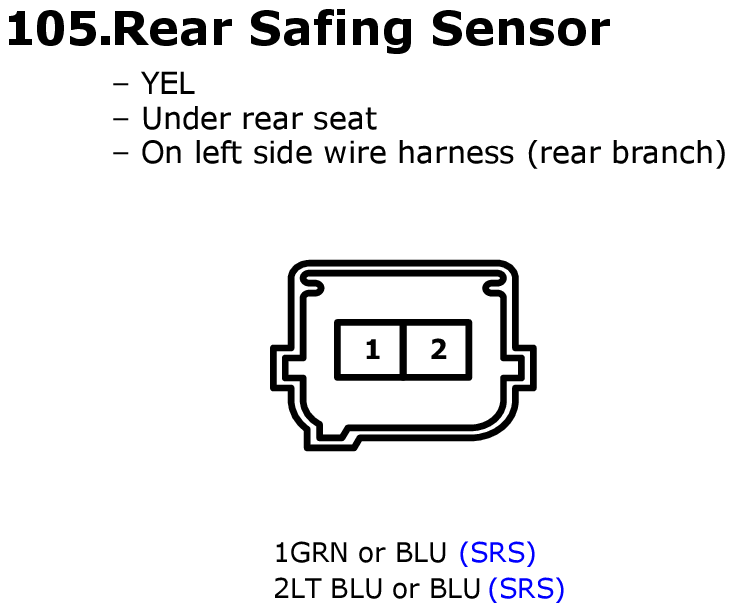

Fig 1: Rear Safing Sensor Connector End View
GHHW9530Courtesy of AMERICAN HONDA MOTOR CO., INC.
