Rocker Arm Oil Pressure Switch (VTEC Oil Pressure Switch) Connector End View

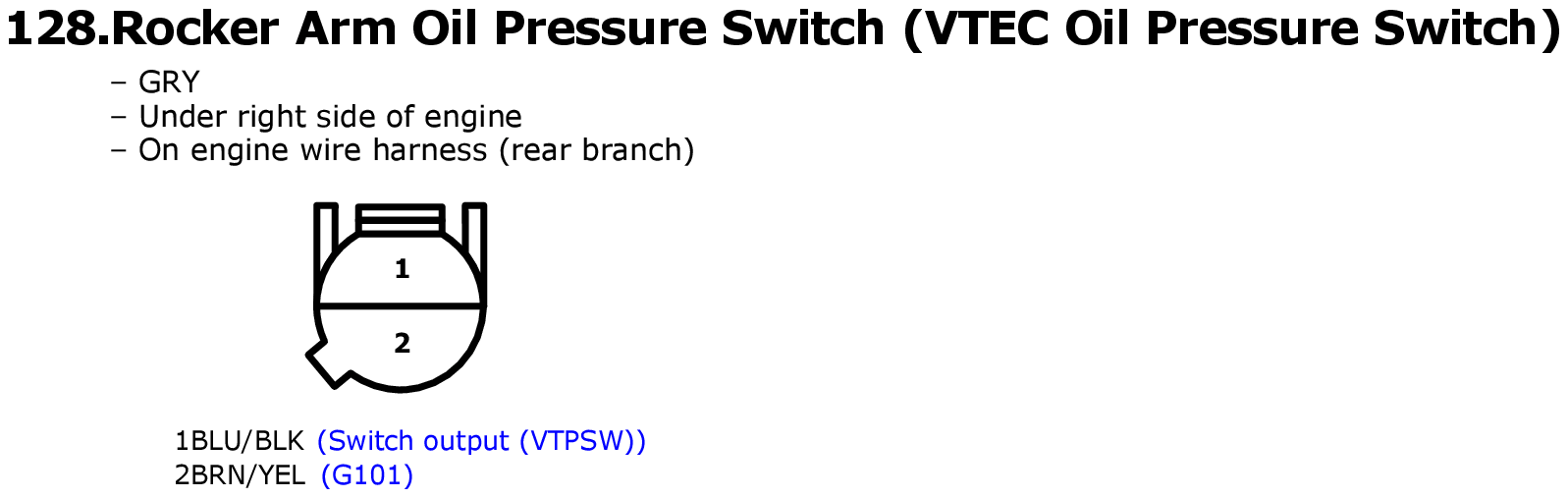

Fig 1: Rocker Arm Oil Pressure Switch (VTEC Oil Pressure Switch) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
