Trunk Light B Connector End View

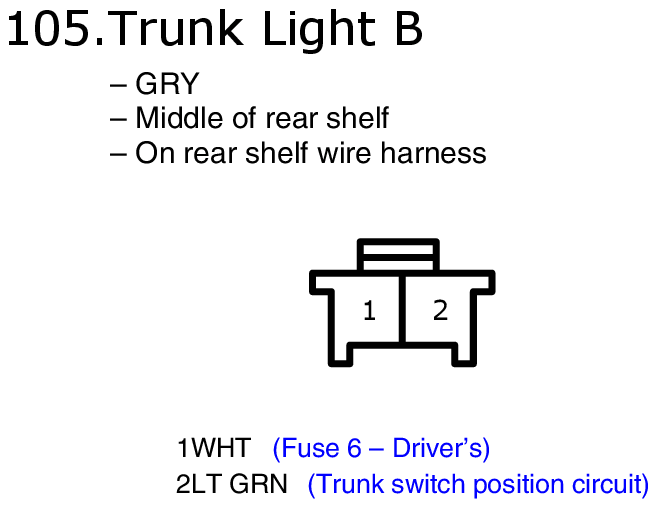

Fig 1: Trunk Light B Connector End View
GHHW9098Courtesy of AMERICAN HONDA MOTOR CO., INC.

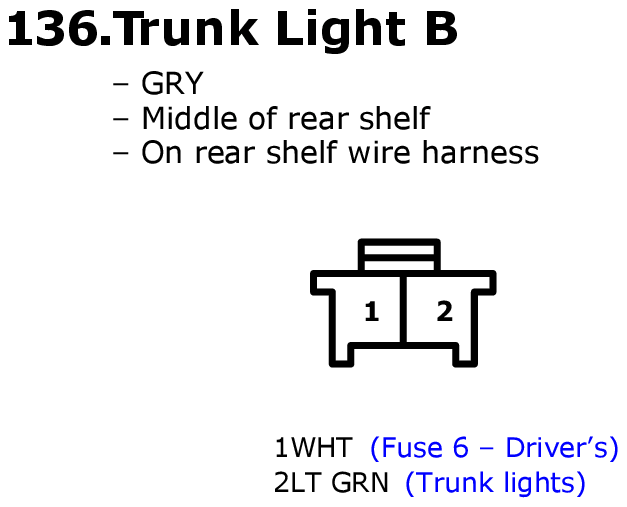

Fig 1: Trunk Light B Connector End View
GHHW9561Courtesy of AMERICAN HONDA MOTOR CO., INC.
