Windshield Washer Motor Connector End View

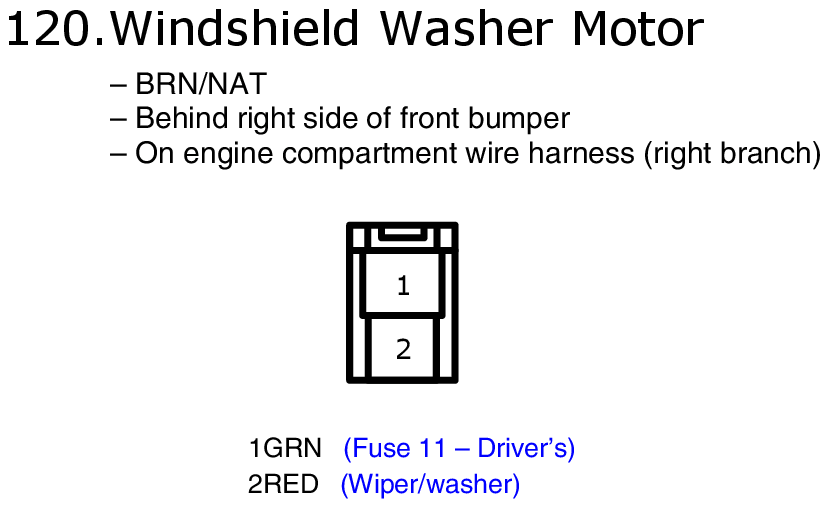

Fig 1: Windshield Washer Motor Connector End View
GHHW9113Courtesy of AMERICAN HONDA MOTOR CO., INC.

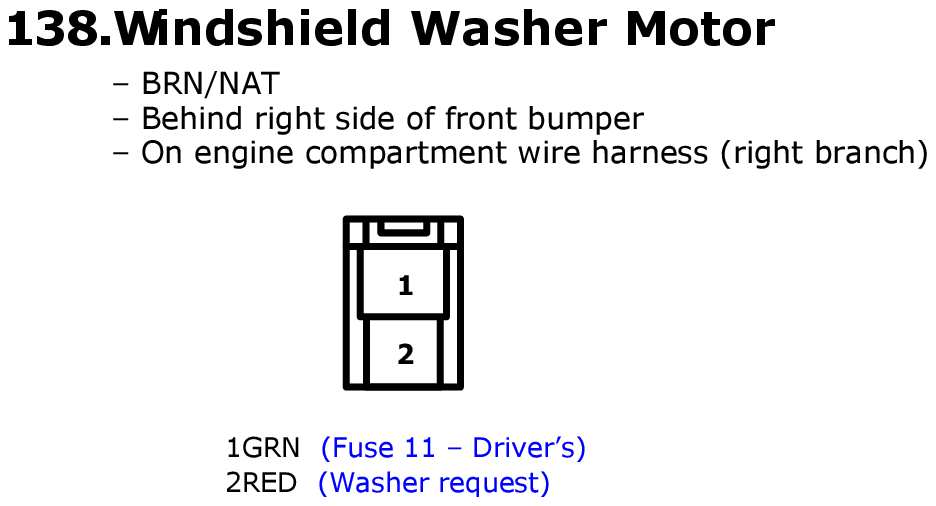

Fig 1: Windshield Washer Motor Connector End View
GHHW9563Courtesy of AMERICAN HONDA MOTOR CO., INC.
