Circuit Diagram

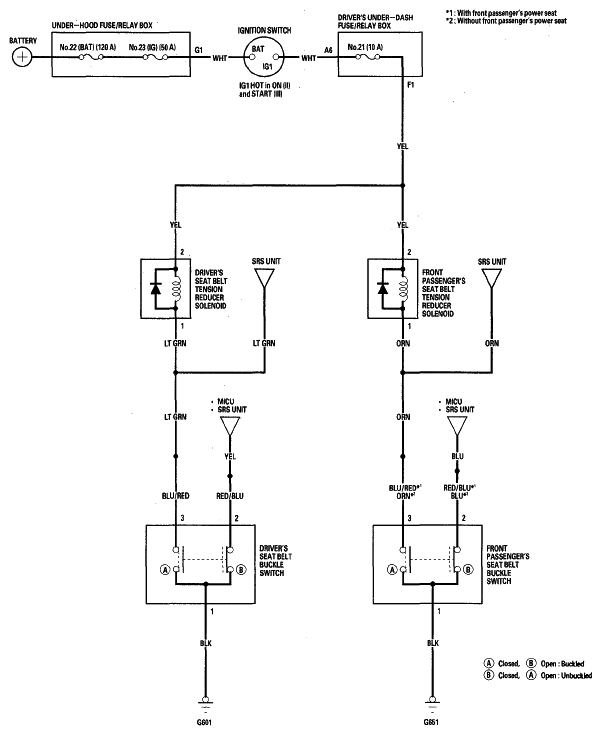

Fig 1: Seat Belt Tension Reducer - Circuit Diagram

G05497172

Courtesy of AMERICAN HONDA MOTOR CO., INC.
