Cruise Control Combination Switch Test/Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
2. Disconnect the connector from the cable reel.

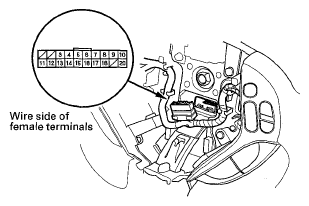

   Fig 1: Identifying Connector And Cable Reel

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each switch position according to the table.
   • If there is continuity, and it matches the table, but switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or both positions, replace the switch (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).
     Fig 2: Continuity Reference Chart

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
