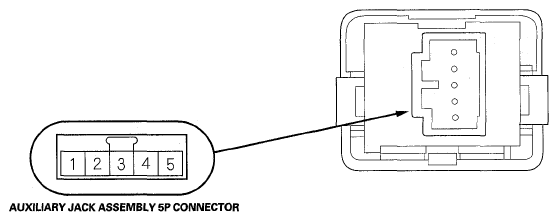

Auxiliary Jack Assembly Connector for Inputs and Outputs
When replacing an auxiliary jack assembly connector, match the wires to the cavities listed in the following table.
CONNECTOR TERMINAL WIRE SPECIFICATIONS
| Cavity | Wire | Connect to |
|---|---|---|
| 1 | WHT | Audio Unit (AUX DET) |
| 2 | BLU | Audio Unit (AUX GND) |
| 3 | BRN | Audio Unit (AUX SGND) |
| 4 | YEL | Audio Unit (AUX L) |
| 5 | GRIM | Audio Unit (AUX R) |
