Voice Control Switch Test
- Remove the driver's airbag assembly (see
DRIVER'S AIRBAG REPLACEMENT
).

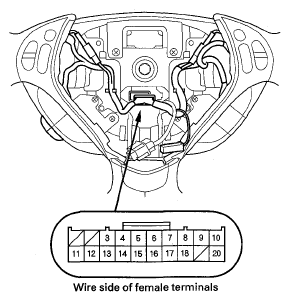

- Remove the 20P connector from the cable reel.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Measure the resistance between the No. 10 and No. 18 terminals in each switch position according to the table.
RESISTANCE CHART
| Position |
Resistance |
| OFF |
About 10 kΩ |
| Talk button pressed |
About 2.2 kΩ |
| Back button pressed |
About 650 kΩ |
- If the resistance is not as specified, replace the voice control switch (see
STEERING WHEEL DISASSEMBLY/REASSEMBLY
).
