ECM/PCM Inputs and Outputs at Connector E (31P)

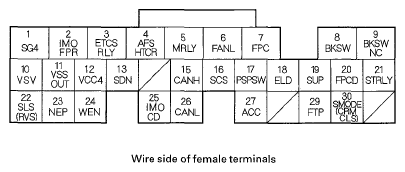

Fig 1: Identifying ECM/PCM Inputs And Outputs At Connector E (31P) Terminals
G05457886Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Standard battery voltage is about 12 V.
TERMINALS REFERENCE CHART

Terminal number Wire color Terminal name Description Signal
1 GRN/BLK SG4 (SENSOR GROUND) Sensor ground Less than 1.0 V at all times
2 BLK IMOFPR (IMMOBILIZER FUEL PUMP RELAY) Drives PGM-FI main relay 2 0 V for 2 seconds after turning ignition switch ON (II), then battery voltage
3 WHT/RED ETCSRLY (THROTTLE ACTUATOR CONTROL MODULE RELAY) Drives throttle actuator control module relay With ignition switch ON (II): about 0 V
4 GRN AFSHTCR (AIR FUEL RATIO (A/F) SENSOR RELAY) Drives A/F sensor relay With ignition switch ON (II): about 0 V
5 PNK MRLY (PGM-FI MAIN RELAY) Drives PGM-FI main relay 1 Power source for DTC memory With ignition switch ON (II): about 0 V
With ignition switch OFF: battery voltage
6 PUR FANL (RADIATOR FAN CONTROL) Drives A/C condenser fan relay With ignition switch ON (II): battery voltage
7(2) PNK FPC (FUEL PUMP CONTROL) Detects fuel pump control signal With ignition switch ON (II): pulses
With ignition switch OFF: about 0 V
8 WHT/BLK BKSW (BRAKE PEDAL POSITION SWITCH) Detects brake pedal position switch signal With brake pedal released: about 0 V
With brake pedal pressed: battery voltage
9 BRN/YEL BKSWNC (BRAKE PEDAL POSITION SWITCH) Detects brake pedal position switch signal With ignition switch ON (II) and brake pedal released: battery voltage
With ignition switch ON (II) and brake pedal pressed: about 0 V
10 LT GRN/RED VSV (EVAPORATIVE EMISSION (EVAP) CANISTER VENT SHUT VALVE) Drives EVAP canister vent shut valve With ignition switch ON (II): battery voltage
11 LT BLU VSSOUT (VEHICLE SPEED SENSOR OUTPUT SIGNAL) Sends vehicle speed signal Depending on vehicle speed: pulses
12 YEL/WHT VCC4 (SENSOR VOLTAGE) Provides sensor voltage With ignition switch ON (II): about 5.0 V
With ignition switch OFF: about 0 V
13(1) WHT/BLU SDN (DOWNSHIFT SWITCH) Detects downshift switch signal In M position and shift lever pushed toward downshift position: about 0 V
In M position and shift lever in neutral position: battery voltage
15 WHT CANH (CAN COMMUNICATION SIGNAL HIGH) Sends communication signal With ignition switch ON (II): pulses
16 BRN SCS (SERVICE CHECK SIGNAL) Detects service check signal With the service check signal shorted with the HDS: about 0 V
With the service check signal opened: about 5.0 V
17 GRY PSPSW (POWER STEERING PRESSURE SWITCH SIGNAL) Detects PSP switch signal At idle with steering wheel in straight ahead position: about 0 V
At idle with steering wheel at full lock: battery voltage
(1) A/T
(2) J35A8 engine

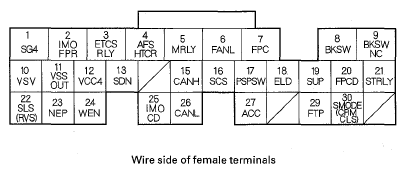

Fig 1: Identifying ECM/PCM Inputs And Outputs At Connector E (31P) Terminals
G05457887Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Standard battery voltage is about 12 V.
TERMINALS REFERENCE CHART

Terminal number Wire color Terminal name Description Signal
18 WHT ELD (ELECTRICAL LOAD DETECTOR (ELD)) Detects ELD signal With ignition switch ON (II): about 0.1-4.8 V (depending on electrical load)
19(1) BRN/WHT SUP (UPSHIFT SWITCH) Detects upshift switch signal In M position and shift lever pushed toward upshift position: about 0 V
In M position and shift lever in neutral position: battery voltage
20(3) LT BLU FPCD (FUEL PUMP CONTROL MODULE DIAGNOSIS) Detect fuel pump control module diagnosis With ignition switch ON (II): about 0 V
At idle: about 10.0 V
21(1) BLU/GRN STRLY (STARTER CUT RELAY) Drives starter cut relay 2 With ignition switch ON (II): about 0 V
22(1) YEL/BLK SLS (SHIFT LOCK SOLENOID) Drives shift lock solenoid With ignition switch ON (II), in P position, brake Pedal pressed, and accelerator released: about 0 V
22(2) WHT RVS (REVERSE LOCKOUT SOLENOID) Drives reverse lockout solenoid With vehicle speed below 9 mph (15 km/h): battery voltage
With vehicle speed above 12 mph (20 km/h): about 0 V
23 WHT/GRN NEP (ENGINE SPEED PULSE) Outputs engine speed pulse With engine running: pulses
24 RED/WHT WEN (WRITE ENABLE SIGNAL) Detects write enable signal With ignition switch ON (II): about 0 V
25 YEL IMOCD (IMMOBILIZER CODE) Detects immobilizer signal
26 RED CANL (CAN COMMUNICATION SIGNAL LOW) Sends communication signal With ignition switch ON (II): pulses
27 RED ACC (A/C COMPRESSOR CLUTCH RELAY) Drives A/C compressor clutch relay With compressor ON: about 0 V
With compressor OFF: battery voltage
29 LT GRN FTP (FUEL TANK PRESSURE (FTP) SENSOR) Detects FTP sensor signal With ignition switch ON (II) and fuel fill cap removed: about 2.5 V
30(1) ORN SMODE (SEQUENTIAL SPORT SHIFT MODE) Detects sequential sport shift mode switch signal In M position: about 0 V
In any other than M: battery voltage
30(2) LT BLU CRMCLS (CRUISE CLUTCH PEDAL POSITION SIGNAL) Detects clutch pedal position switch signal With ignition switch ON (II) and clutch pedal pressed: about 0 V
With ignition switch ON (II) and clutch pedal released: battery voltage
(1) A/T
(2) M/T
(3) J35A8 engine
