Dual Mode Control System

All modes (except defroster) can be controlled independently.

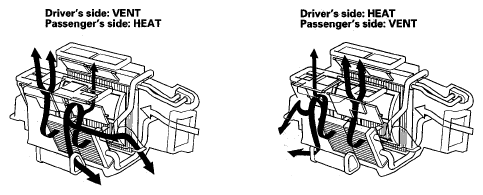

Fig 1: Dual Mode Control System Diagram
G05462384Courtesy of AMERICAN HONDA MOTOR CO., INC.
