Motor Test

  1. Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector (A) from the lumbar support motor.
    Fig 1: Identifying 2P Connector From Lumbar Support Motor
    G05462870
  3. Test each motor by applying battery voltage and body ground to the terminals.

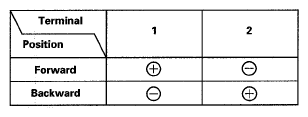

    Fig 2: Voltage Terminals Chart
    G05462871
  4. If the motor does not run or fails to run smoothly, replace it (see FRONT SEAT LUMBAR SUPPORT REPLACEMENT ).
