Switch Test/Replacement

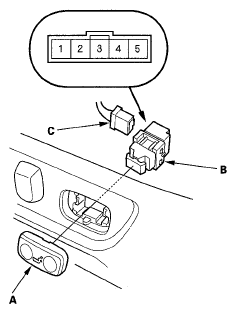

  1. Separate the lumbar support switch cover (A) from the switch (B).
    Fig 1: Identifying Lumbar Support Switch Cover From Switch
    G05462868
  2. Disconnect the 5P connector (C) from the switch.
  3. Check for continuity between the terminals in each switch position according to the table.
    Fig 2: Terminals Continuity Reference Chart
    G05462869
  4. If the continuity is not as specified, replace the switch.
