Air Cleaner Removal/Installation

  1. Remove the bolts (A) and clamps (B).

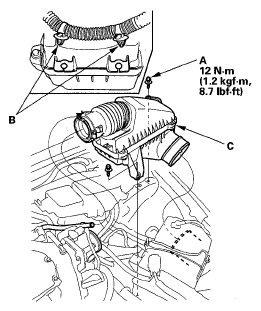

    Fig 1: Air Cleaner Bolts And Clamps With Torque Specifications
    G05458358Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (C).
  3. Install the parts in the reverse order of removal.
