Input Shaft (Mainshaft) Speed Sensor Replacement: M/T

  1. Disconnect the input shaft (mainshaft) speed sensor 3P connector (A).

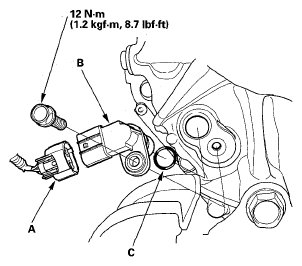

    Fig 1: Input Shaft (Mainshaft) Speed Sensor 3P Connector With Torque Specifications
    G05458141Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the input shaft (mainshaft) speed sensor (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
