Right Front Turn Signal/Parking/Side Marker Lights Connector End View

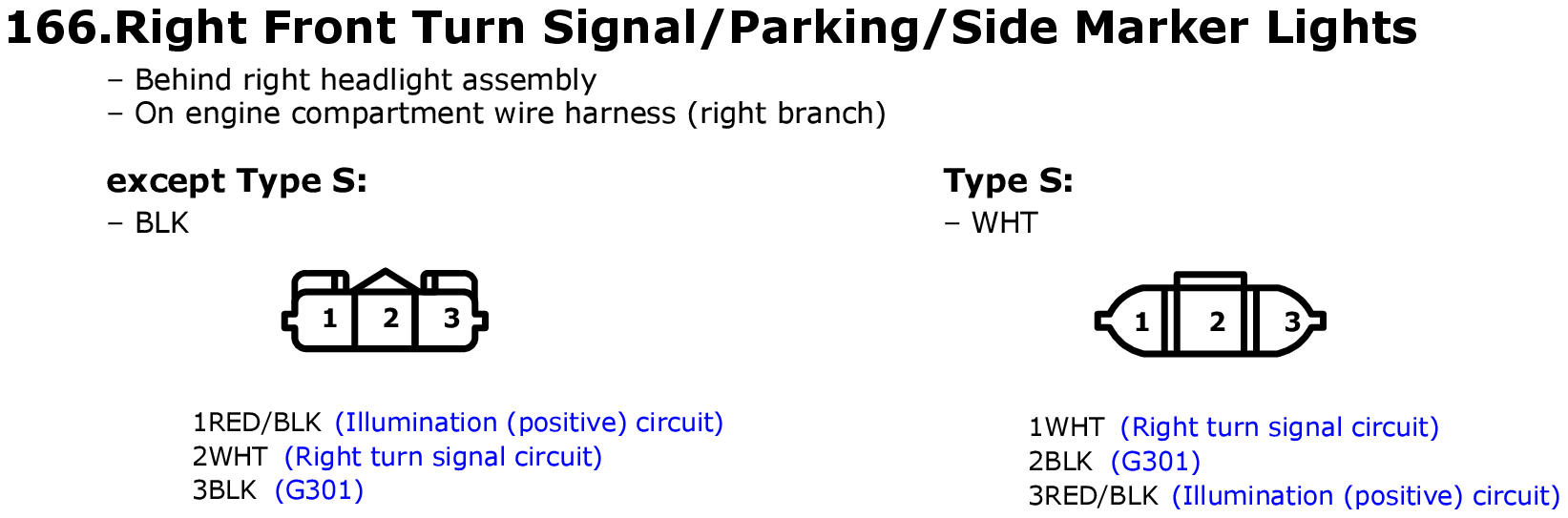

Fig 1: Right Front Turn Signal/Parking/Side Marker Lights Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
