Overhaul Specifications

Drive Plate





Tighten the eight bolts in a crisscross pattern in two or more steps.

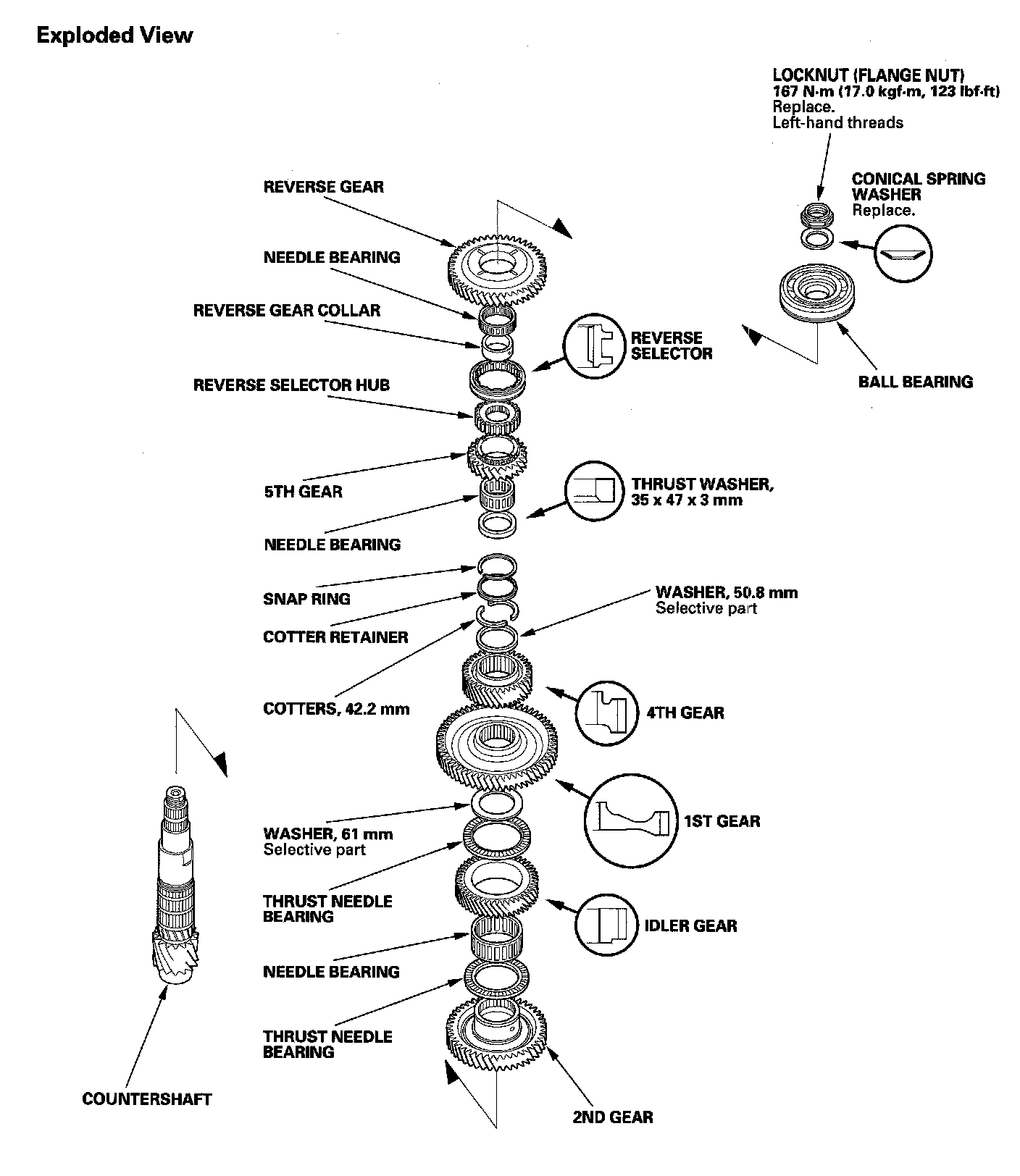

Countershaft

Countershaft:

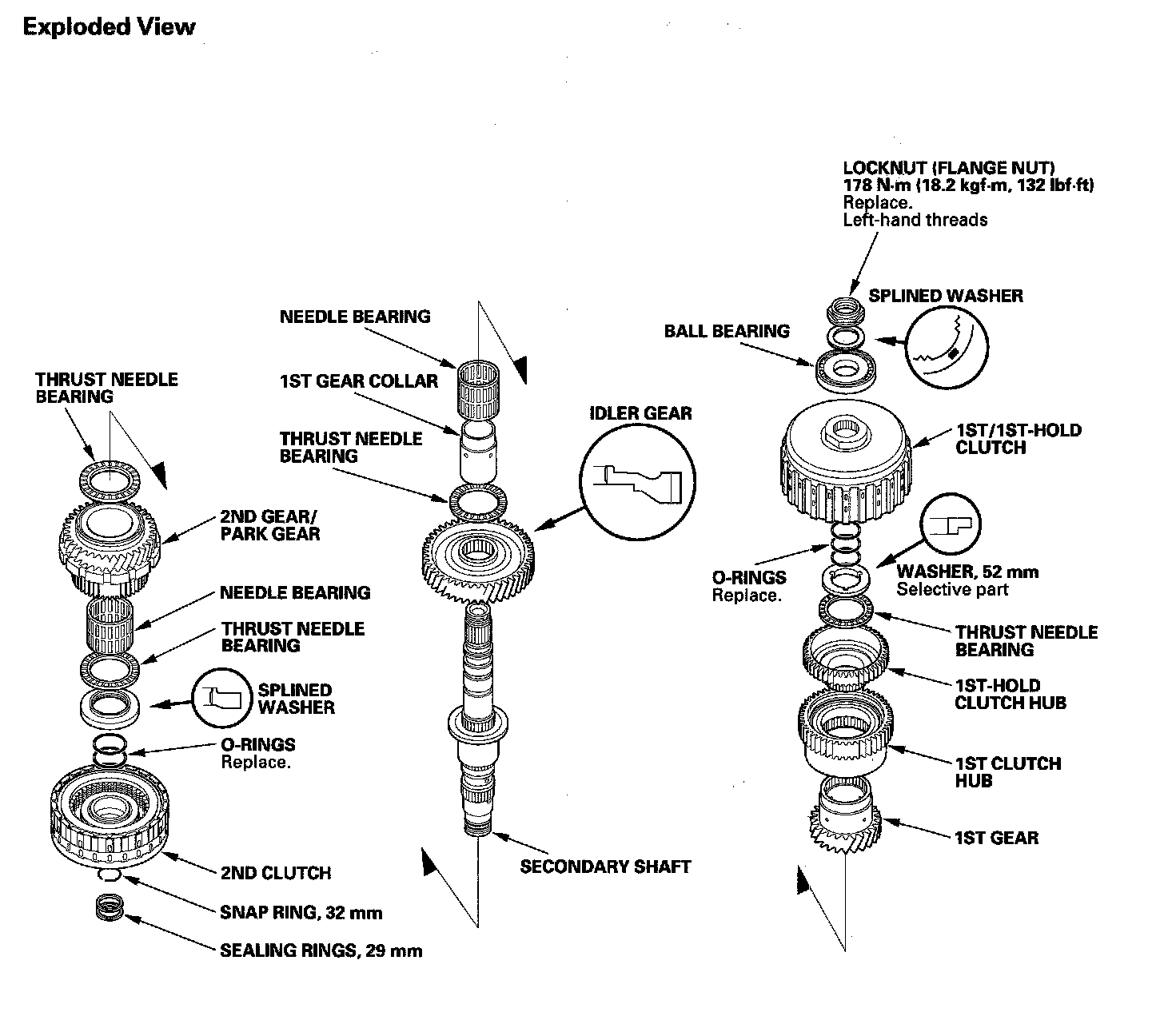

Secondary Shaft

Secondary Shaft:

For information regarding Transmission Overhaul Specifications, please refer to Service and Repair, Procedures. Service and Repair
