Park Pin Switch Test
Park Pin Switch Test1. Remove the center console.

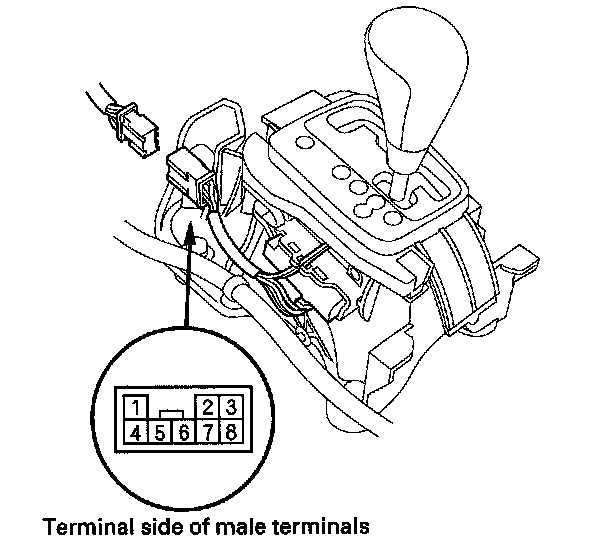

2. Disconnect the transmission gear selection switch/park pin switch/A/T gear position indicator panel light connector.
3. Shift the shift lever into the P position, then check for continuity between connector terminals No. 1 and No. 4. There should be no continuity.
4. Shift out of the P position, and check for continuity between terminals No. 1 and No. 4. There should be continuity.
5. If the park pin switch is faulty, replace it.
6. Install the center console.
