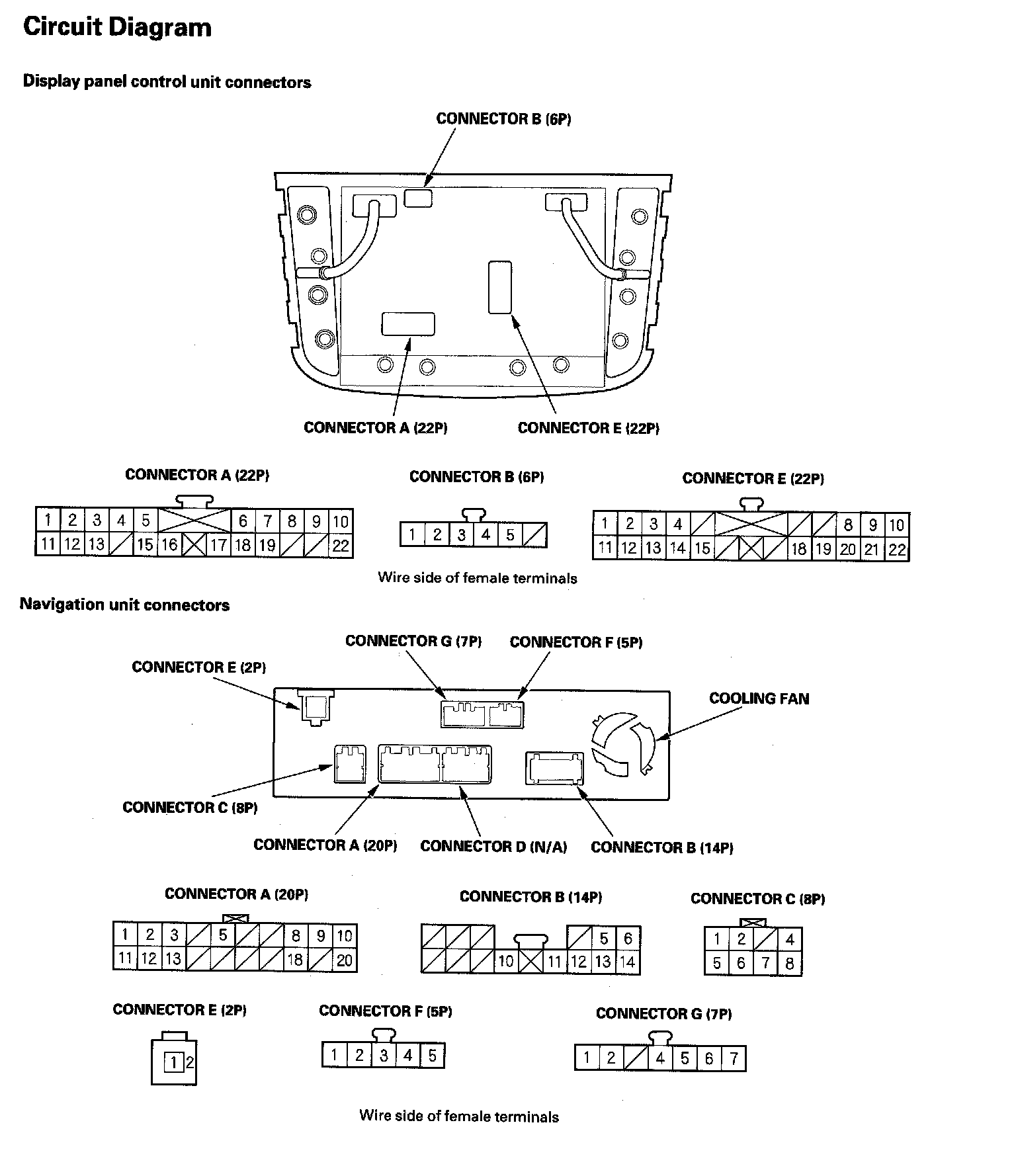

System Diagram

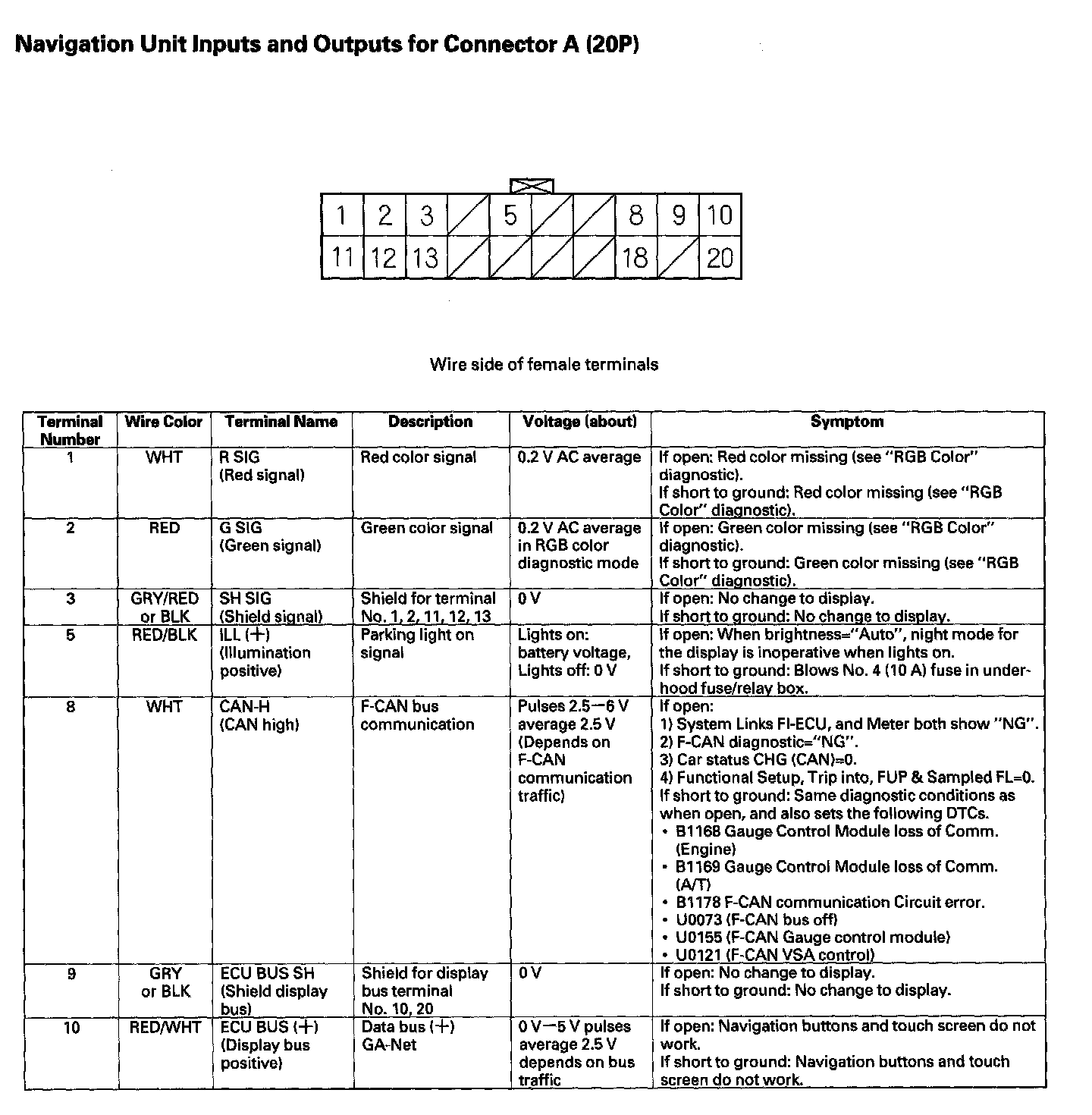

Navigation Unit Inputs And Outputs For Connector A (20P) Part 1:

Navigation Unit Inputs And Outputs For Connector A (20P) Part 2:

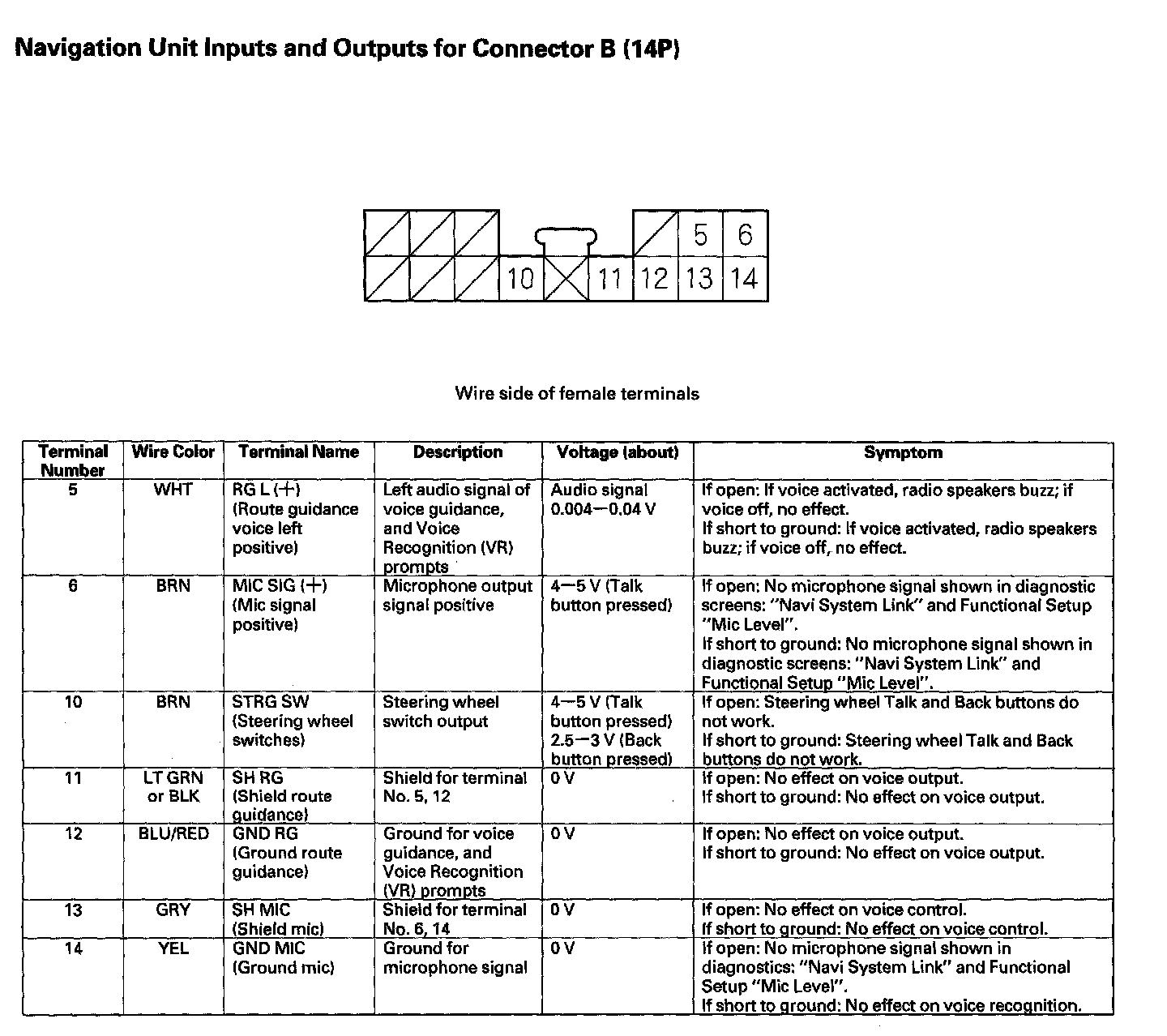

Navigation Unit Inputs And Outputs For Connector B (14P):

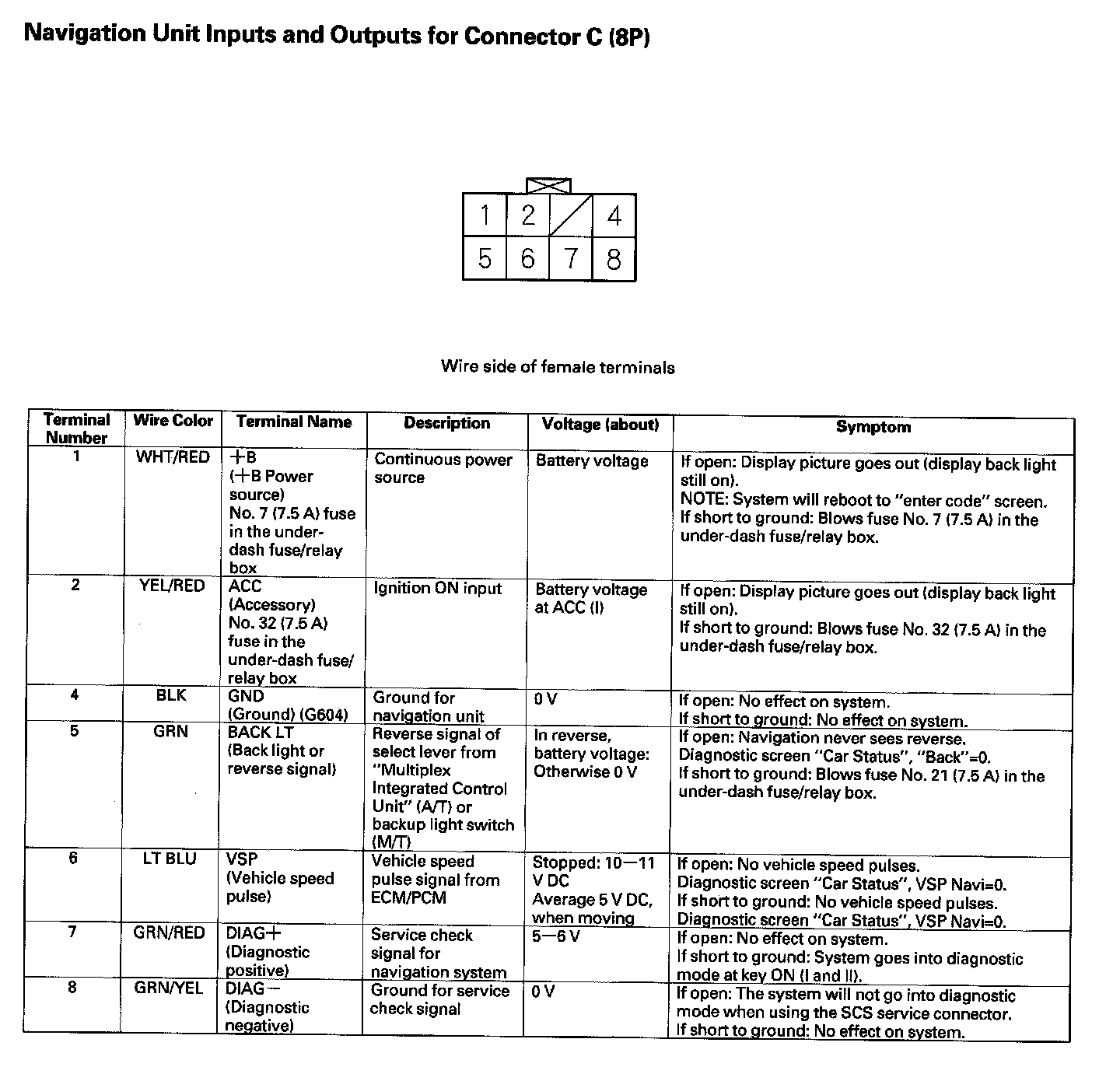

Navigation Unit Inputs And Outputs For Connector C (8P):

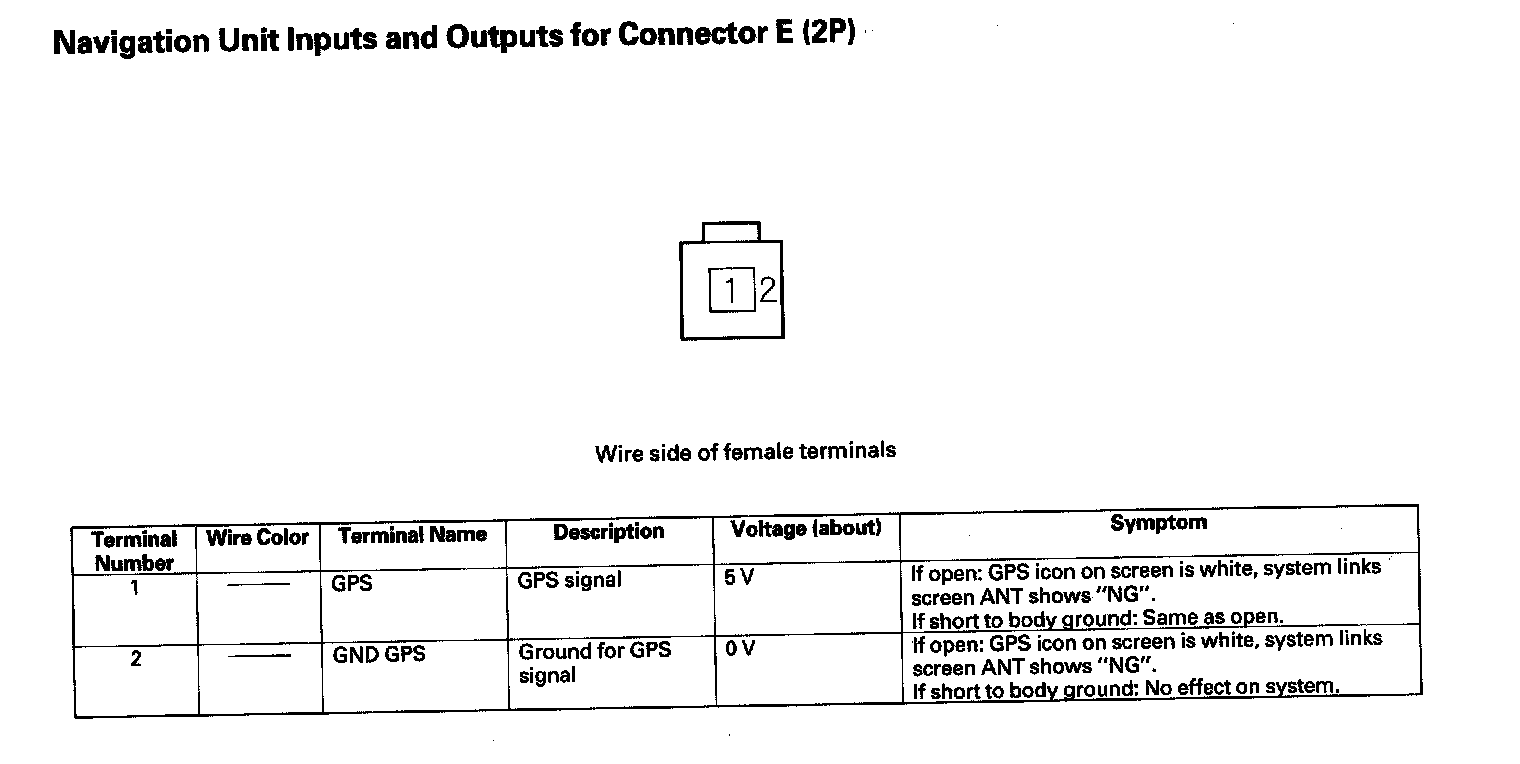

Navigation Unit Inputs And Outputs For Connector E (2P):

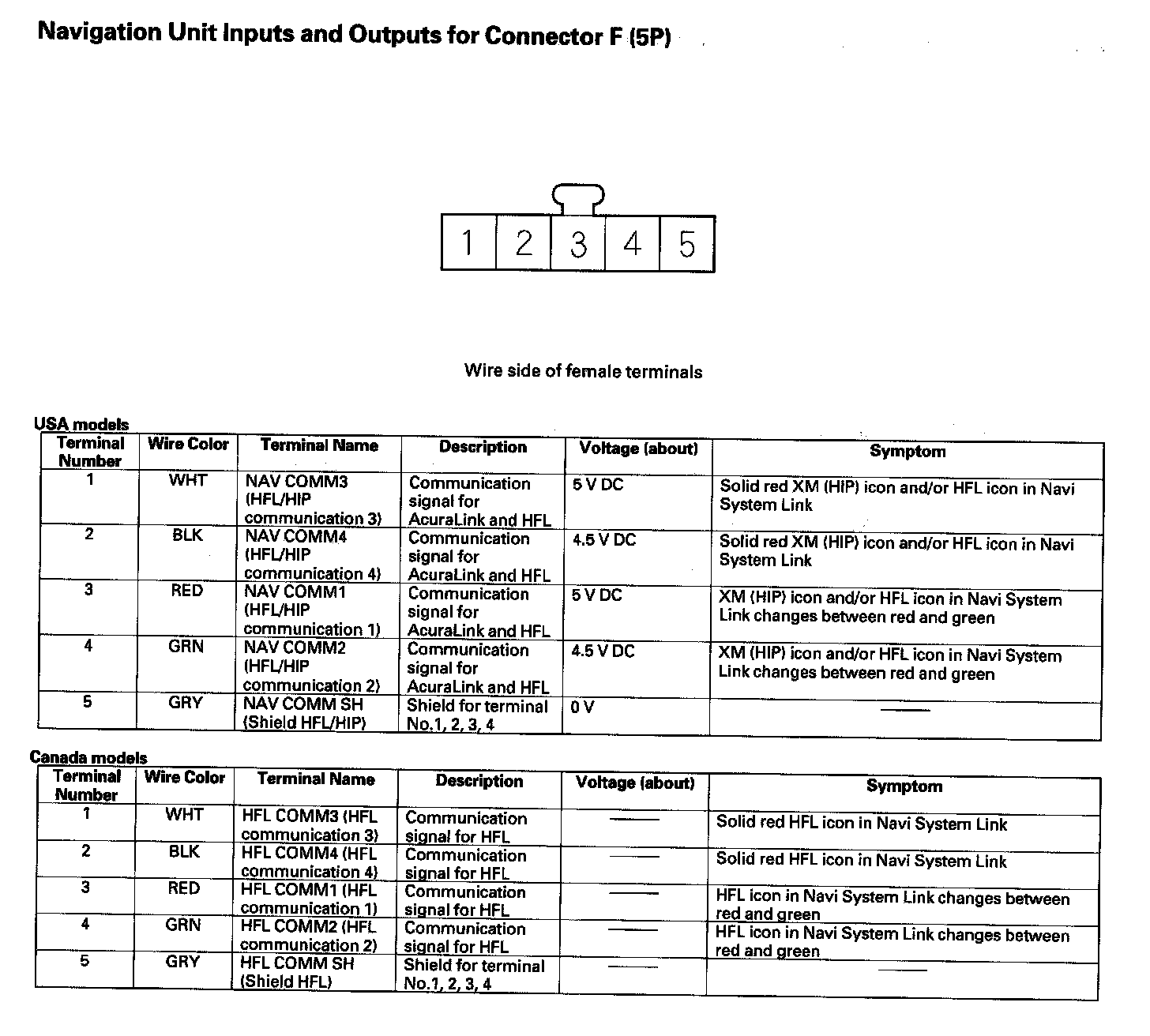

Navigation Unit Inputs And Outputs For Connector F (5P):

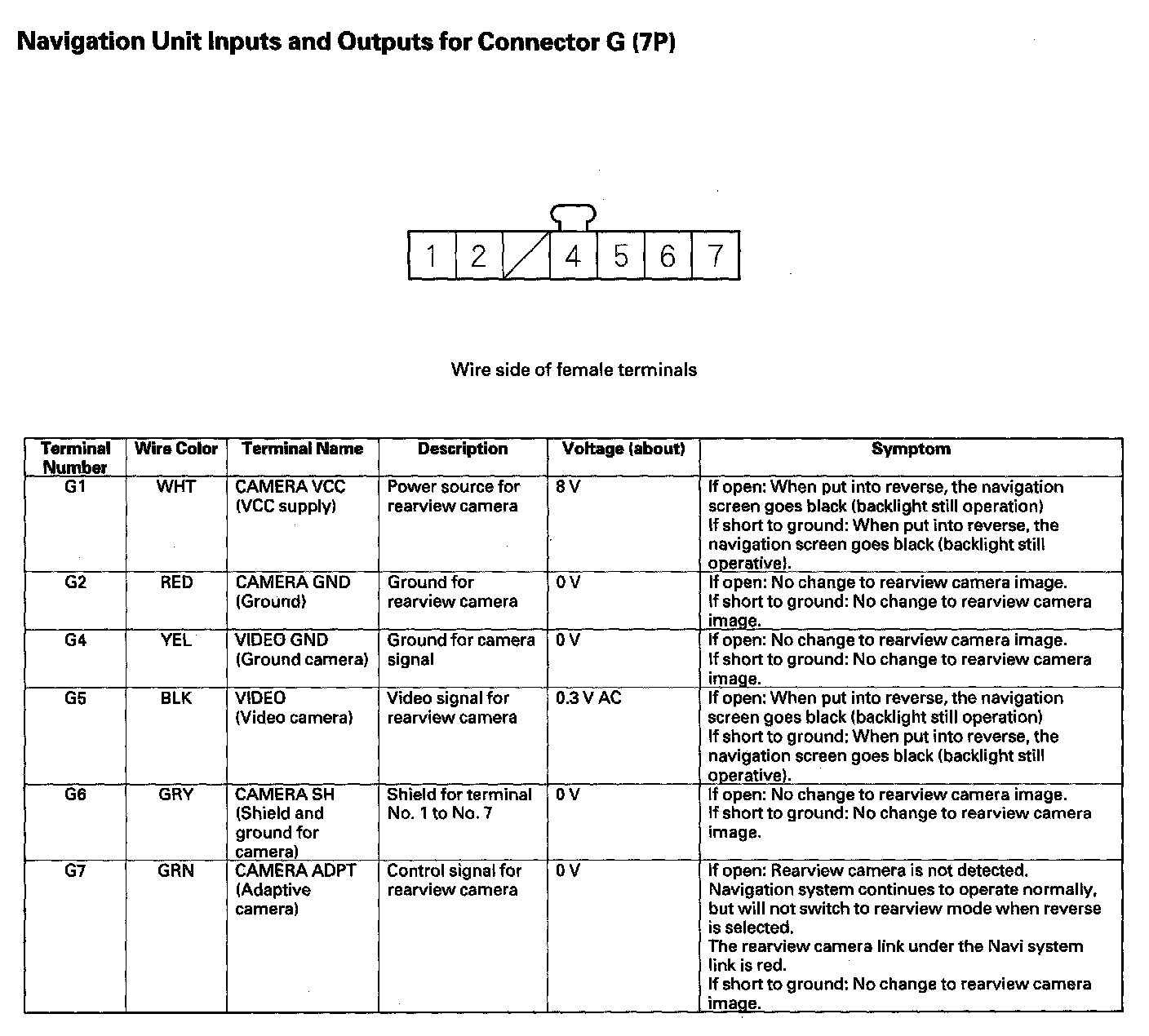

Navigation Unit Inputs And Outputs For Connector G (7P):

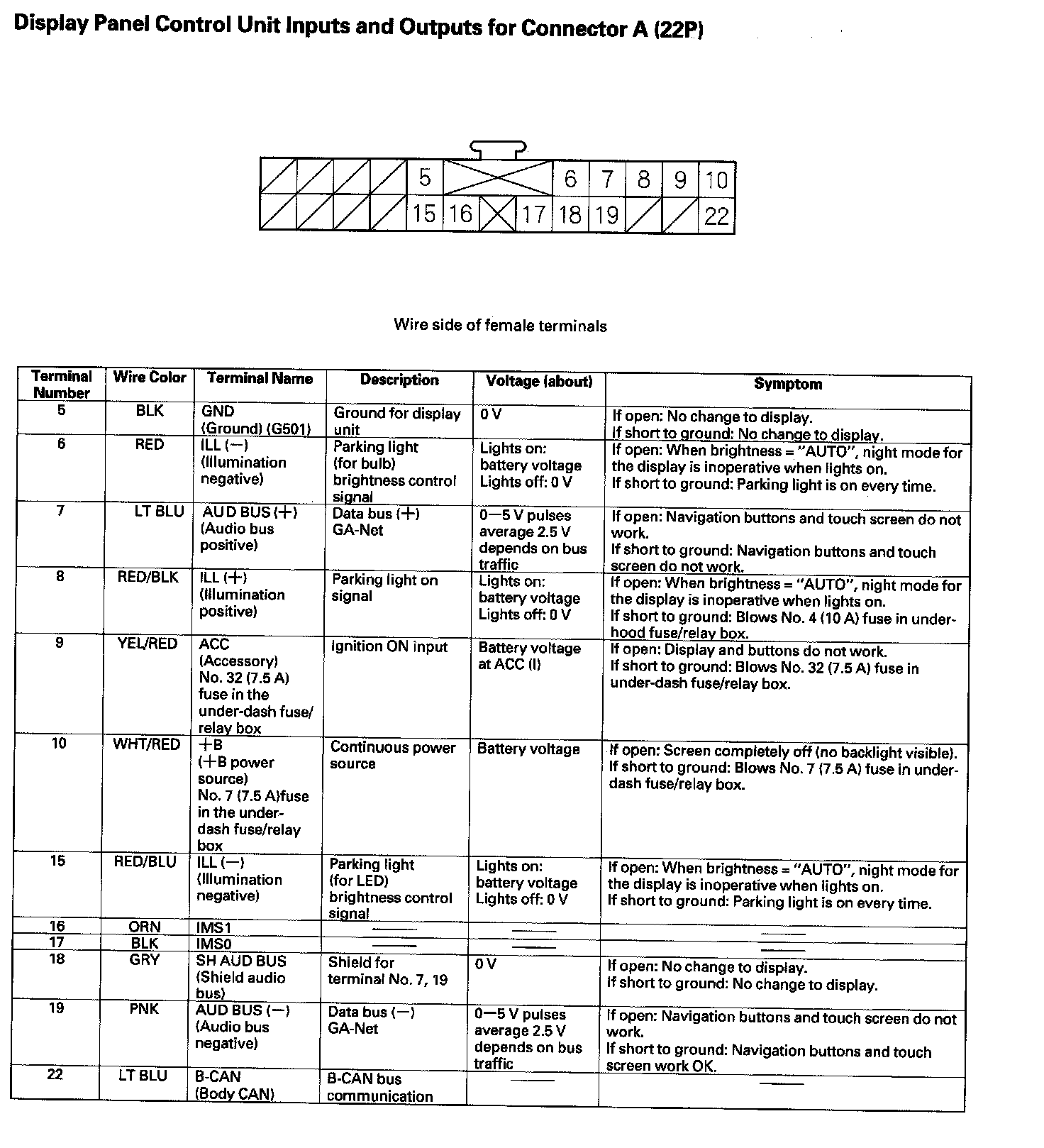

Display Panel Control Unit Inputs And Outputs For Connector A (22P):

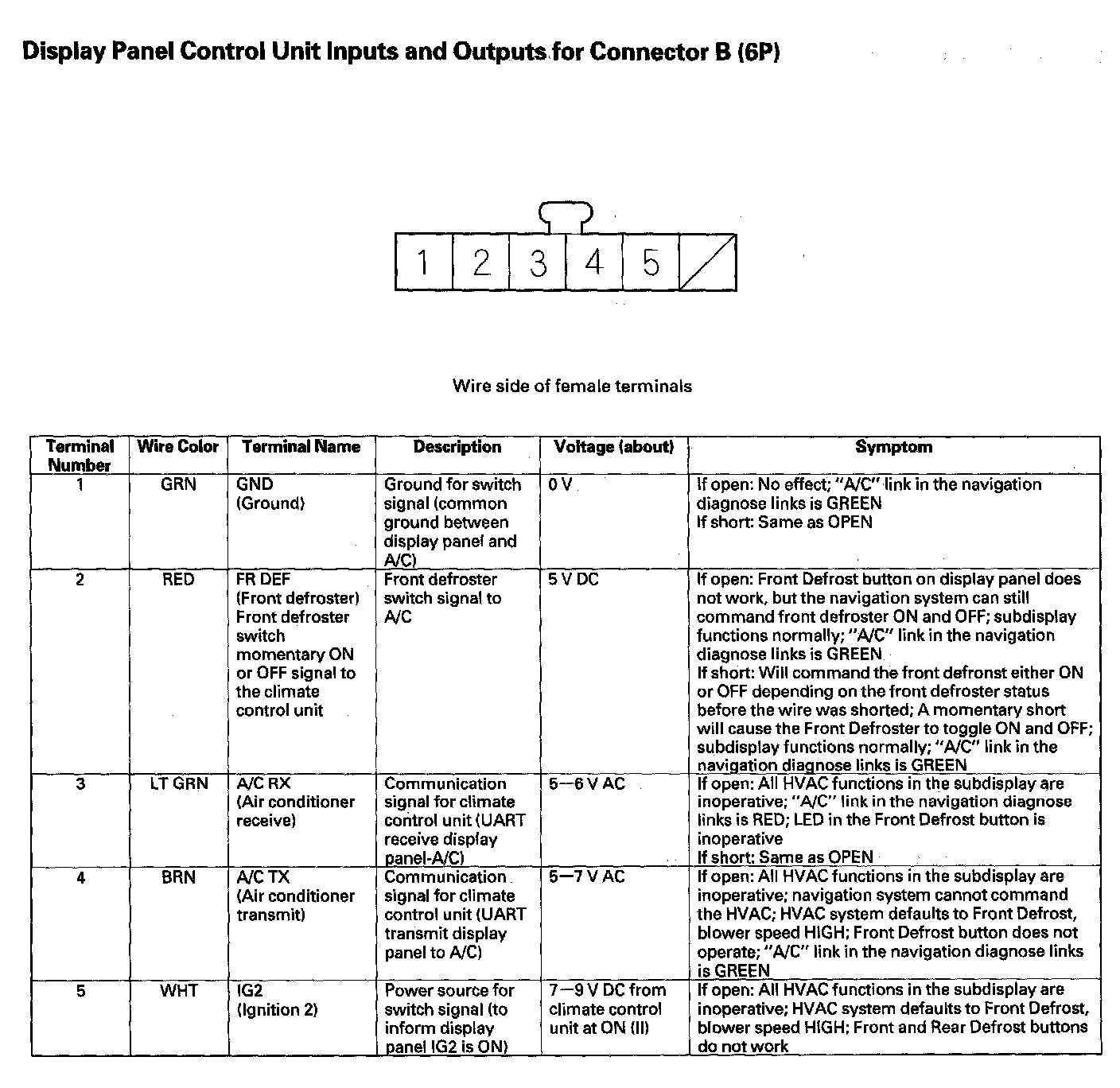

Display Panel Control Unit Inputs And Outputs For Connector B (6P):

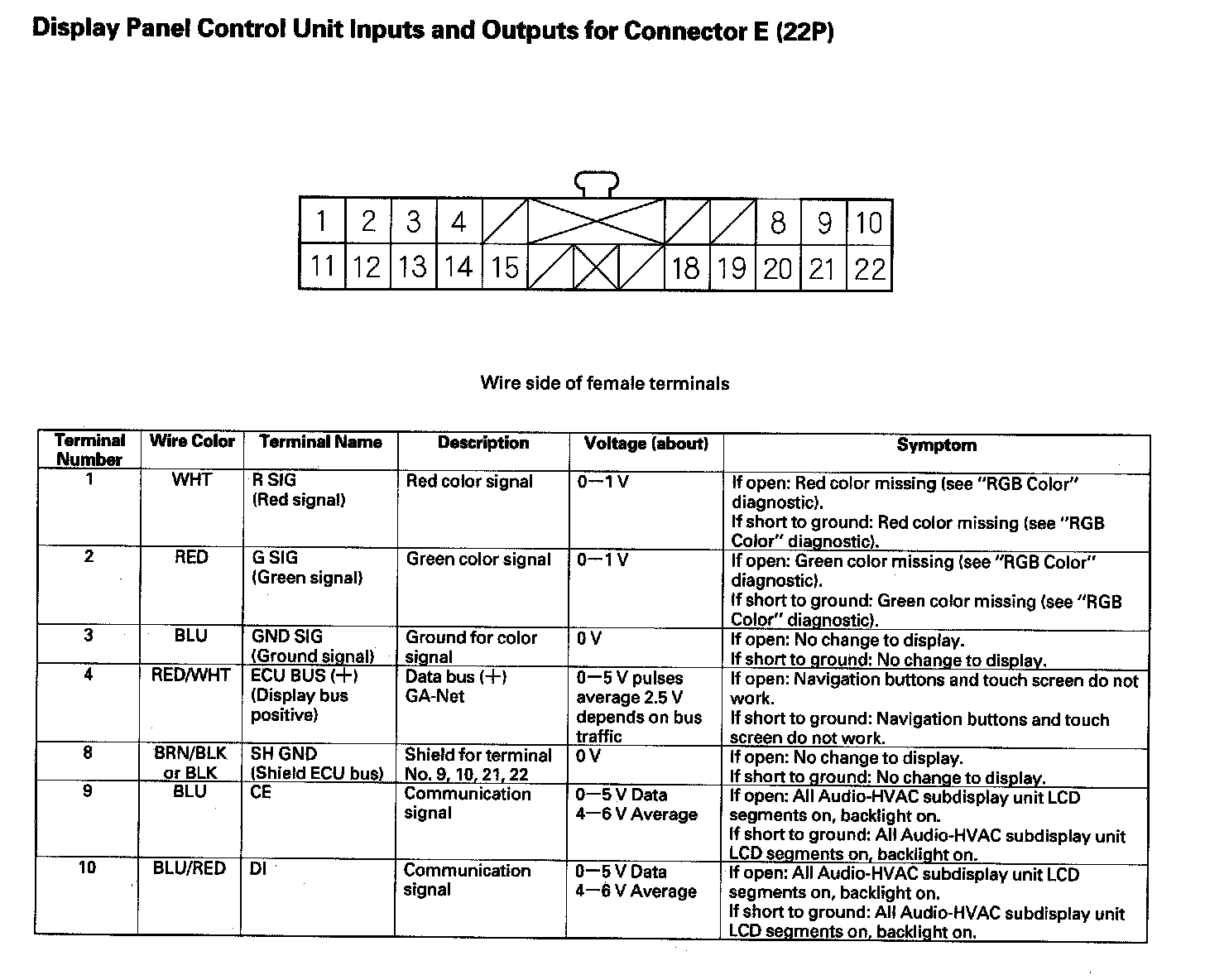

Display Panel Control Unit Inputs And Outputs For Connector E (22P) Part 1:

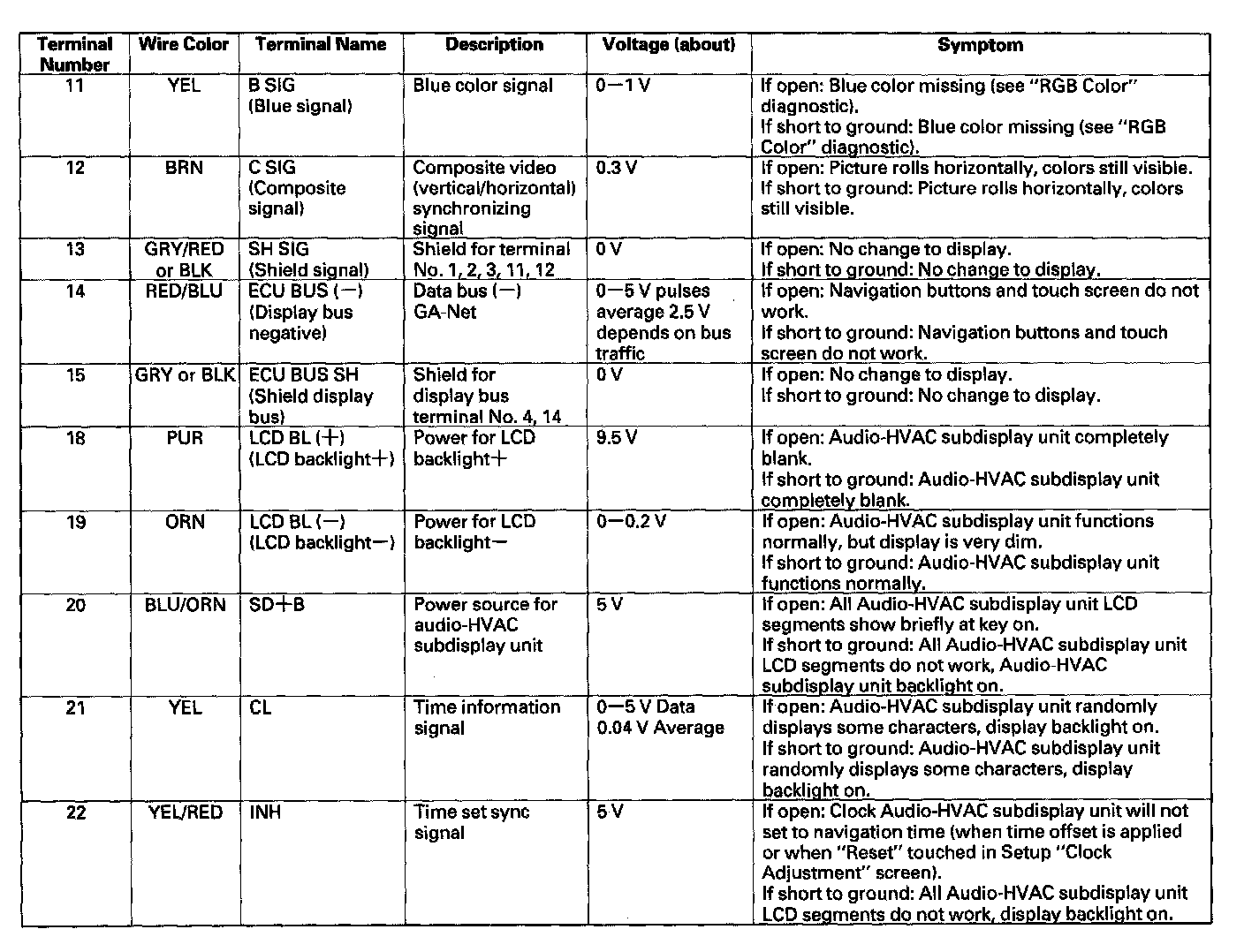

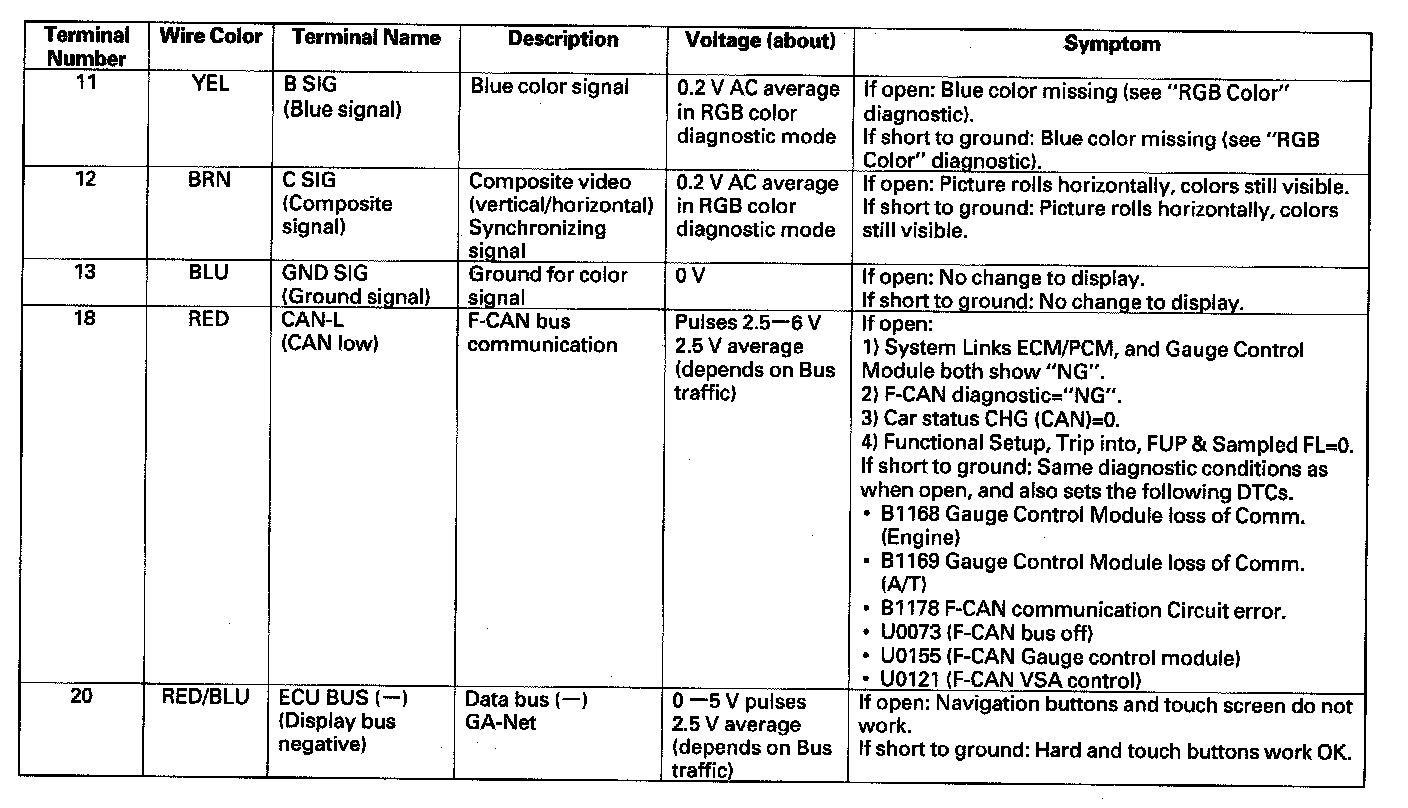

Display Panel Control Unit Inputs And Outputs For Connector E (22P) Part 2:

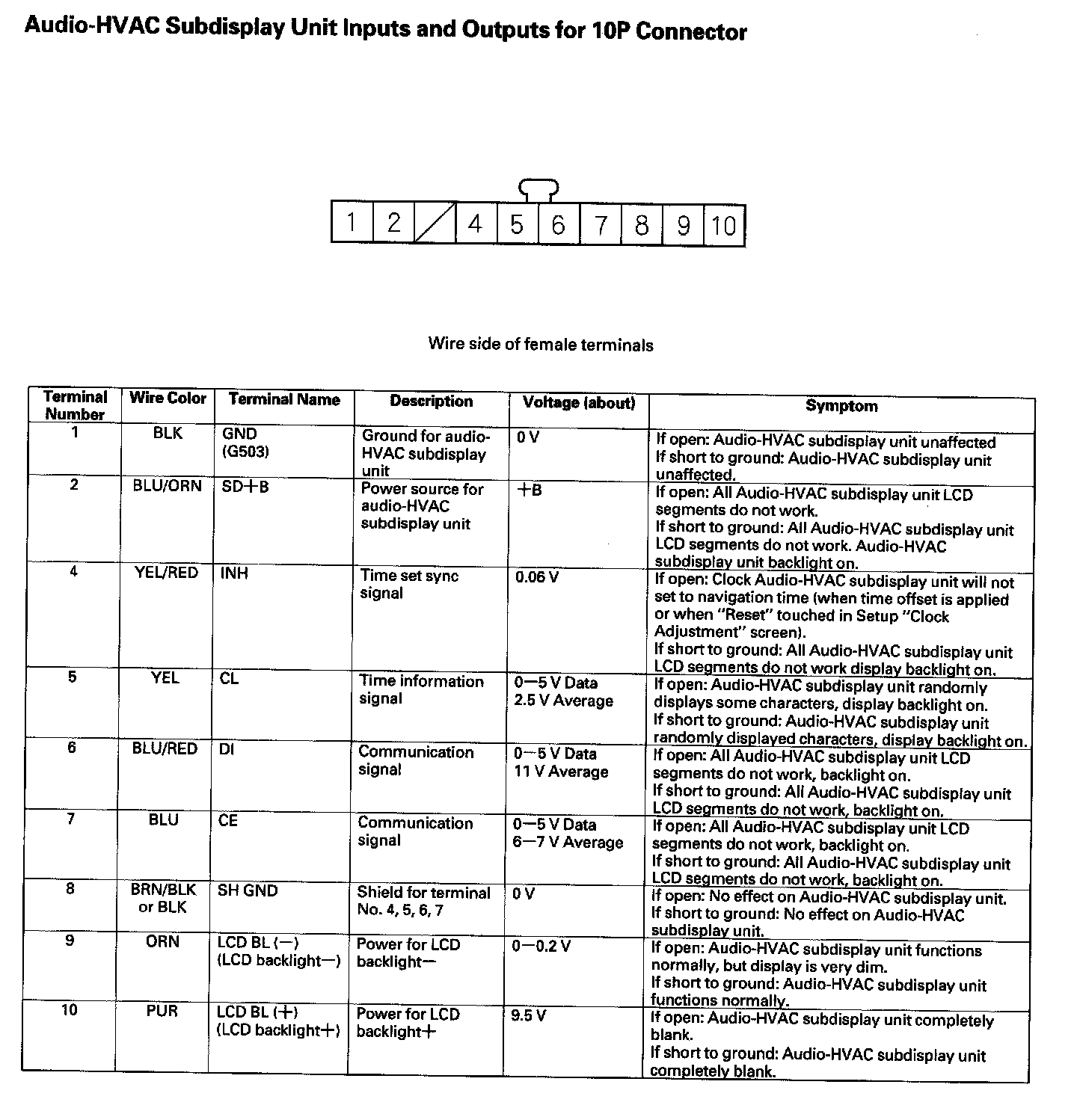

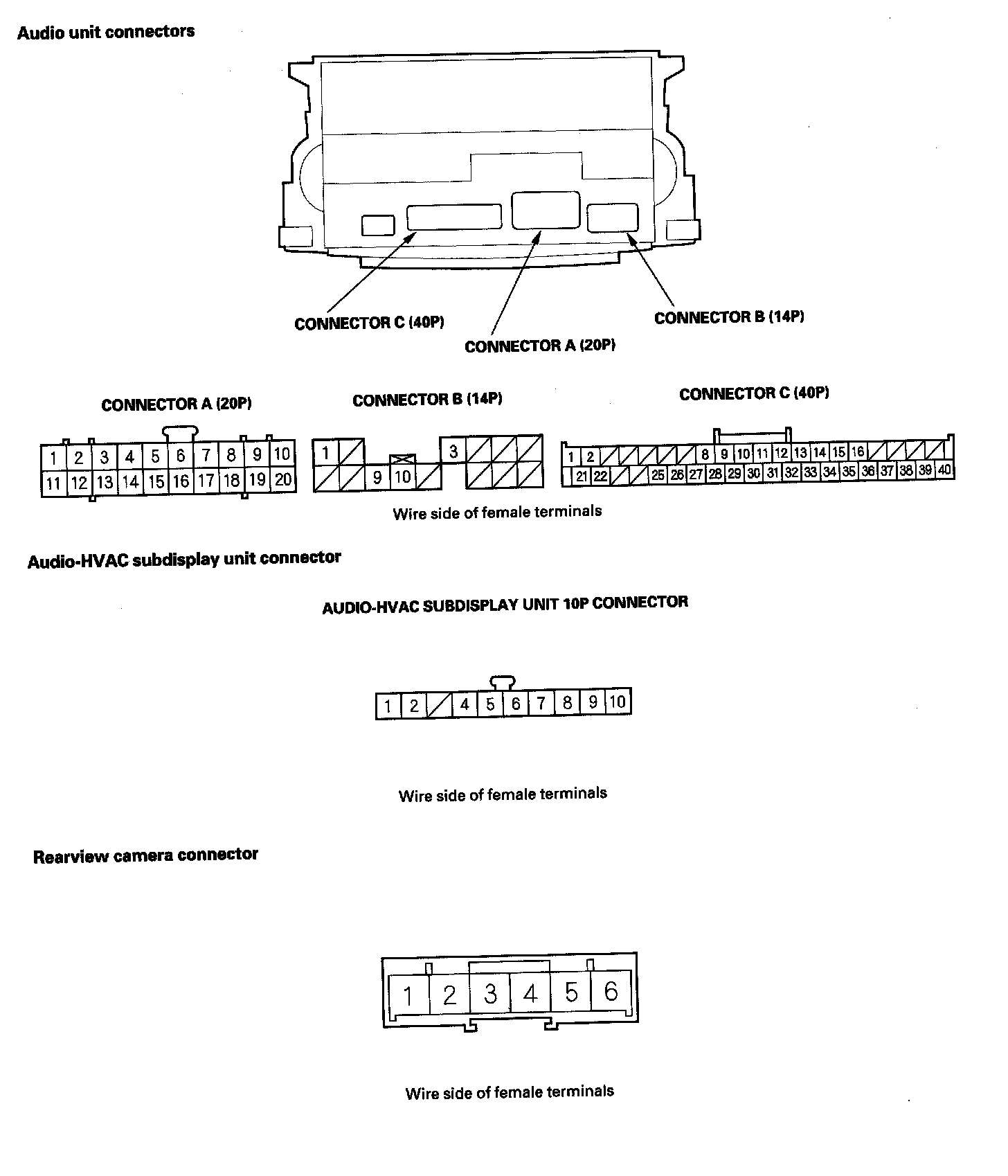

Audio-HVAC Subdisplay Unit Inputs And Outputs For 10P Connector:

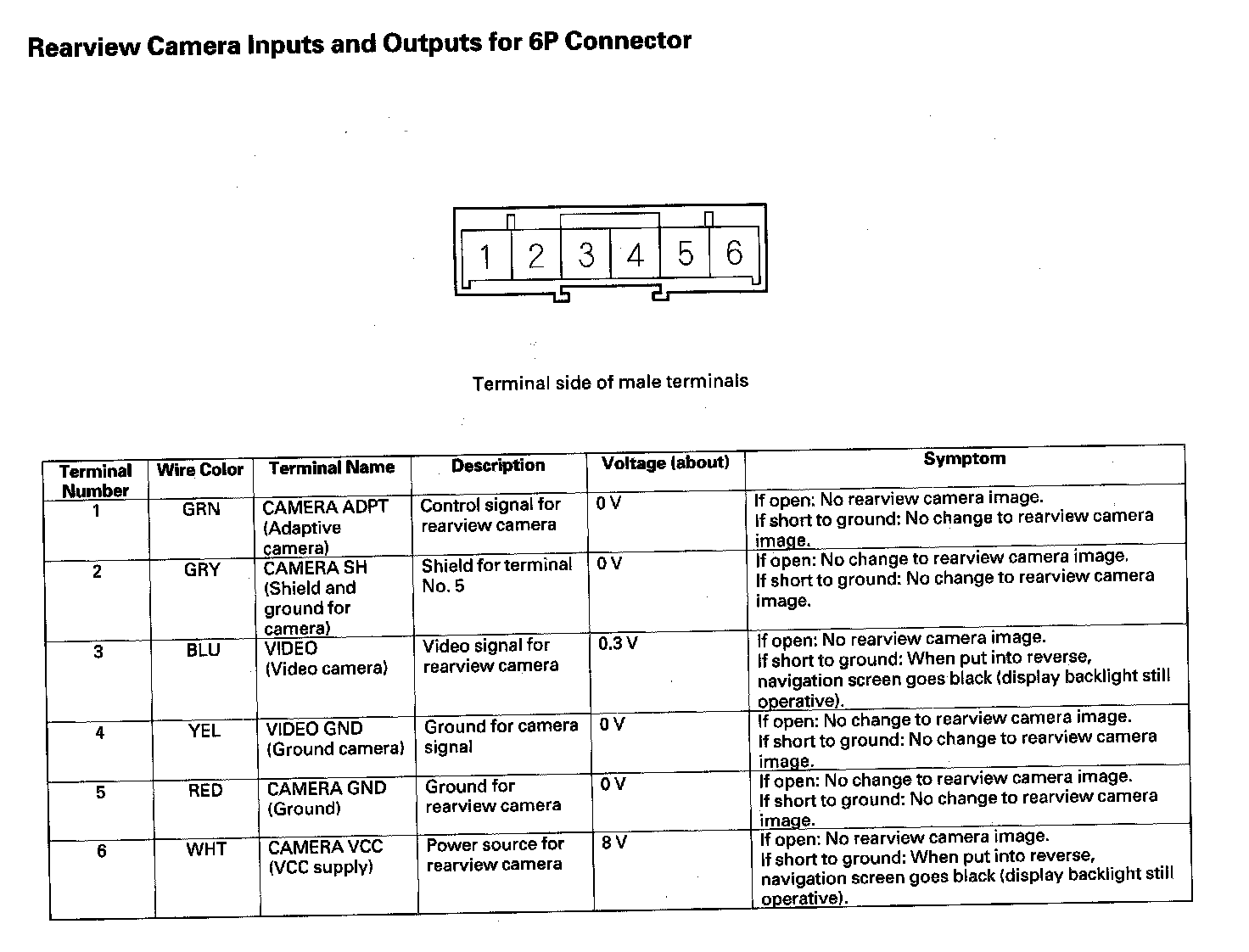

Rearview Camera Inputs And Outputs For 6P Connector:

Navigation System Circuit Diagram Part 5:

Navigation System Circuit Diagram Part 6:

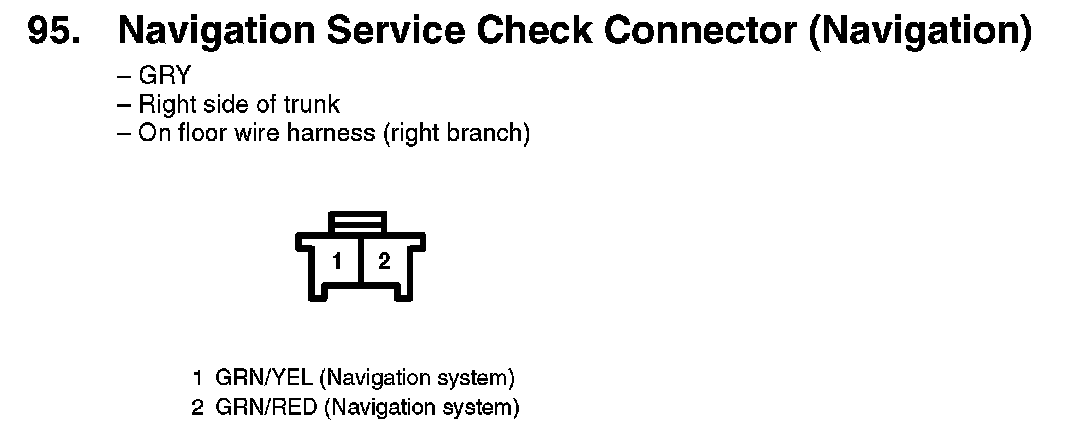

95. Navigation Service Check Connector (Navigation):
