Circuit Diagram - PCM A/T Control System '07-08 Models

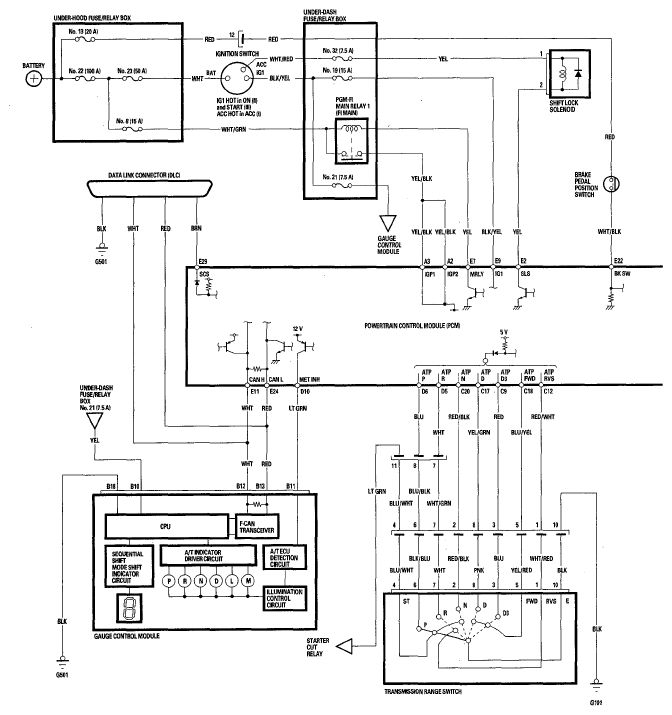

Fig 1: PCM A/T Control System Circuit Diagram '07-08 Models (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

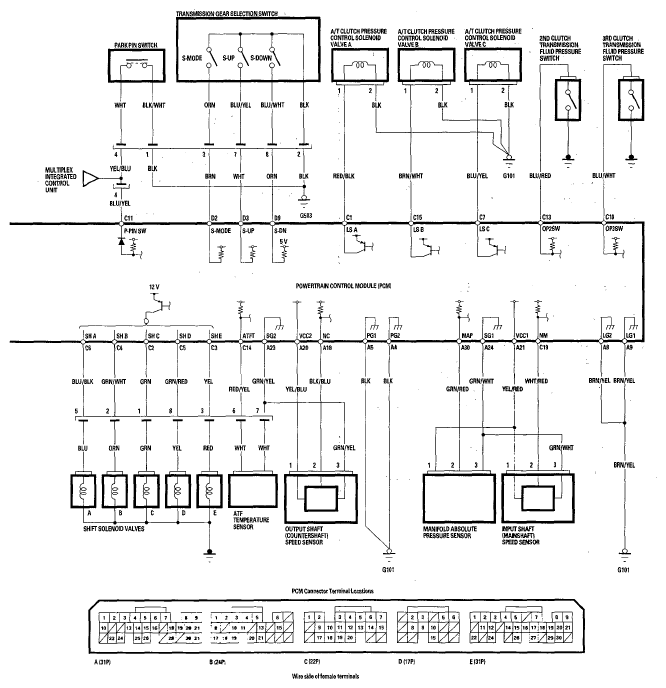

Fig 2: PCM A/T Control System Circuit Diagram '07-08 Models (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
