Rocker Arm Oil Control Valve (VTEC Solenoid Valve) Removal/Installation

  1. Disconnect the rocker arm oil control solenoid (VTEC solenoid valve) 2P connector (A) and the rocker arm oil pressure switch (VTEC oil pressure switch) 2P connector (B).

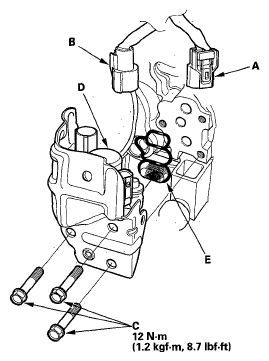

    Fig 1: Rocker Arm Oil Control Solenoid And 2P Connector w/Torque Specification
    G05490742Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolts (C).
  3. Remove the rocker arm oil control valve (VTEC solenoid valve) (D).
  4. Install the parts in the reverse order of removal with a new solenoid valve filter (E).
