Navigation System Circuit Diagram

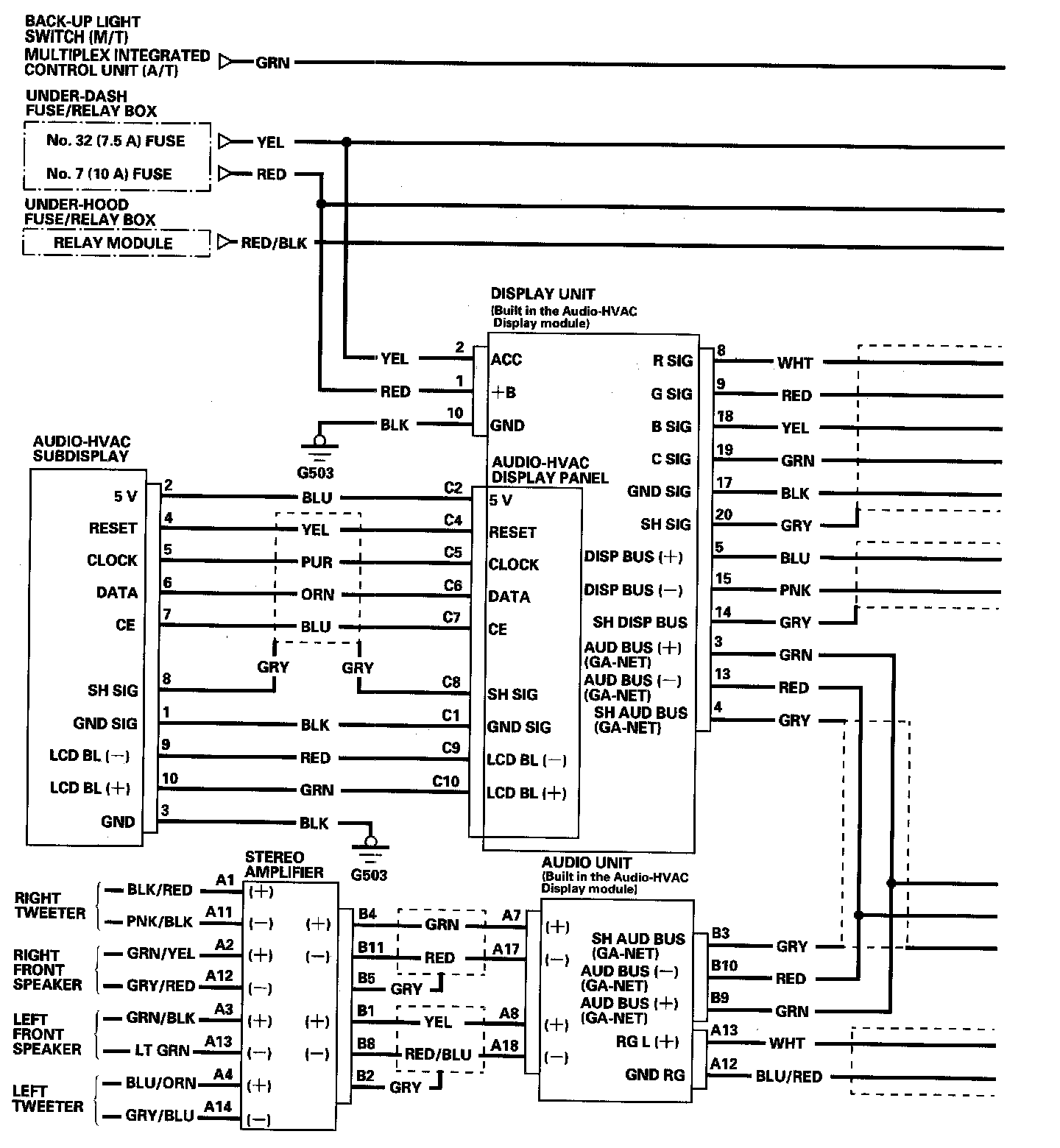

Navigation System (06-07 Models) Circuit Diagram Part 1:

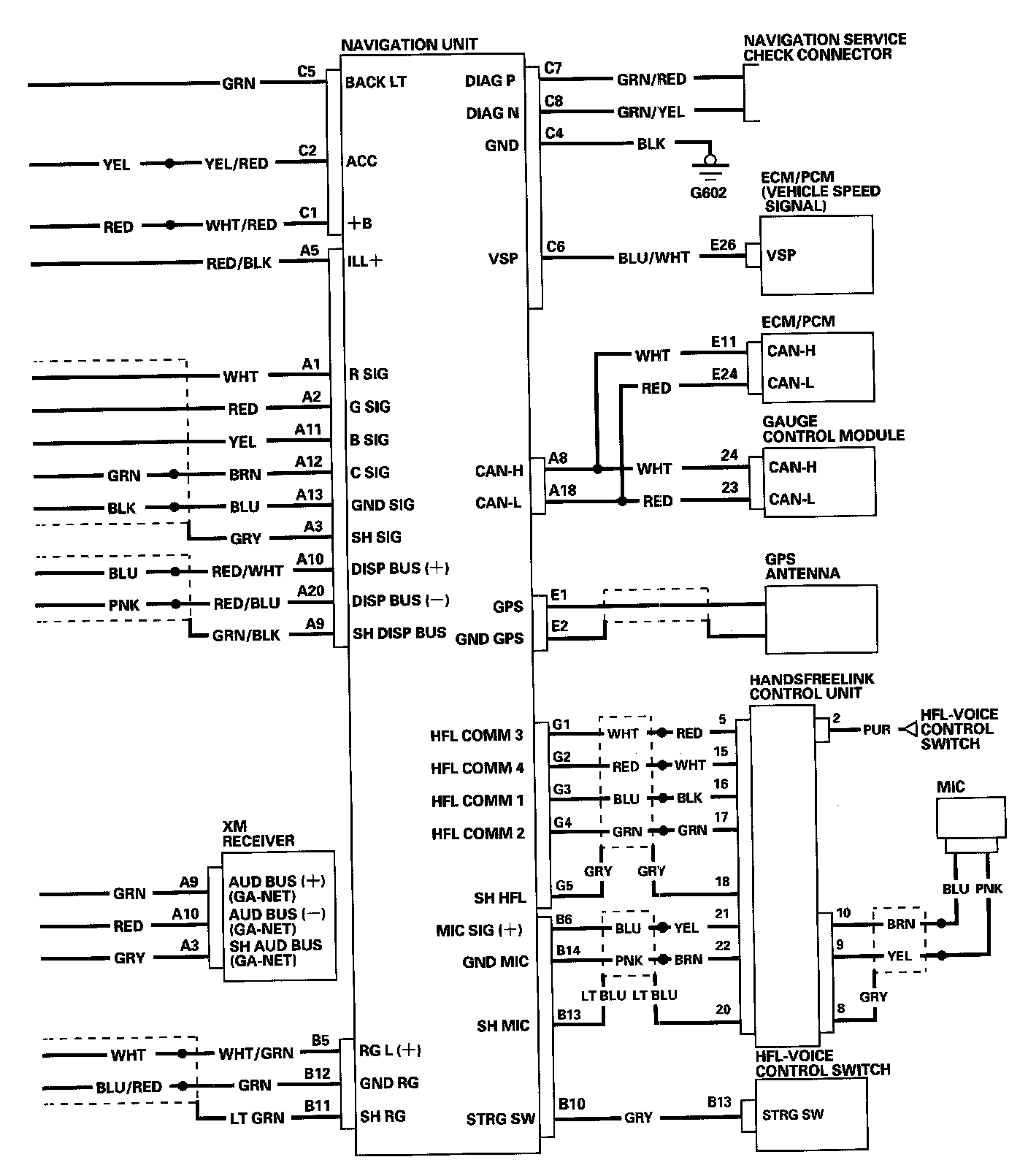

Navigation System (06-07 Models) Circuit Diagram Part 2:



Navigation System Circuit Diagram Part 3:



Navigation System Circuit Diagram Part 4:



Navigation System Circuit Diagram Part 5:
