Component Locations

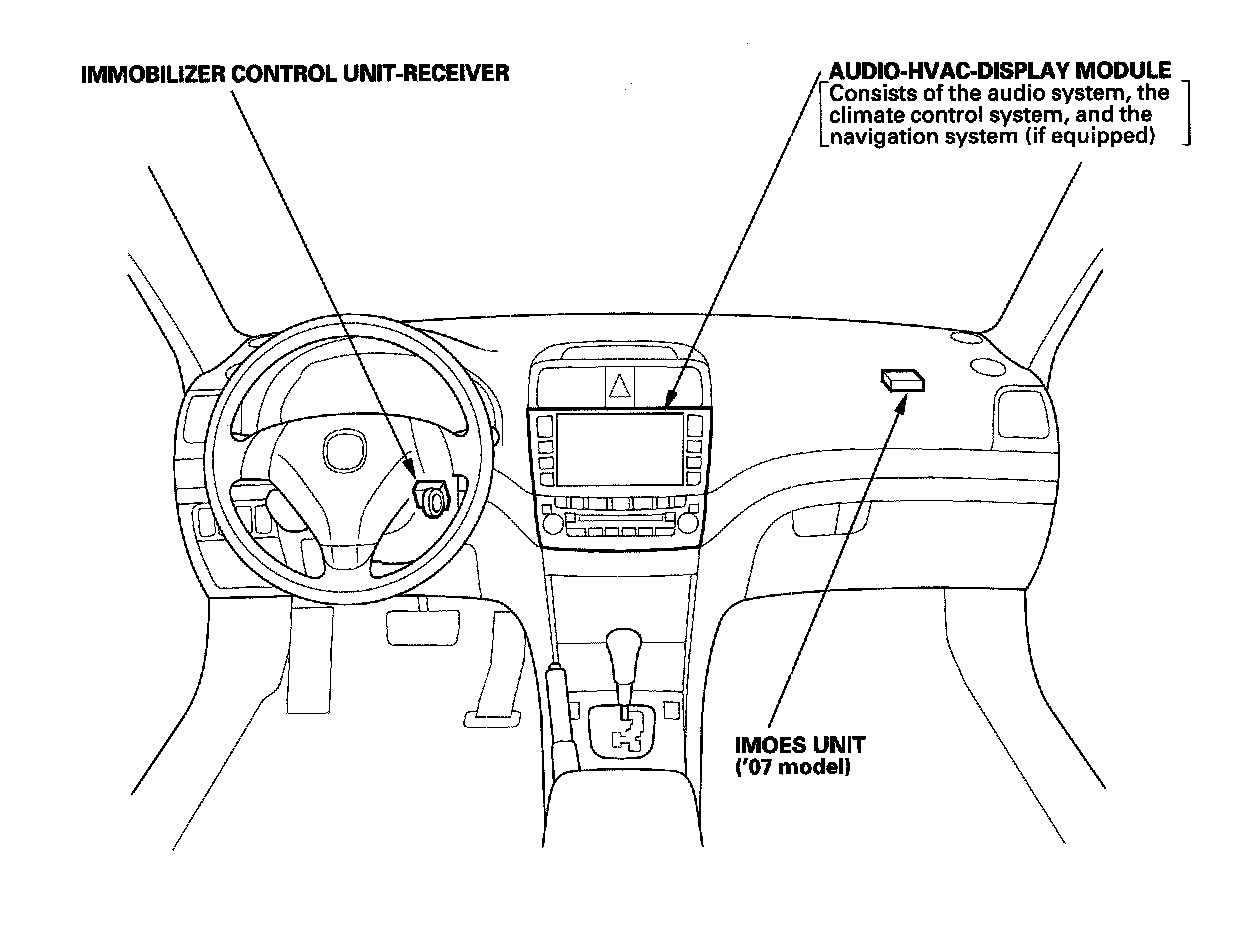

Relay And Control Unit Locations Dashboard:

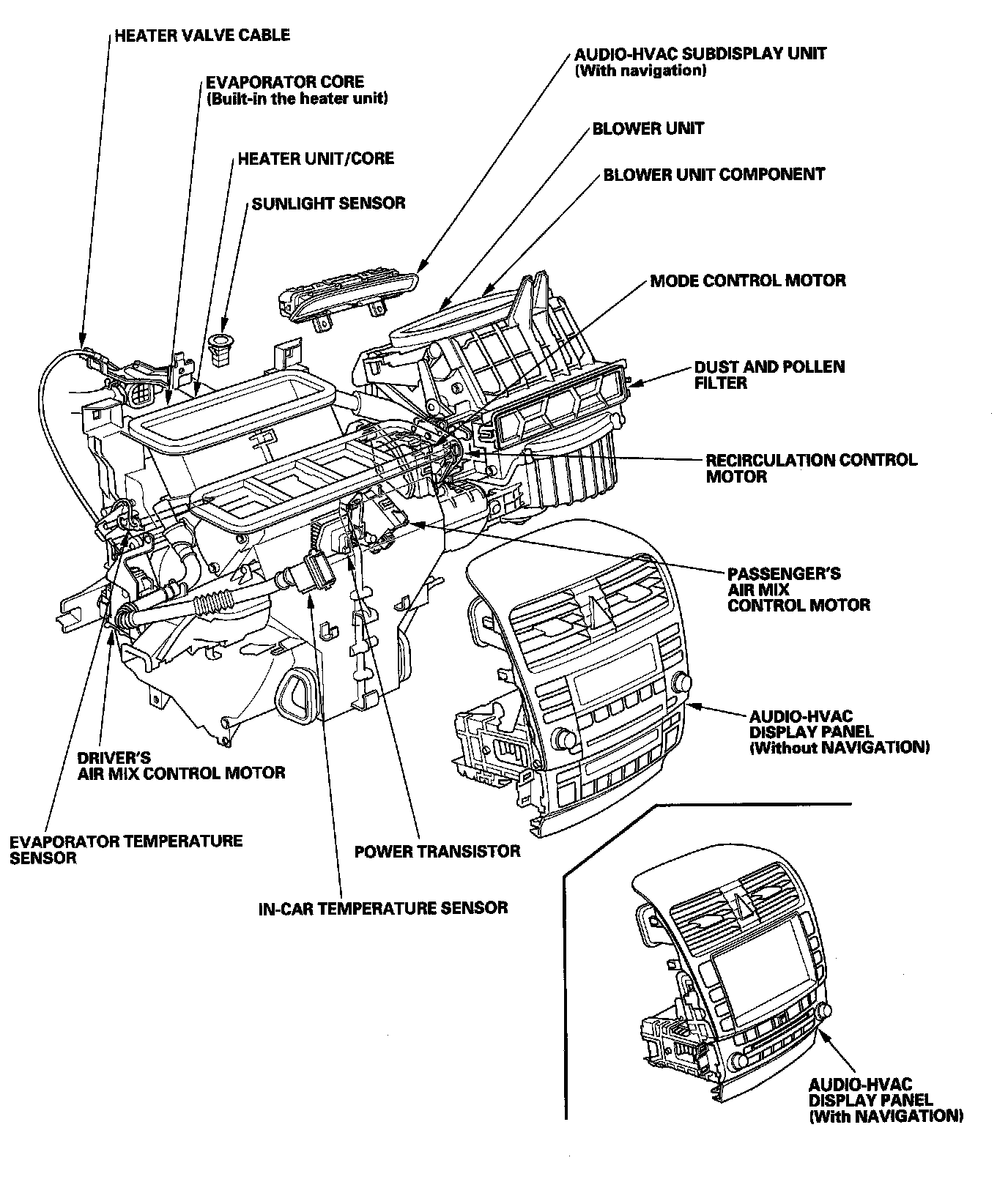

Climate Control Component Location:

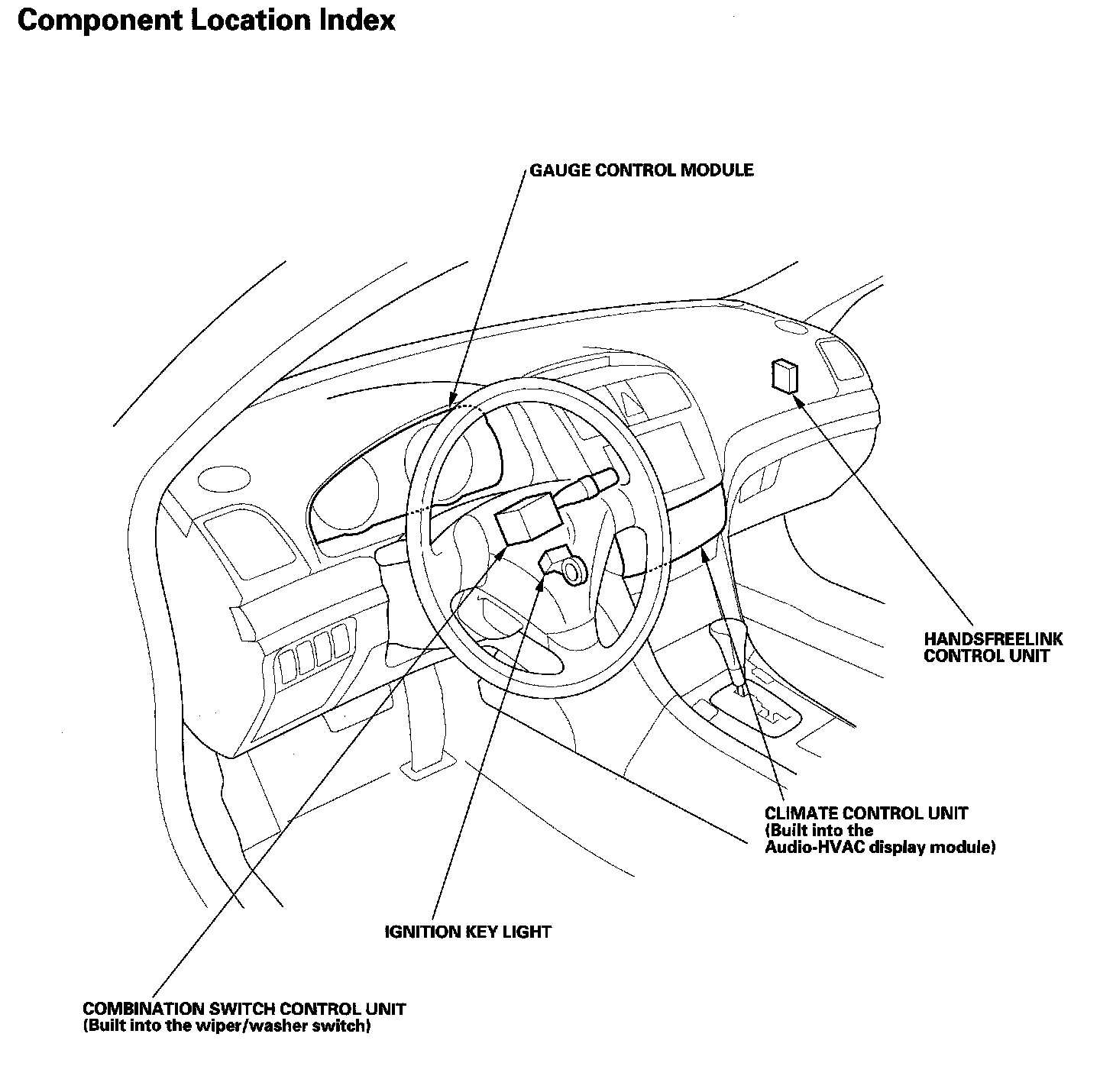

Multiplex Integrated Control System Component Location Index:



Rear Window Defogger Component Location Index:

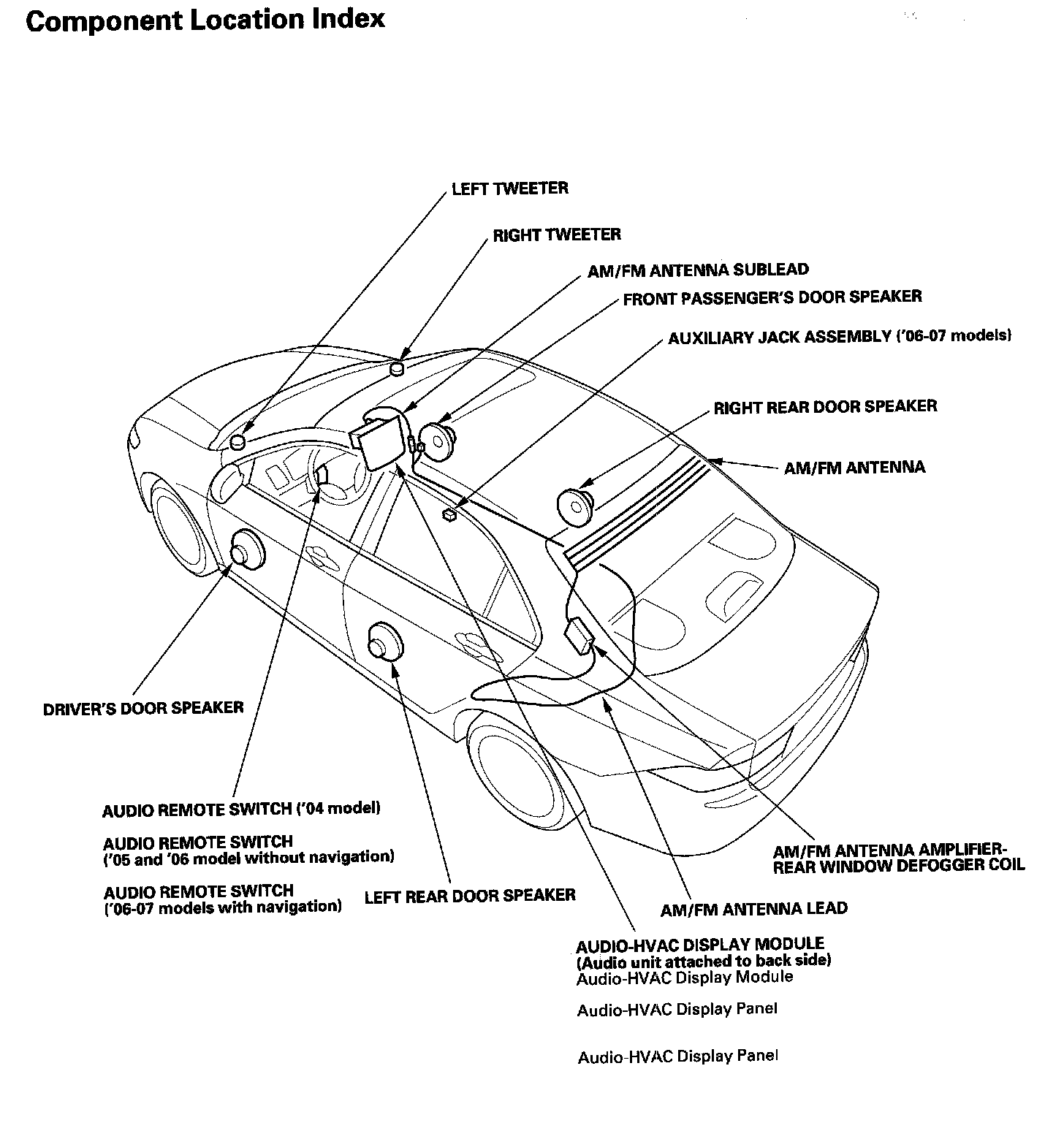

Audio System Component Location Index:

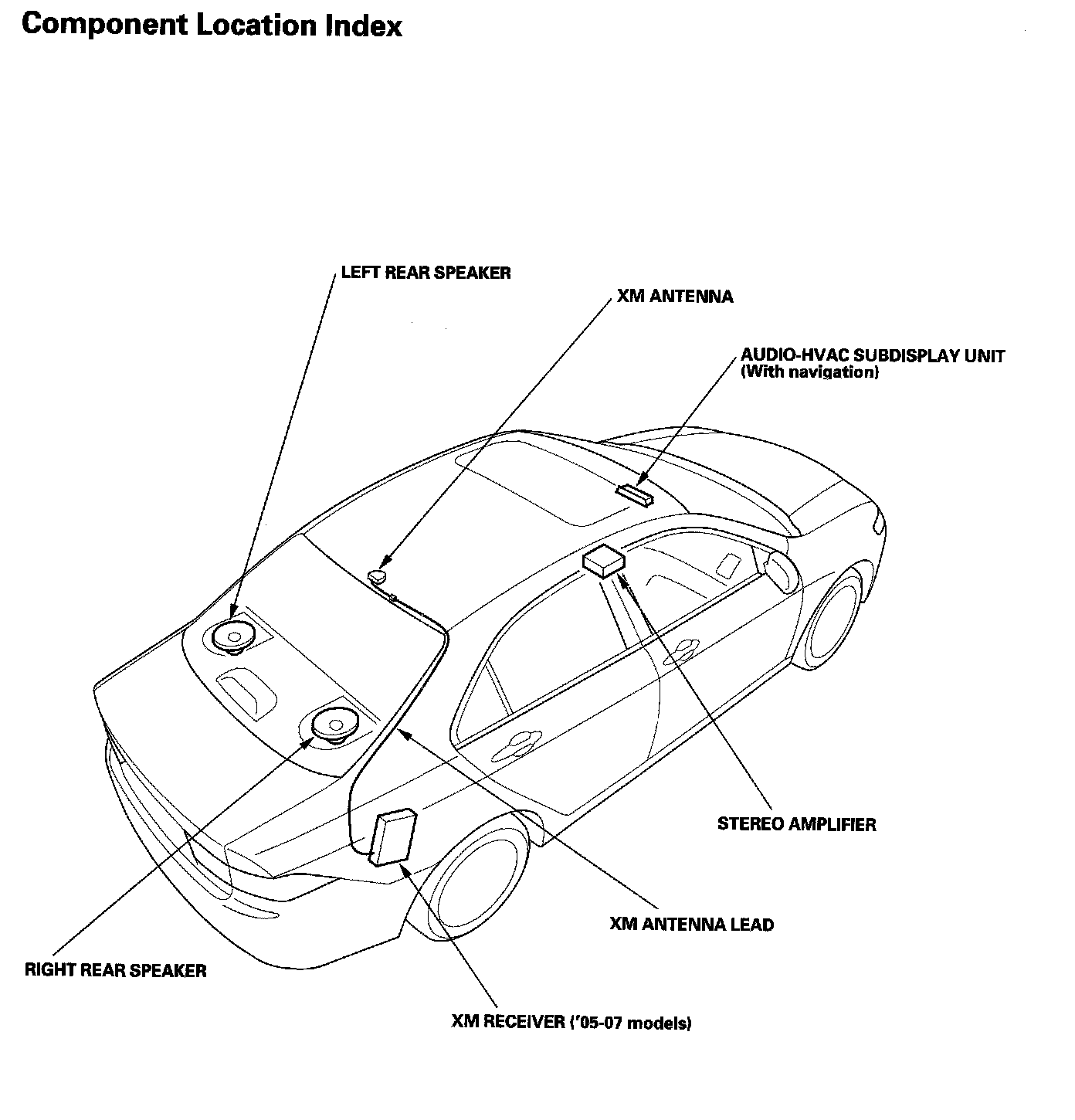

Audio System Component Location Index:



Navigation System Component Location Index:

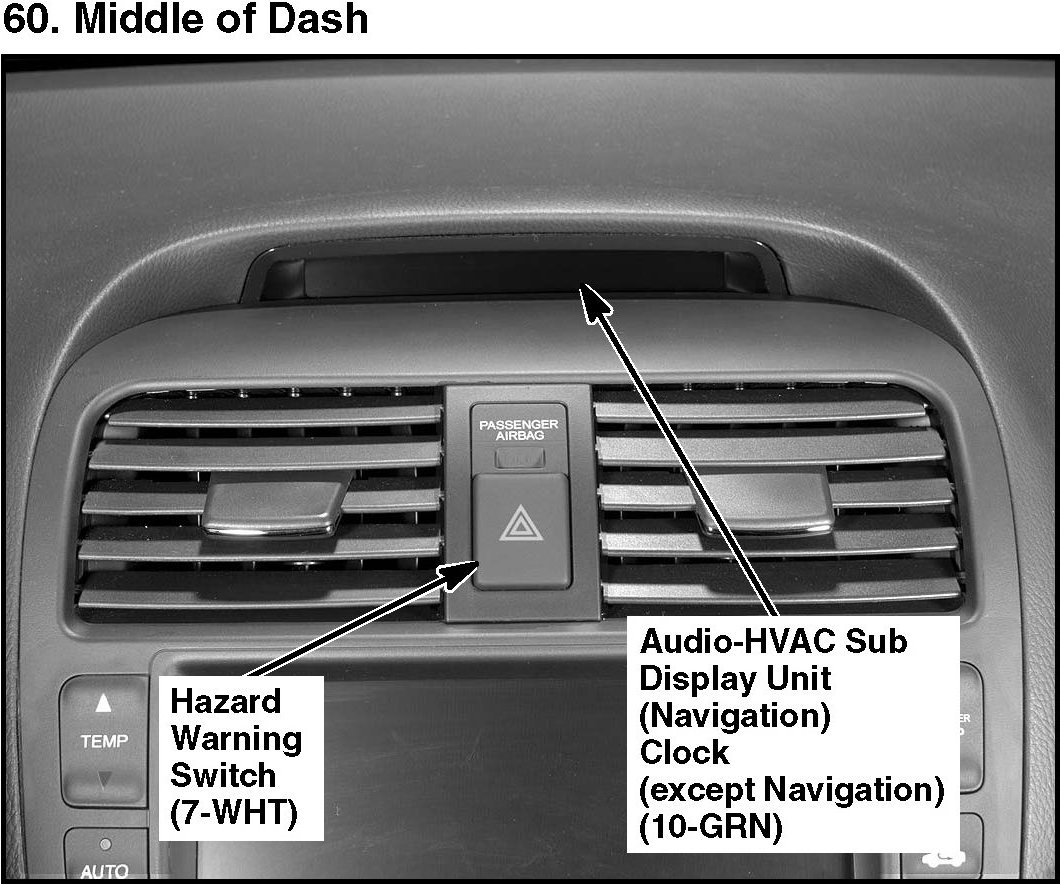

60. Middle Of Dash:
