Information Bus: Locations

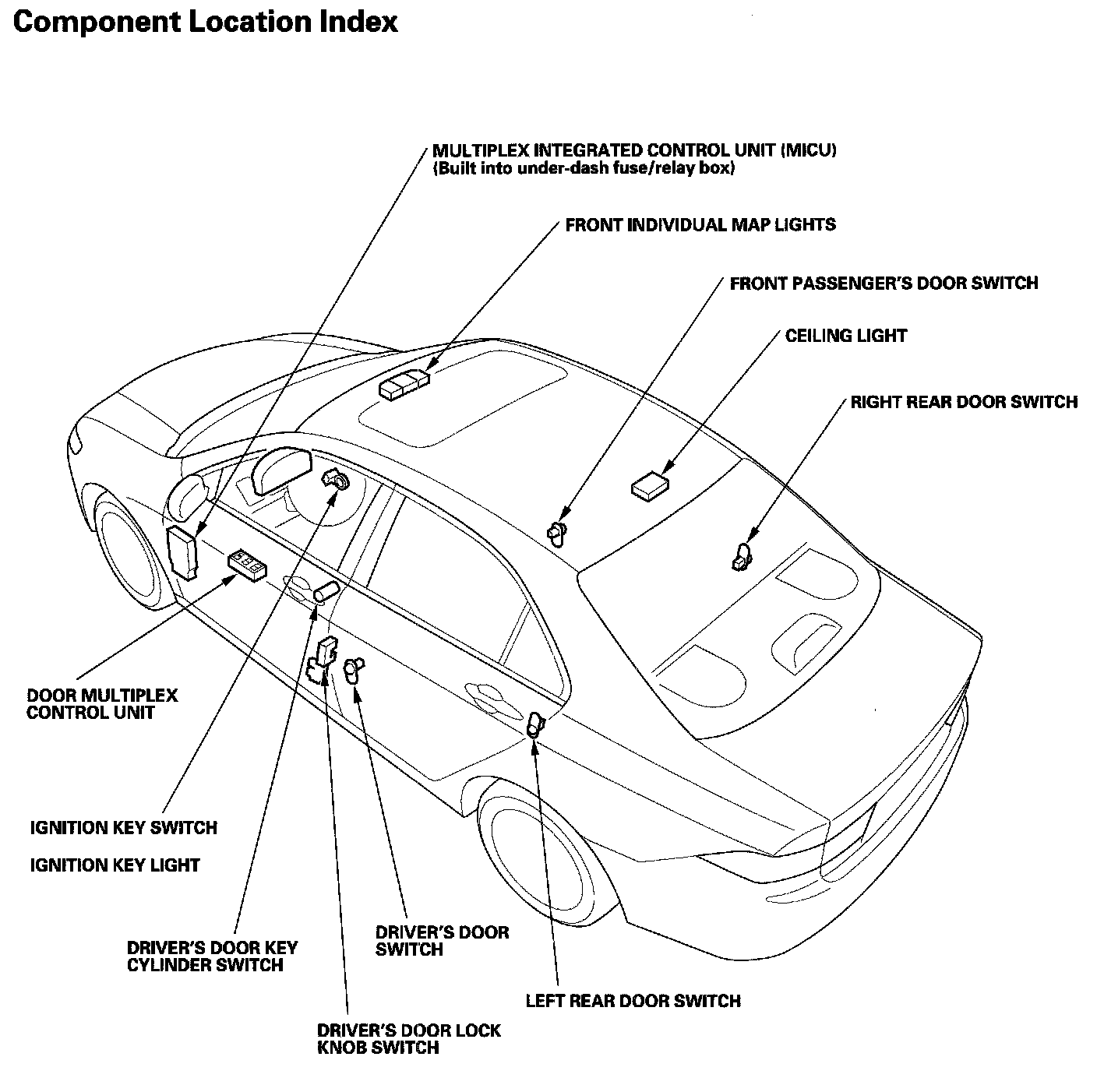

Multiplex Integrated Control System Component Location Index:



Multiplex Integrated Control System Component Location Index:



Relay And Control Unit Locations Dashboard:

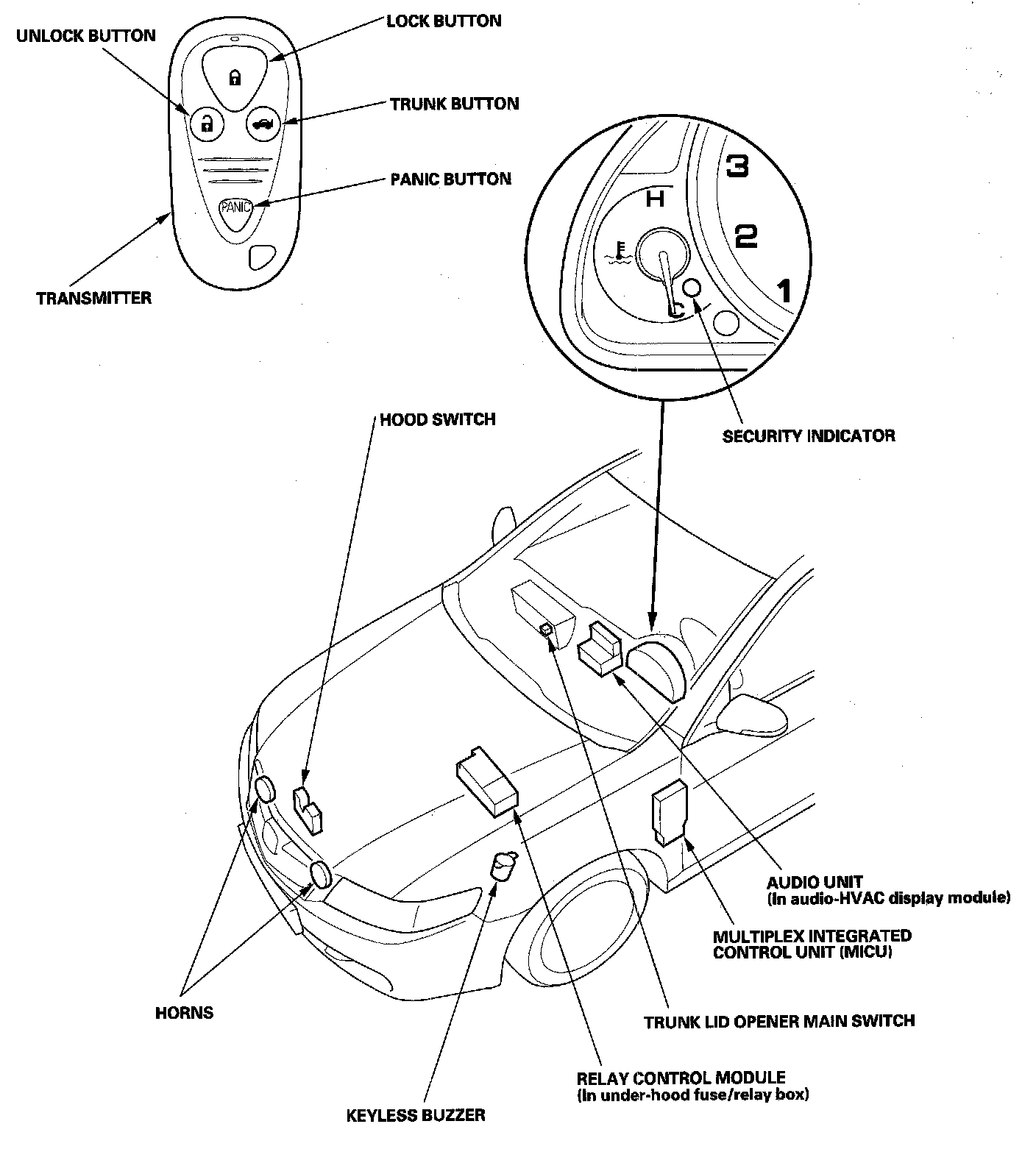

Keyless/Power Door Locks/Security System Component Location Index:



Entry Lights Control System Component Location Index:

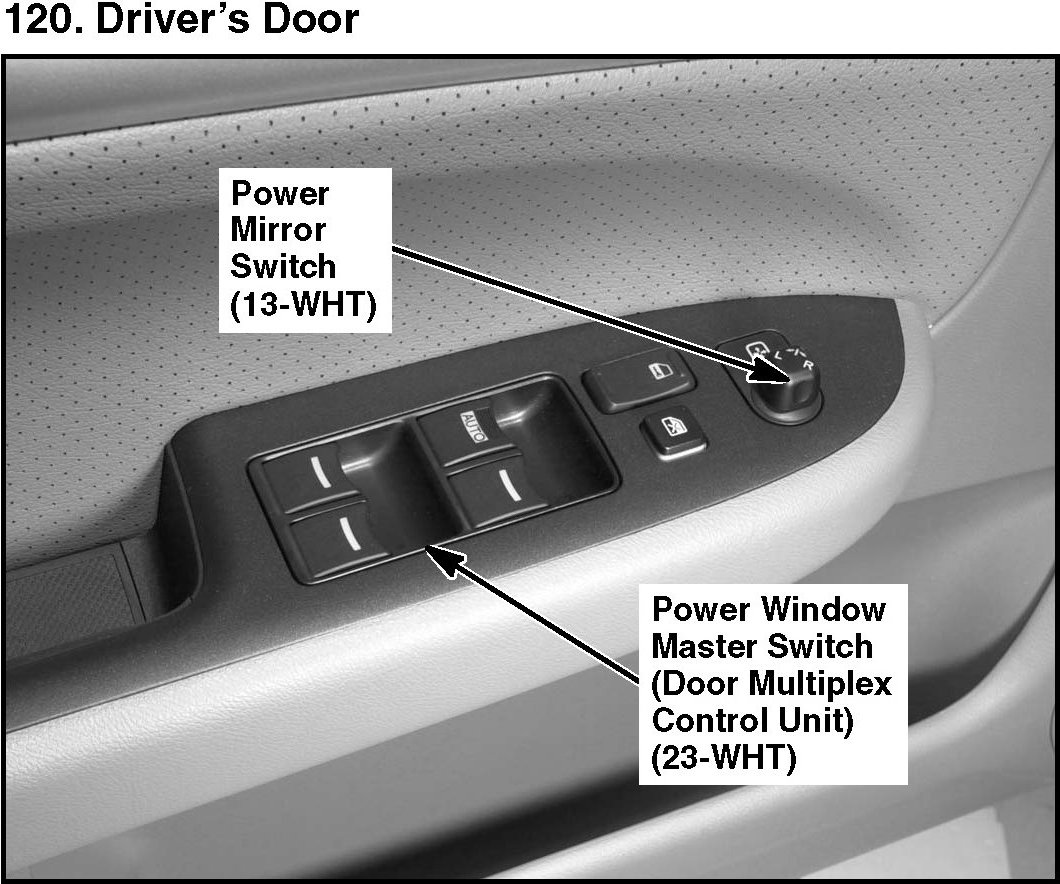

120. Driver's Door:
