Overhaul Specifications

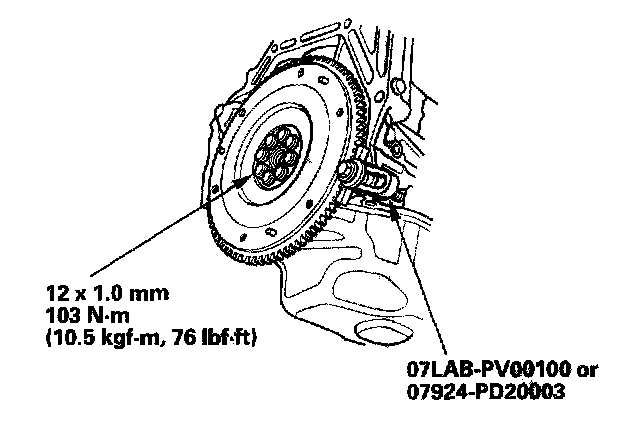

Flywheel mounting bolt torque, tighten in a crisscross pattern in several steps

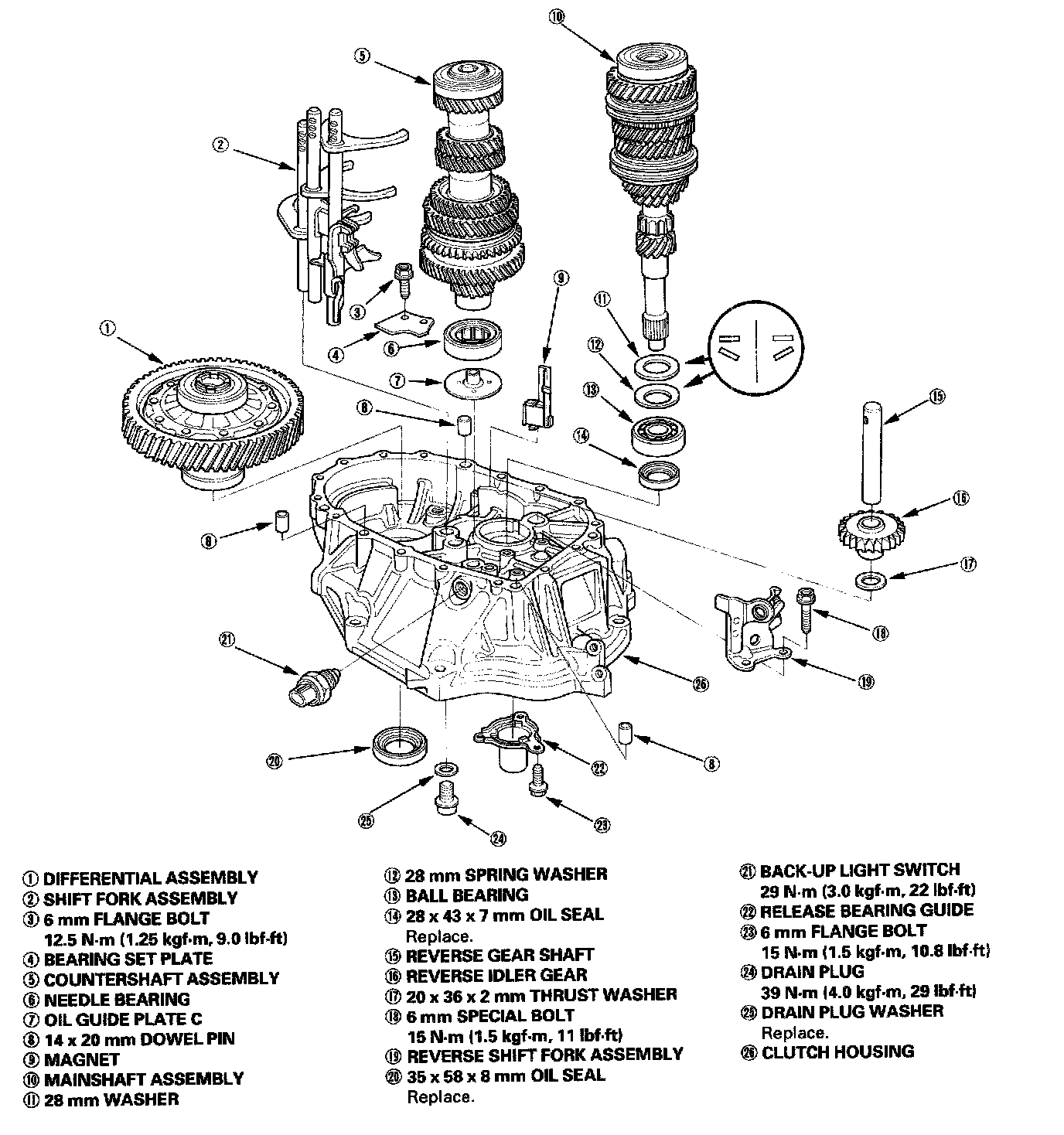

Exploded View - Clutch Housing

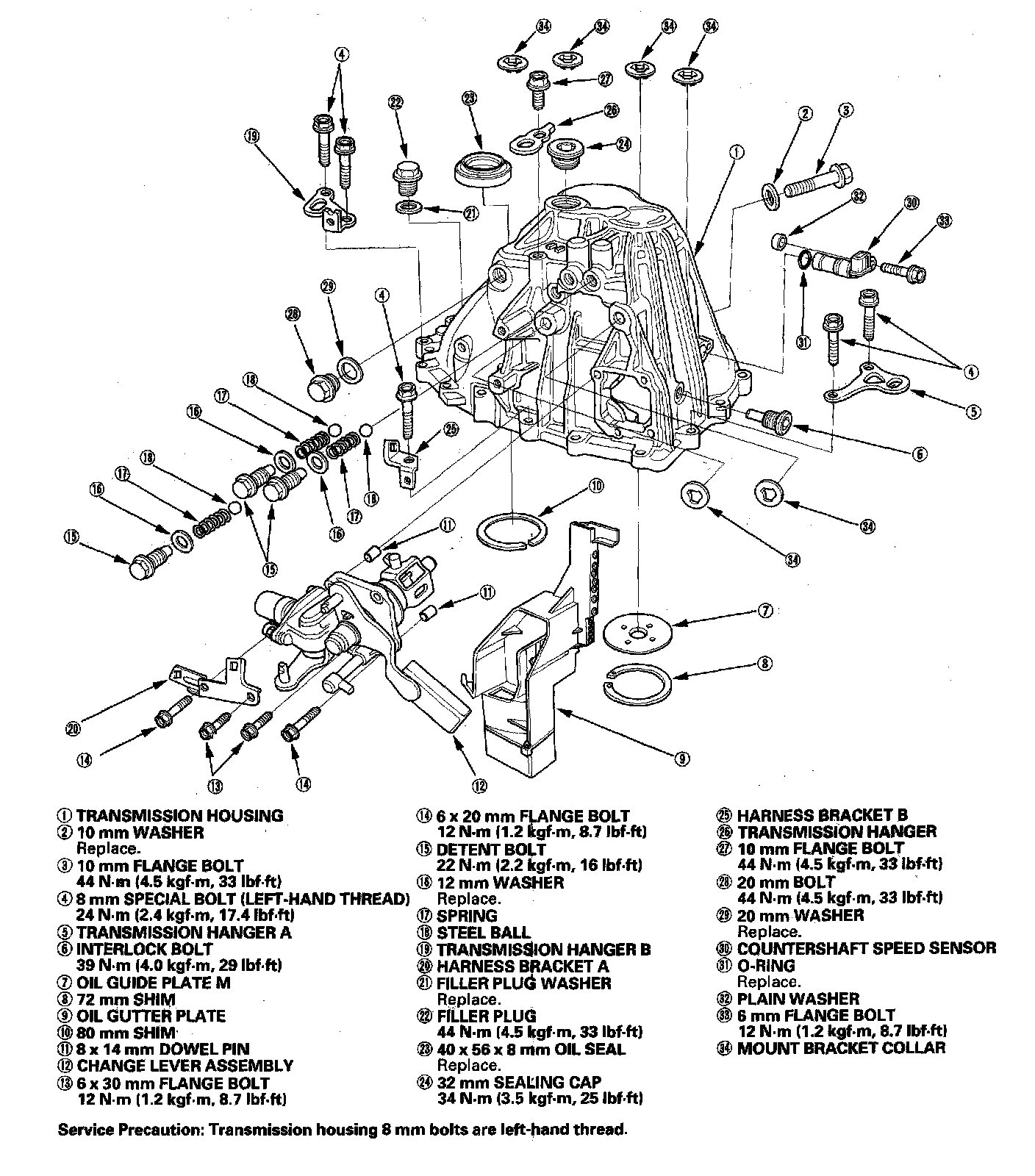

Exploded View - Transmission Housing

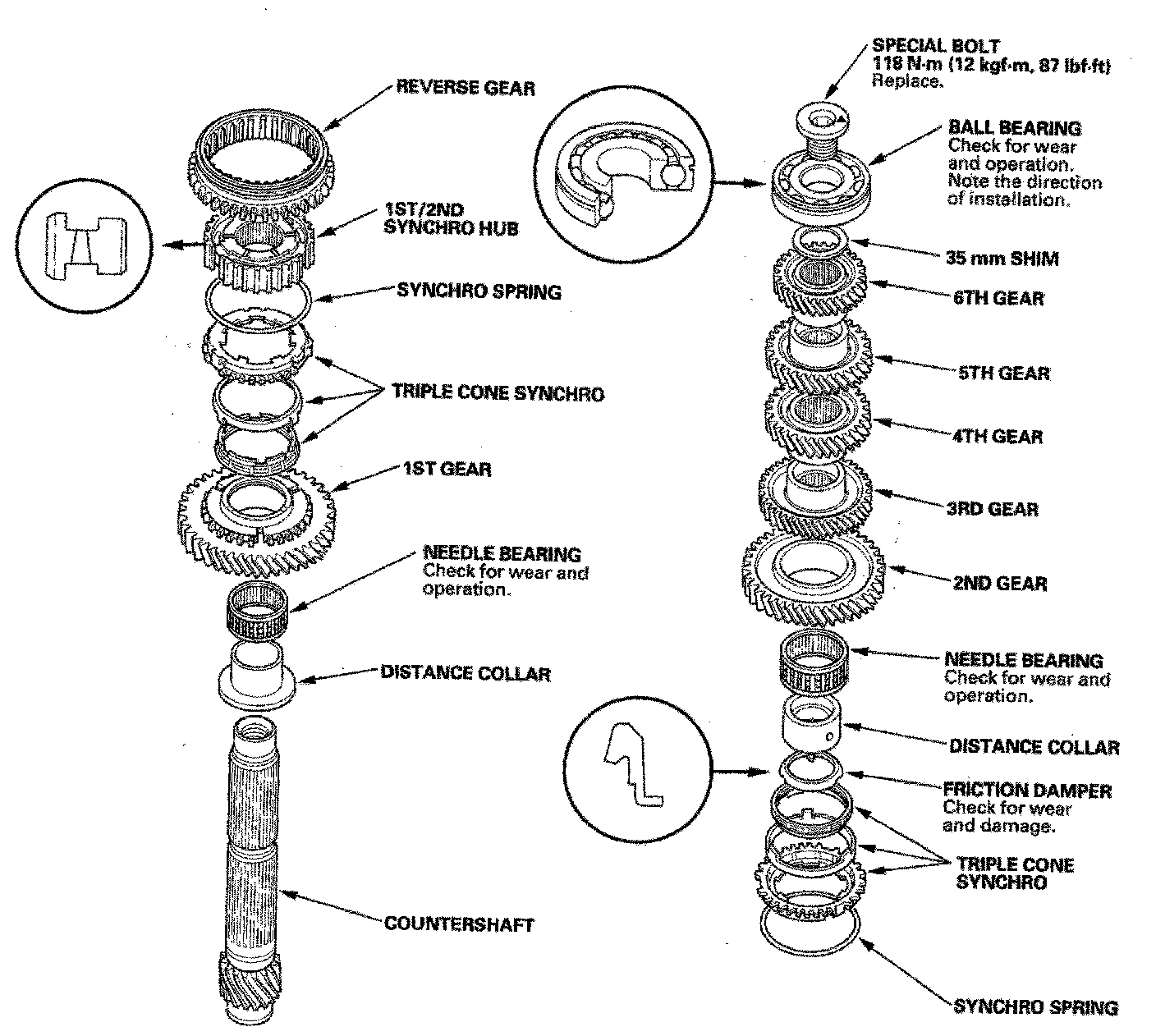

Exploded View - Countershaft Reassembly


For information regarding Transmission Overhaul Specifications, refer to Service and Repair Procedures. Service and Repair
