TPMS Control Unit ('07-'08) Connector End View

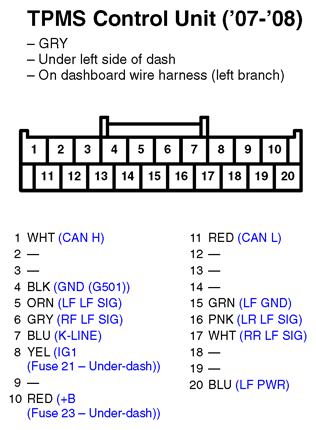

Fig 1: TPMS Control Unit ('07-'08) Connector End View
