Under-Dash Fuse/Relay Box Connector End View

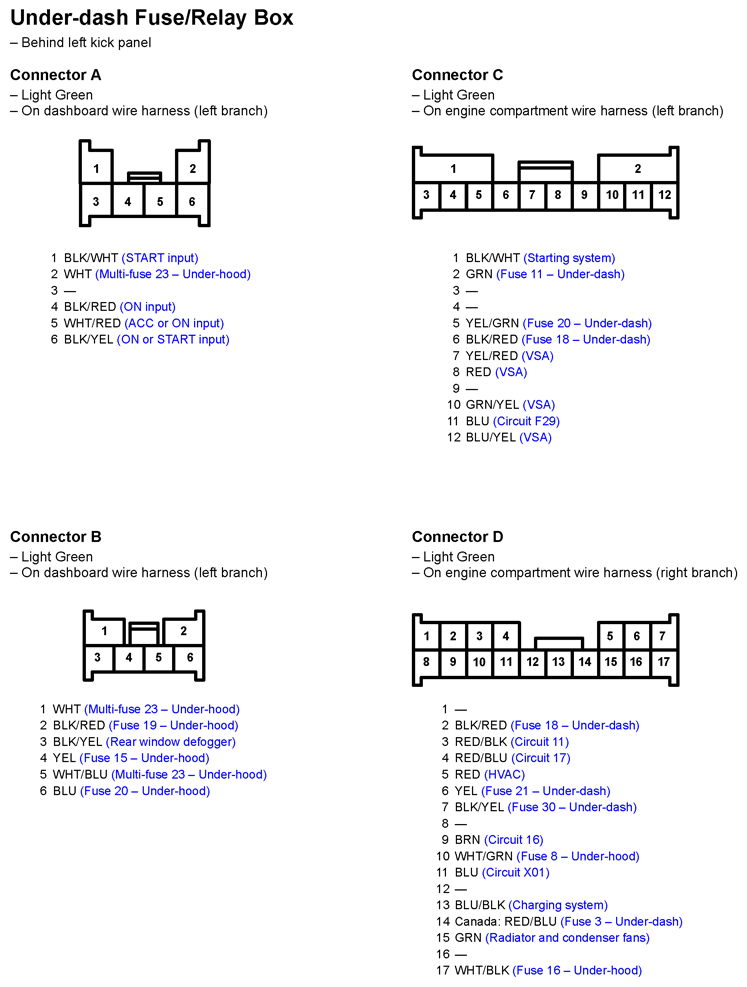

Fig 1: Under-Dash Fuse/Relay Box Connector End View (1 Of 7)

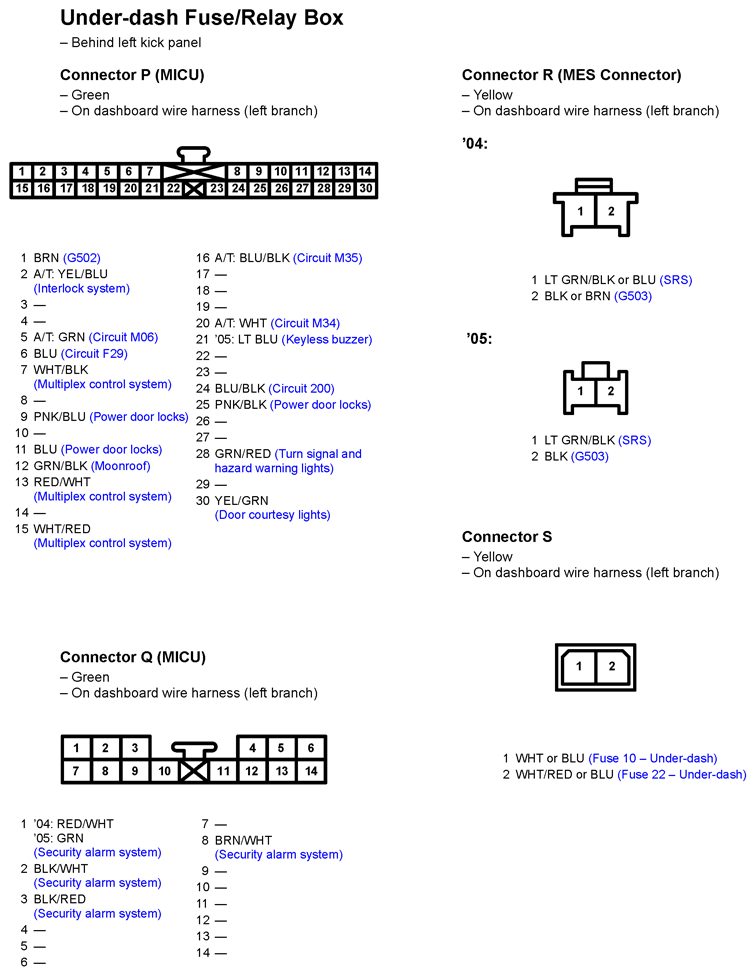

Fig 2: Under-Dash Fuse/Relay Box Connector End View (2 Of 7)

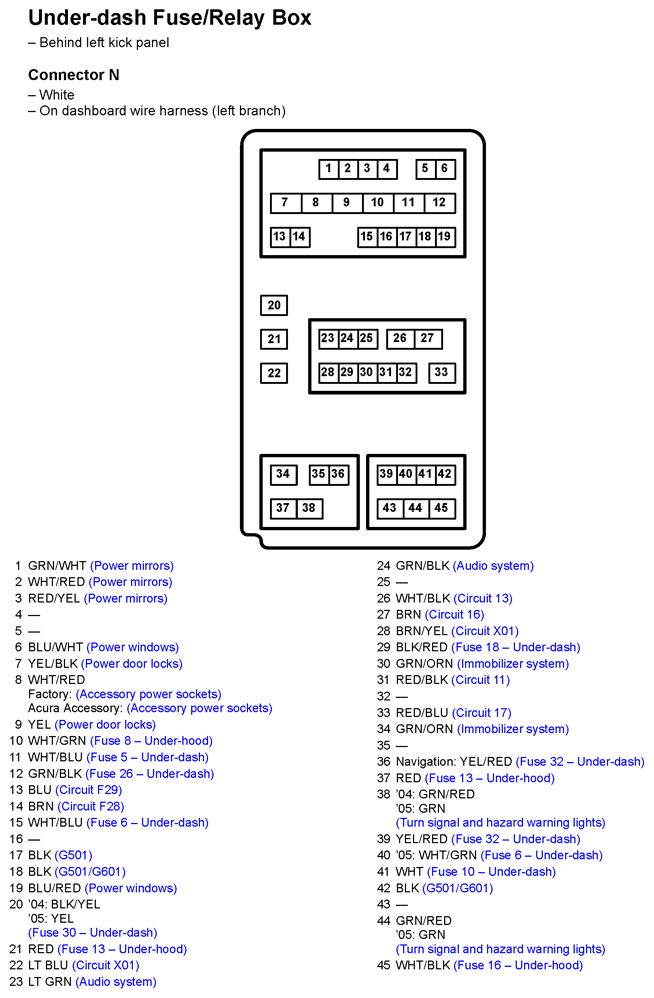

Fig 3: Under-Dash Fuse/Relay Box Connector End View (3 Of 7)

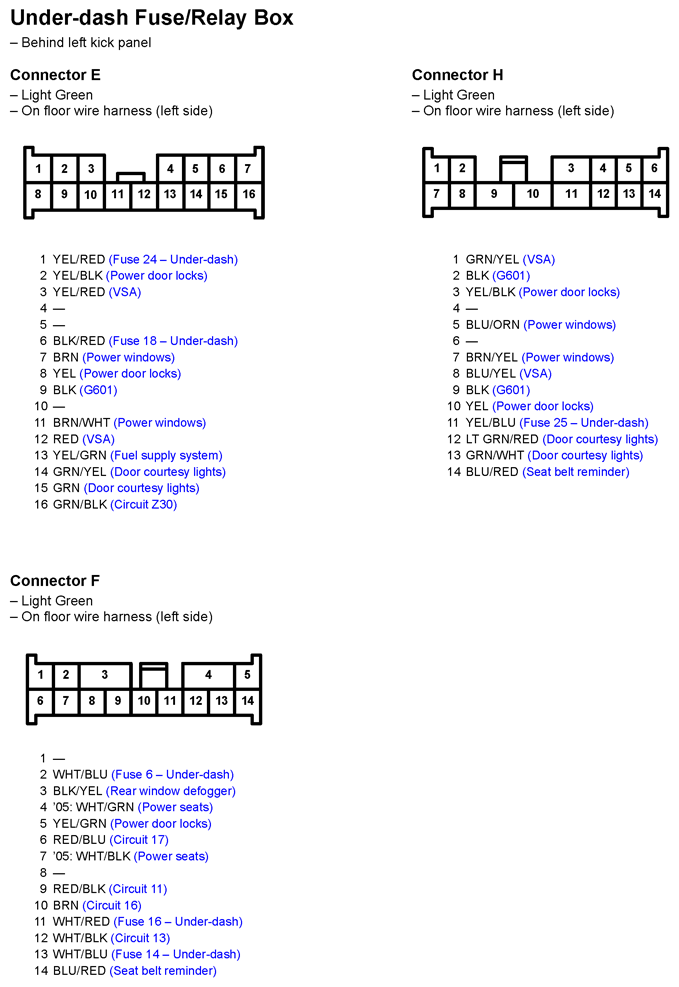

Fig 4: Under-Dash Fuse/Relay Box Connector End View (4 Of 7)

Fig 5: Under-Dash Fuse/Relay Box Connector End View (5 Of 7)

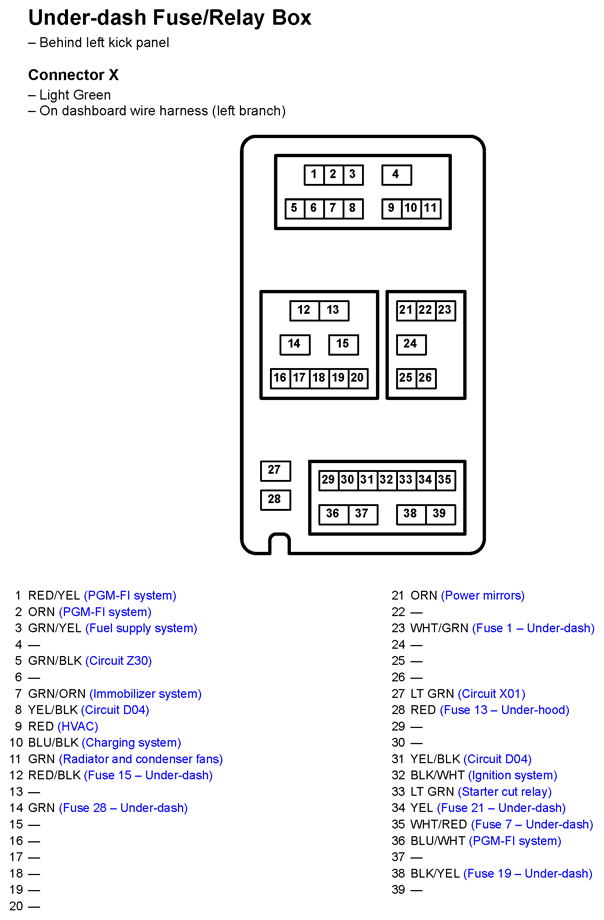

Fig 6: Under-Dash Fuse/Relay Box Connector End View (6 Of 7)

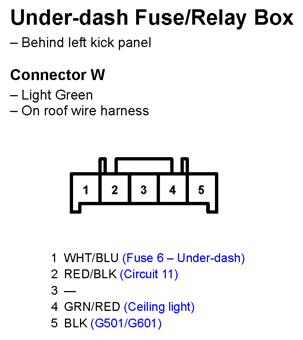

Fig 7: Under-Dash Fuse/Relay Box Connector End View (7 Of 7)
