Relays And Control Unit Locations: Dashboard

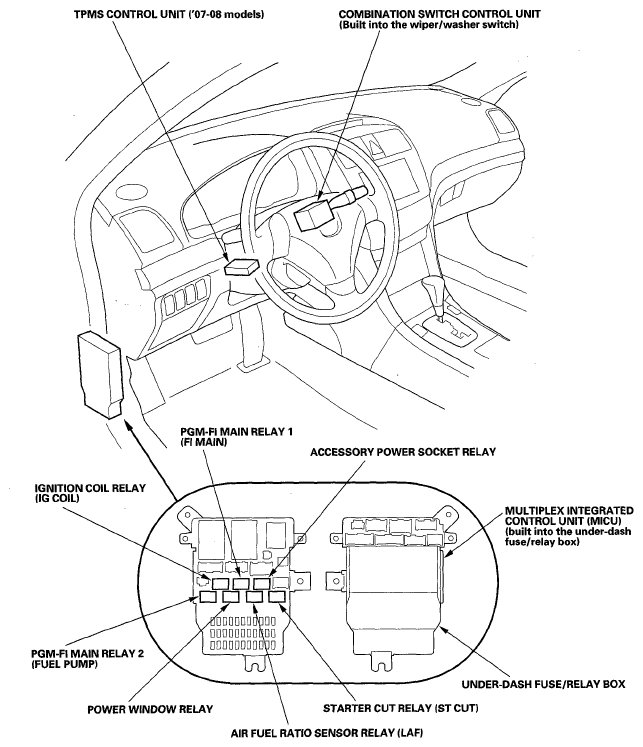

Fig 1: Identifying Dashboard Parts Location (1 Of 3)
G05492746

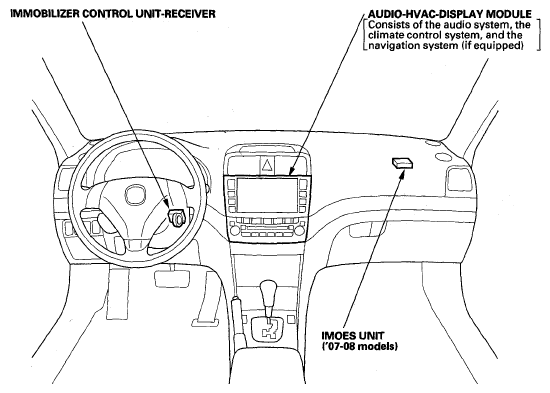

Fig 2: Identifying Dashboard Parts Location (2 Of 3)
G05492747

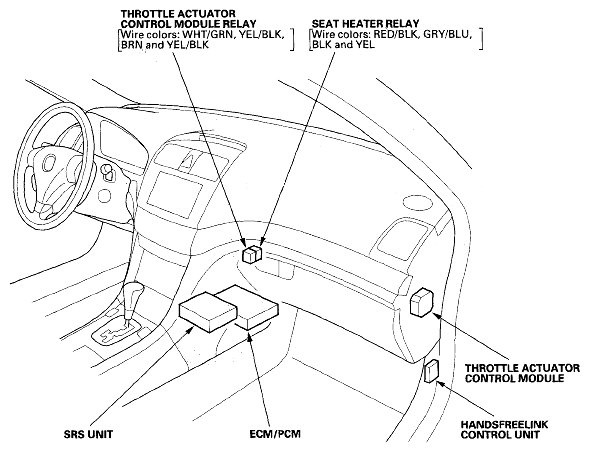

Fig 3: Identifying Dashboard Parts Location (3 Of 3)
G05492748
