DVD-ROM Replacement

WARNING: This page is about a different car, the 2005 Acura TSX and 2004 Acura TSX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When the DVD-ROM is re-inserted or replaced, a map match must be done (see MAP MATCHING ).

Turn the ignition switch ON (II).
Open the front cover (A) of the navigation unit (B) located trunk room.

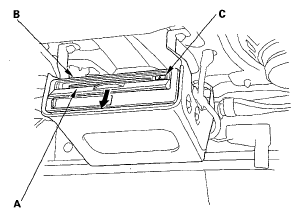

Fig 1: Identifying Front Cover And Navigation Unit
Press the EJECT button (C).
Remove the DVD-ROM.
Insert the new DVD-ROM.
Close the front cover. Do not turn the ignition switch to LOCK (0), until data is down loaded to navigation unit.
NOTE: After servicing, the front cover must be closed. If you start up the navigation system with the front cover open, the display will indicate. "Navigation unit door is open or No DVD Disk installed. Please check system".
