Front Passenger's MPCS Unit Input Test
Front Passenger's MPCS Unit Input Test1. Turn the ignition switch to LOCK (0).
2. Remove the front passenger's door panel.

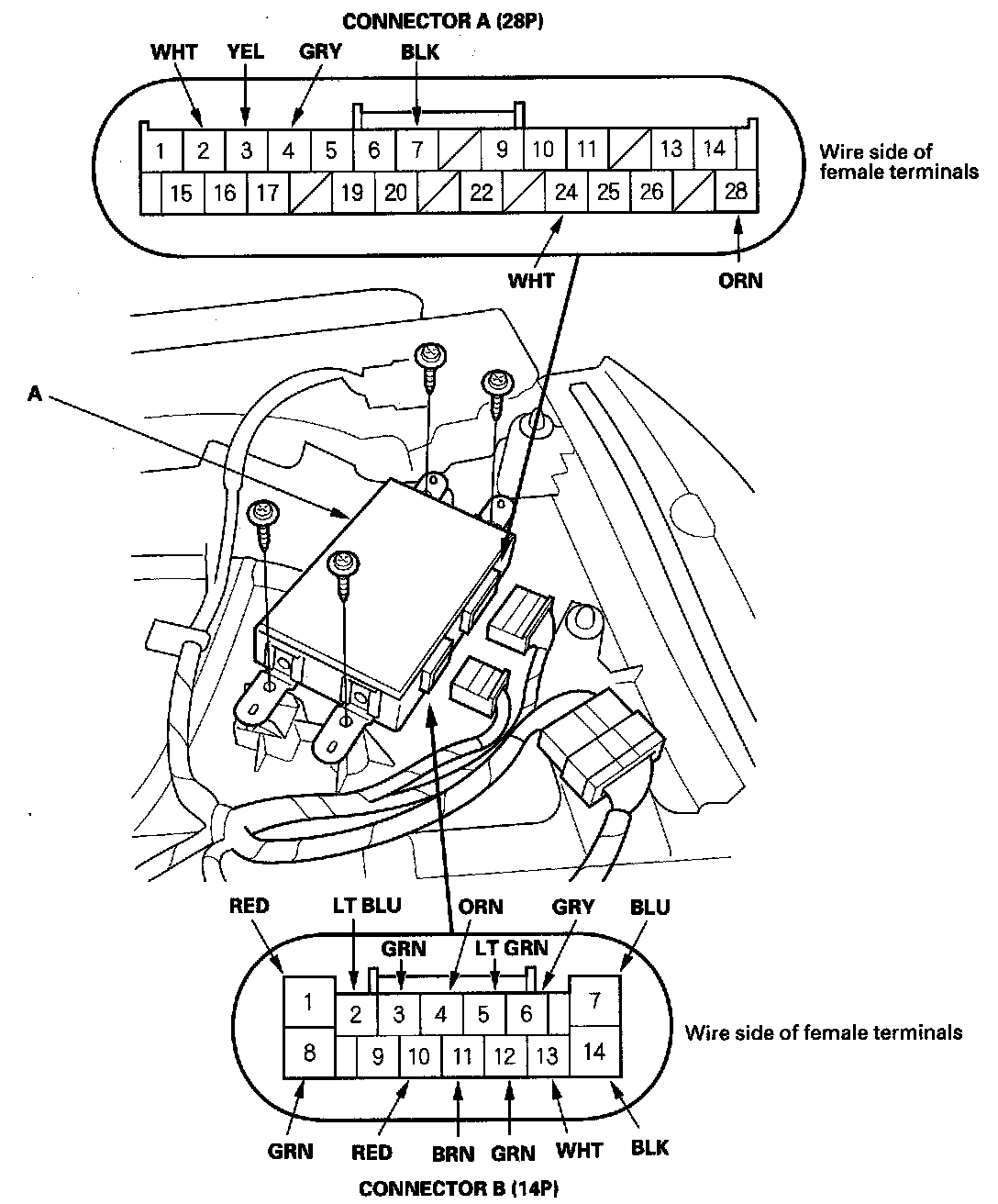

3. Disconnect front passenger's MPCS unit (A) connectors A (28P) and B (14P).
4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 5.

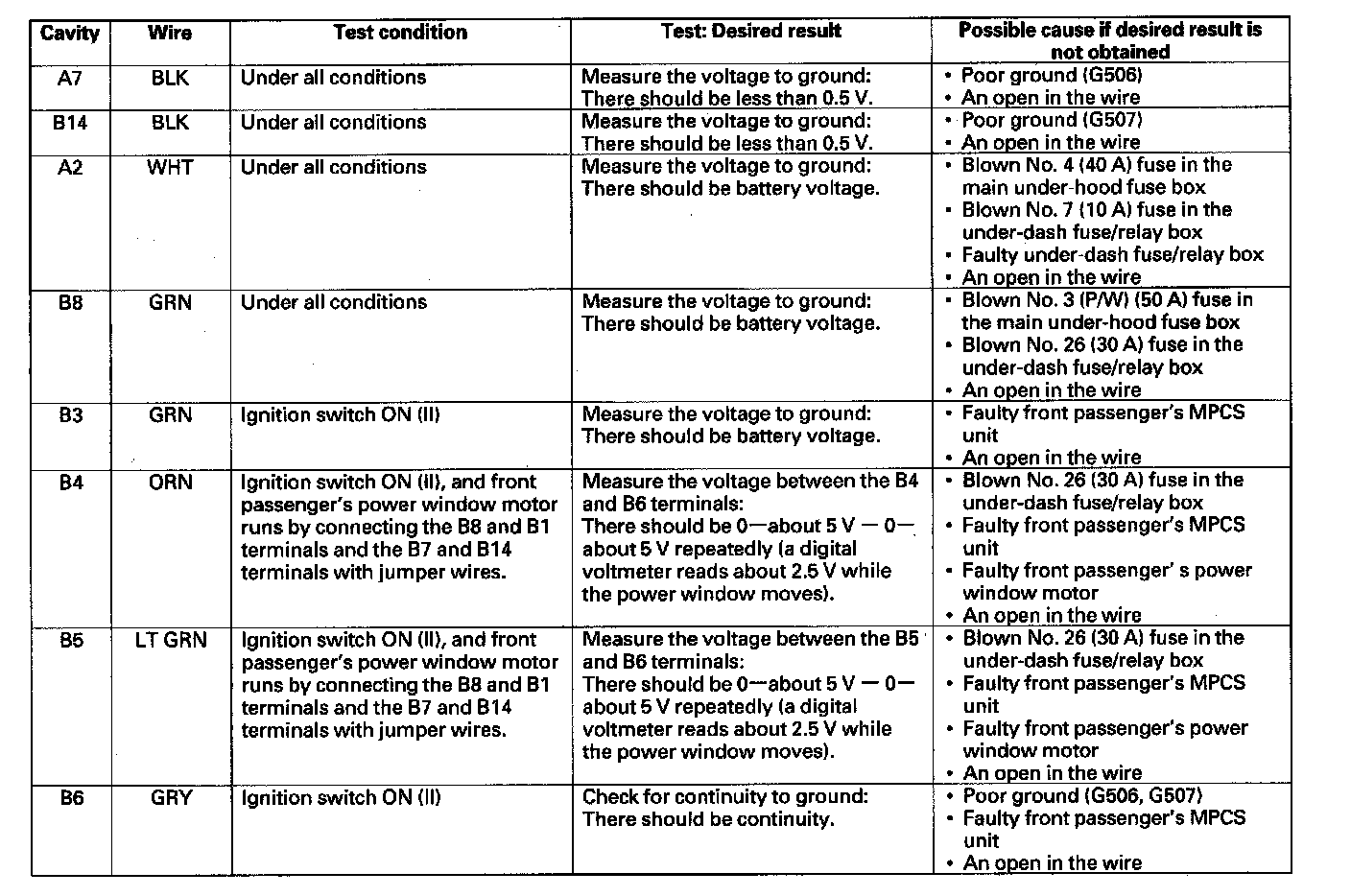

5. With the connectors still disconnected, make these input tests at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.

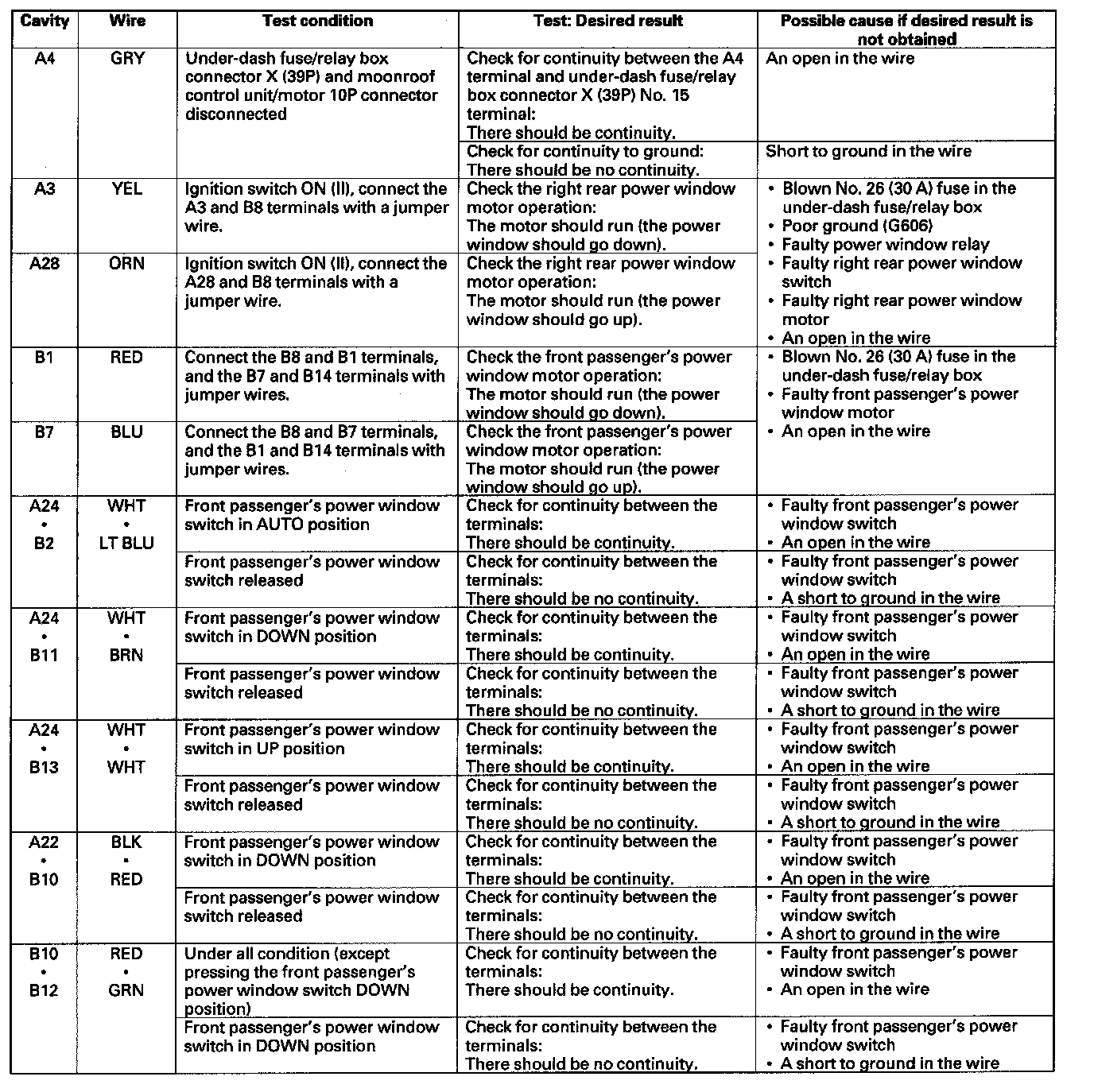

6. Reconnect the connectors, and make these input tests at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, replace the front passenger's MPCS unit, then go to step 7.
7. Reset the power window control unit.
