PCM A/T Control System Circuit Diagram
PCM A/T Control System Circuit Diagram

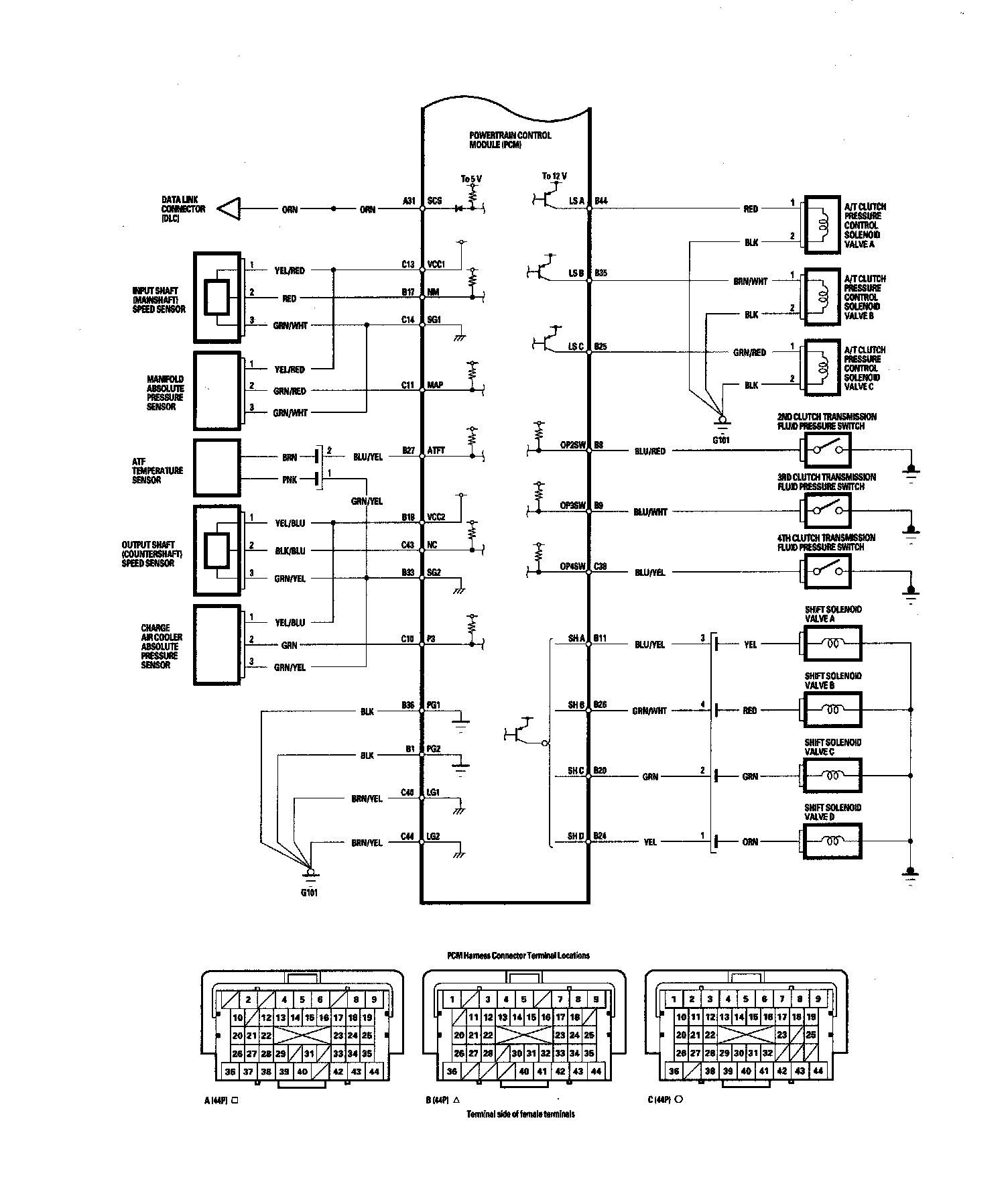

PMC A/T Control System Circuit Diagram (Part 1):

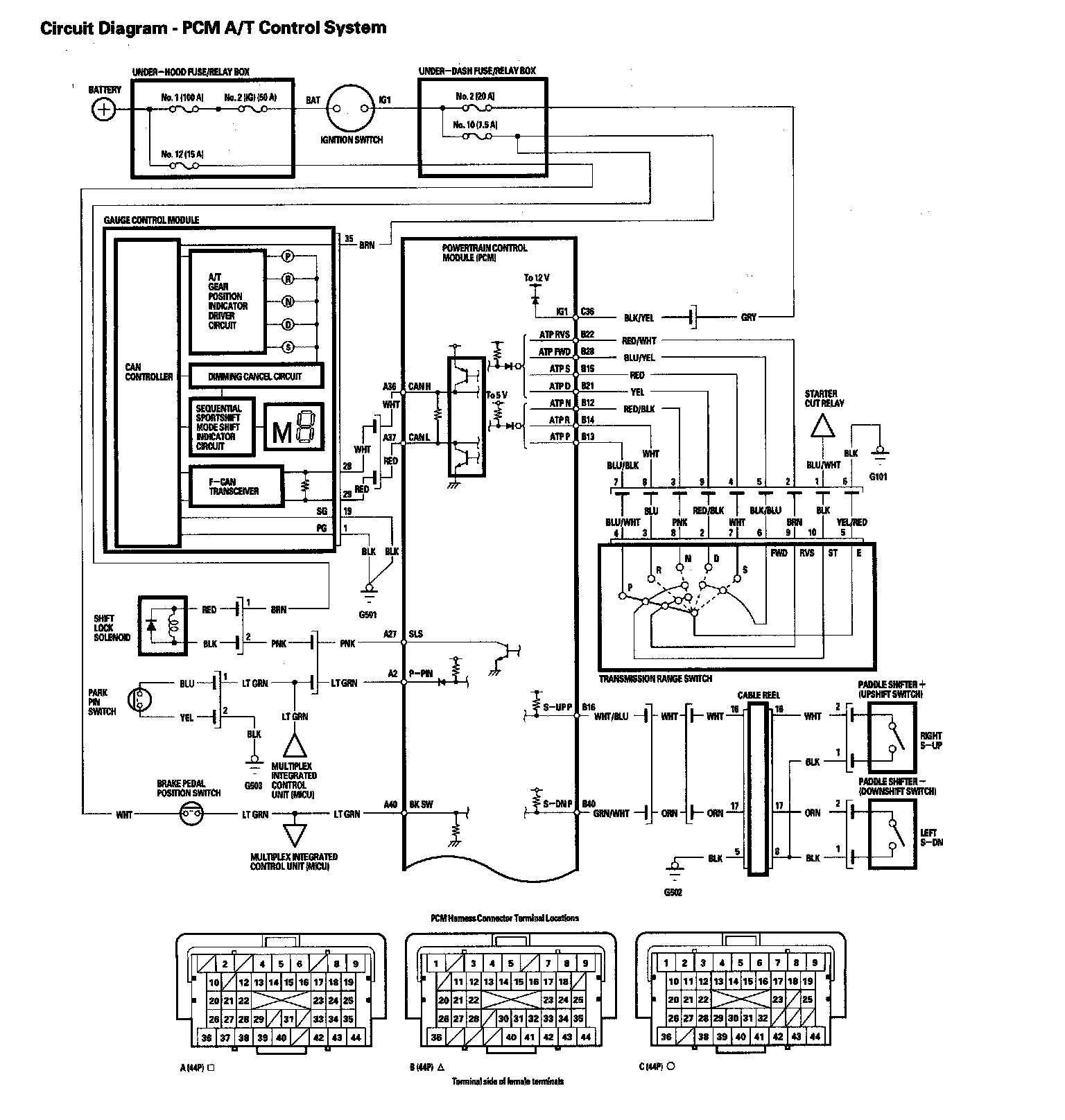

PMC A/T Control System Circuit Diagram (Part 2):
