Acceleration Enrichment Module: Locations

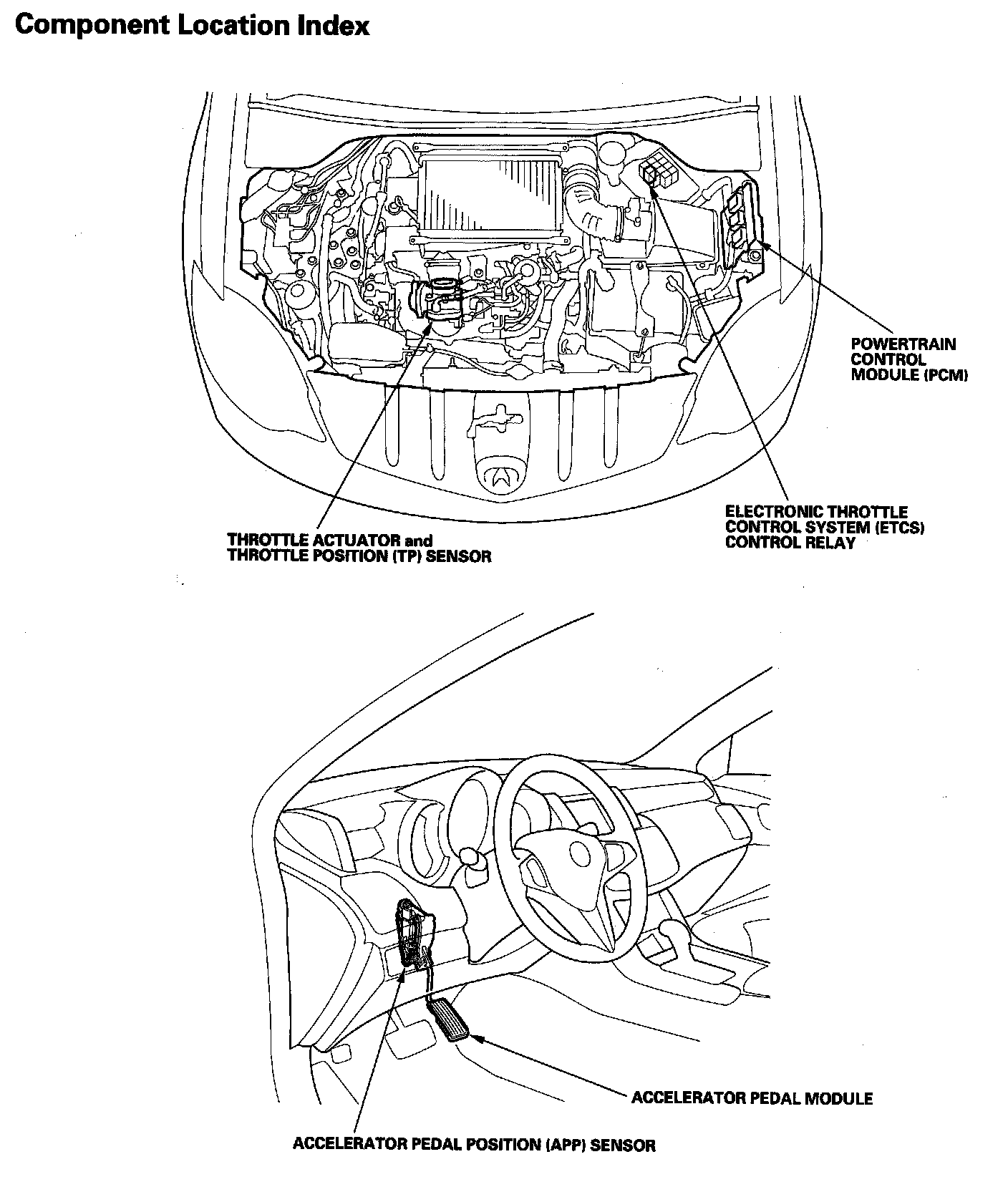

Electronic Throttle Control System Component Locaton Index:



Relay And Control Unit Locations Engine Compartment:
