Data Link Connector: Locations

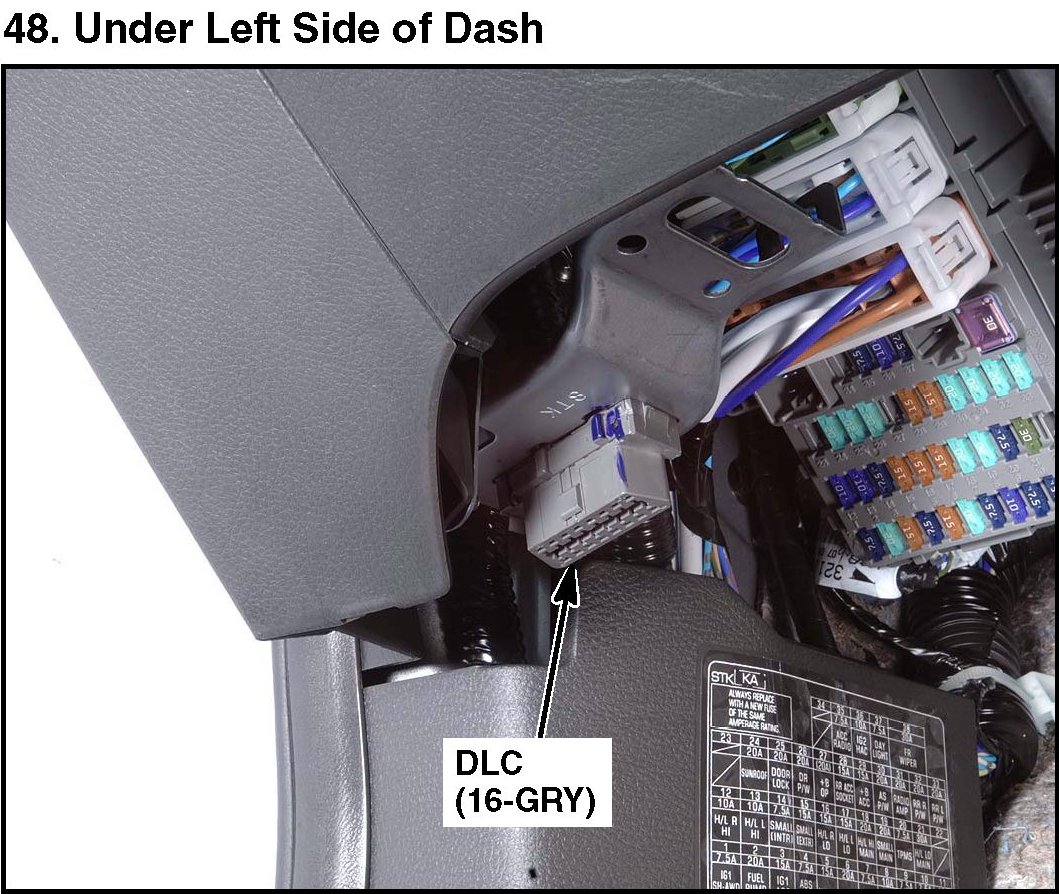

48. Under Left Side Of Dash:
PGM-FI System Component Location Index:

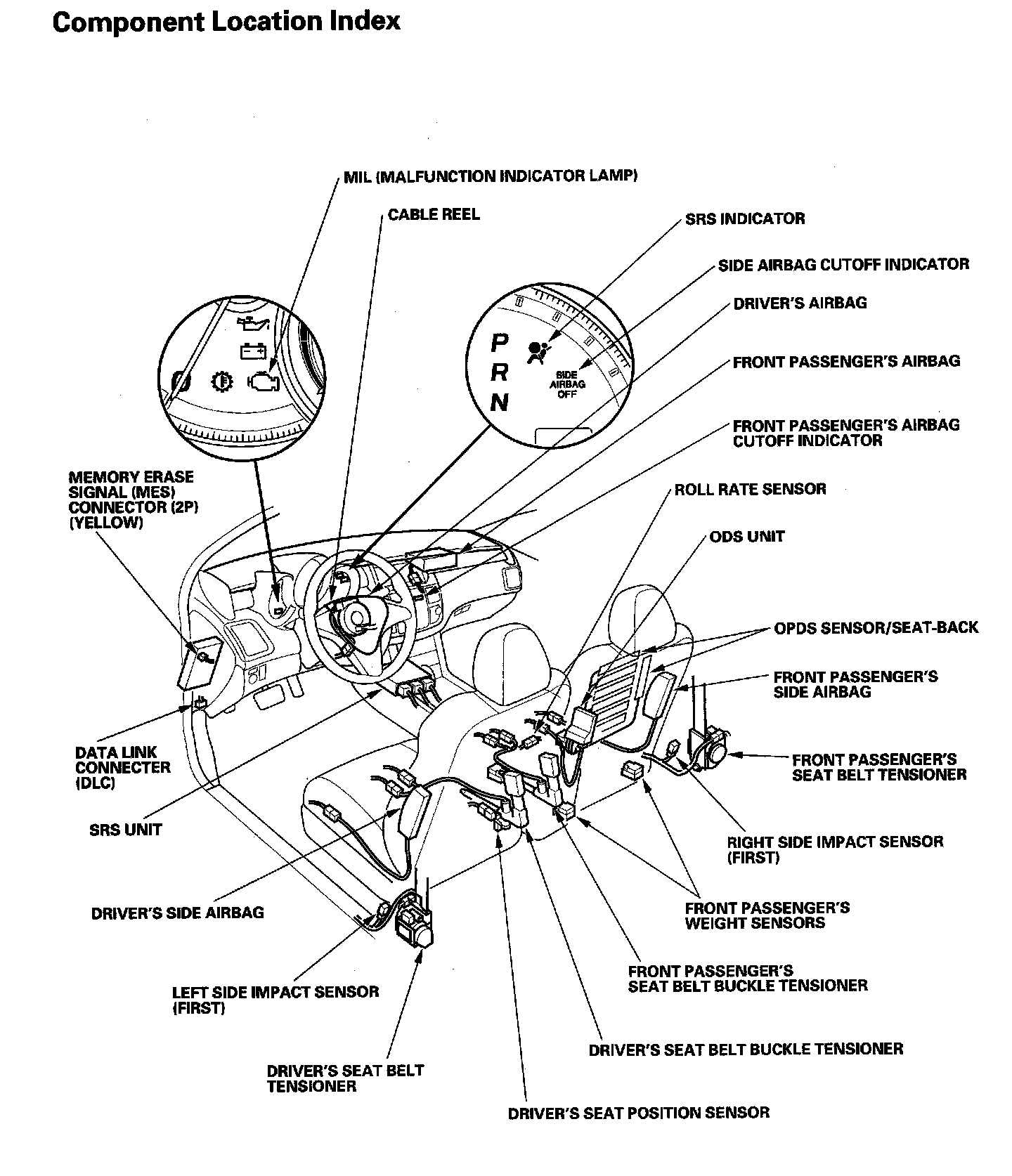

SRS Component Location Index:
