Computers and Control Systems: Locations

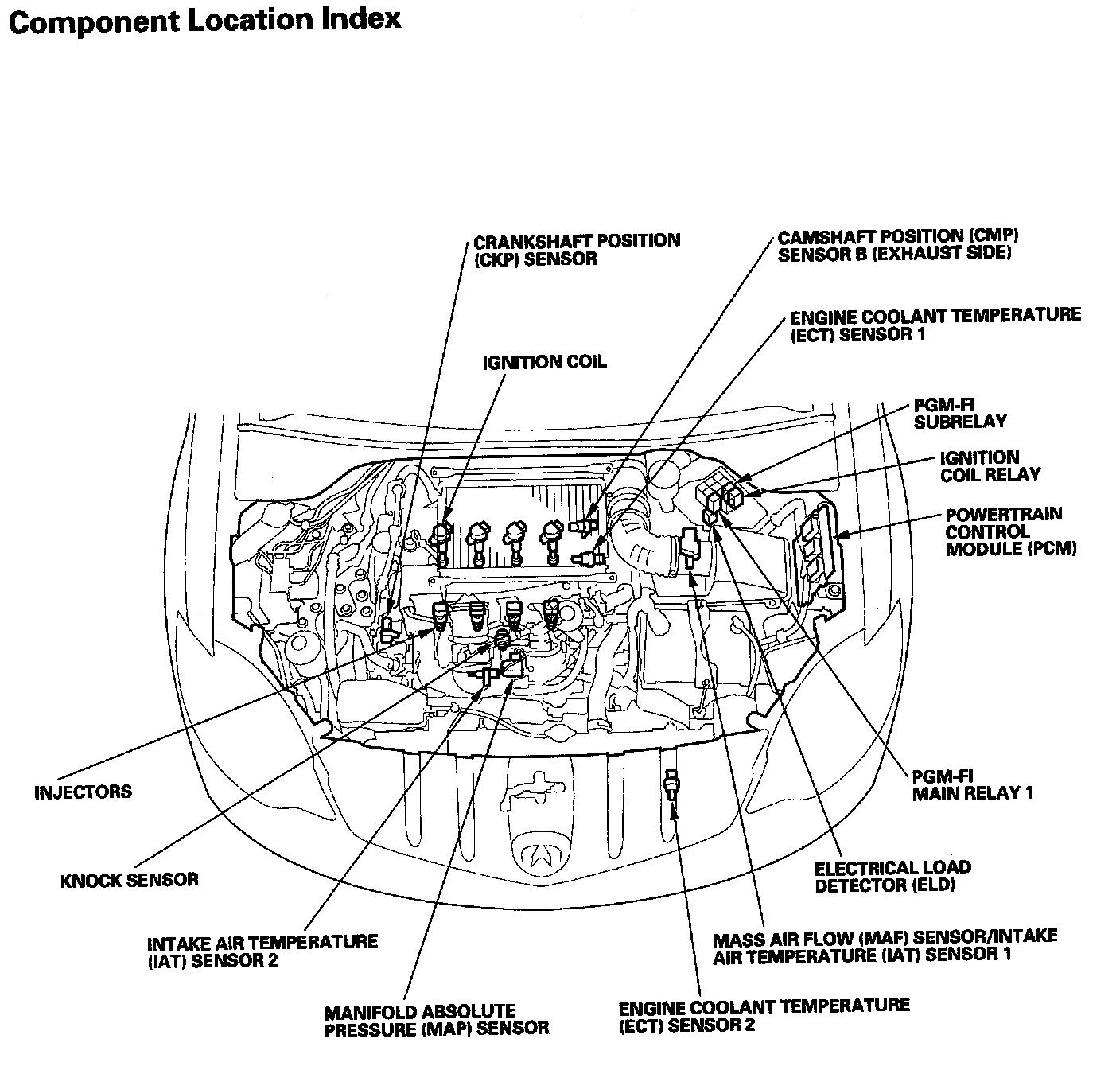

PGM-FI System Component Location Index:

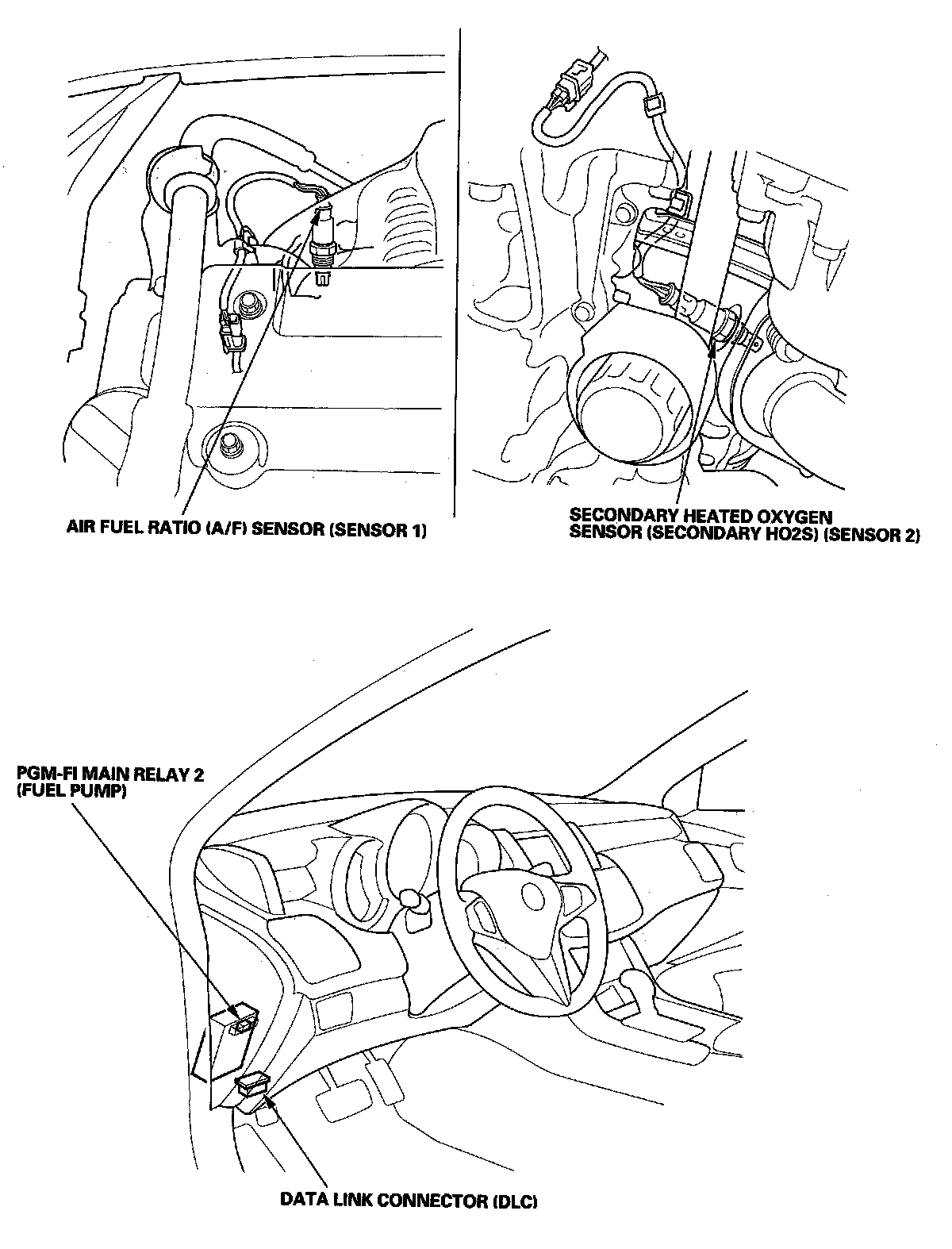

PGM-FI System Component Location Index:

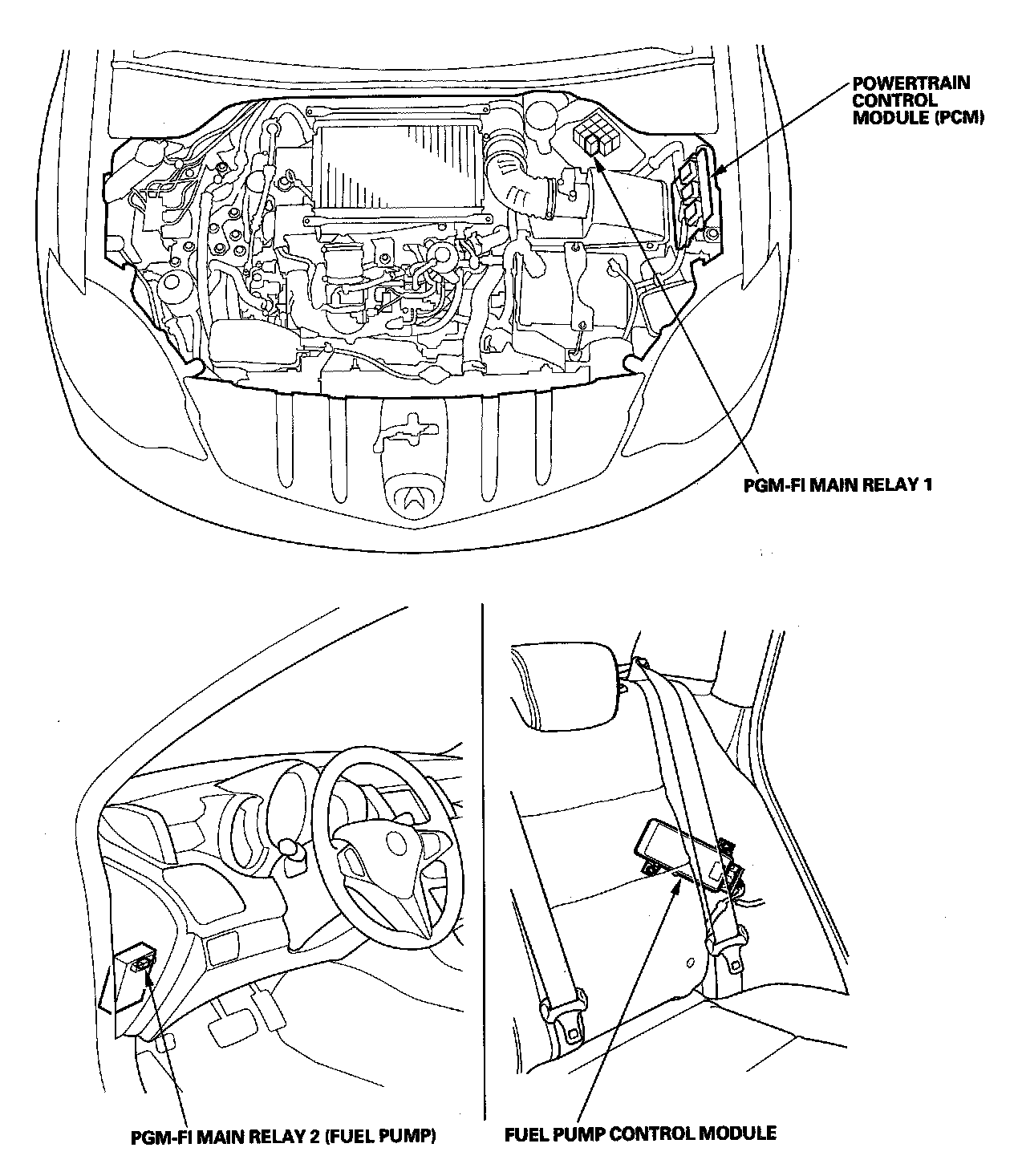

Fuel Supply System Component Location Index:

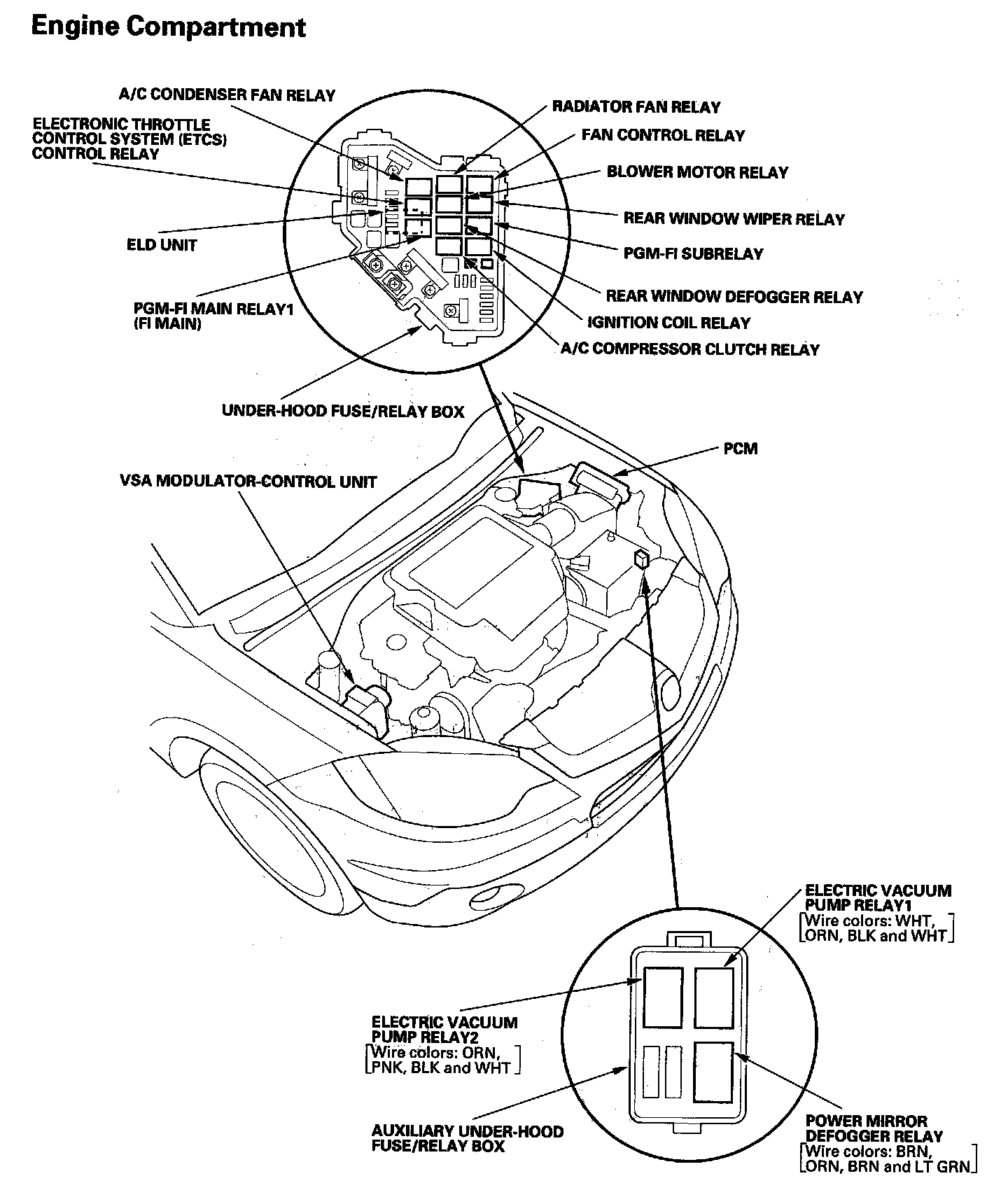

Relay And Control Unit Locations Engine Compartment:

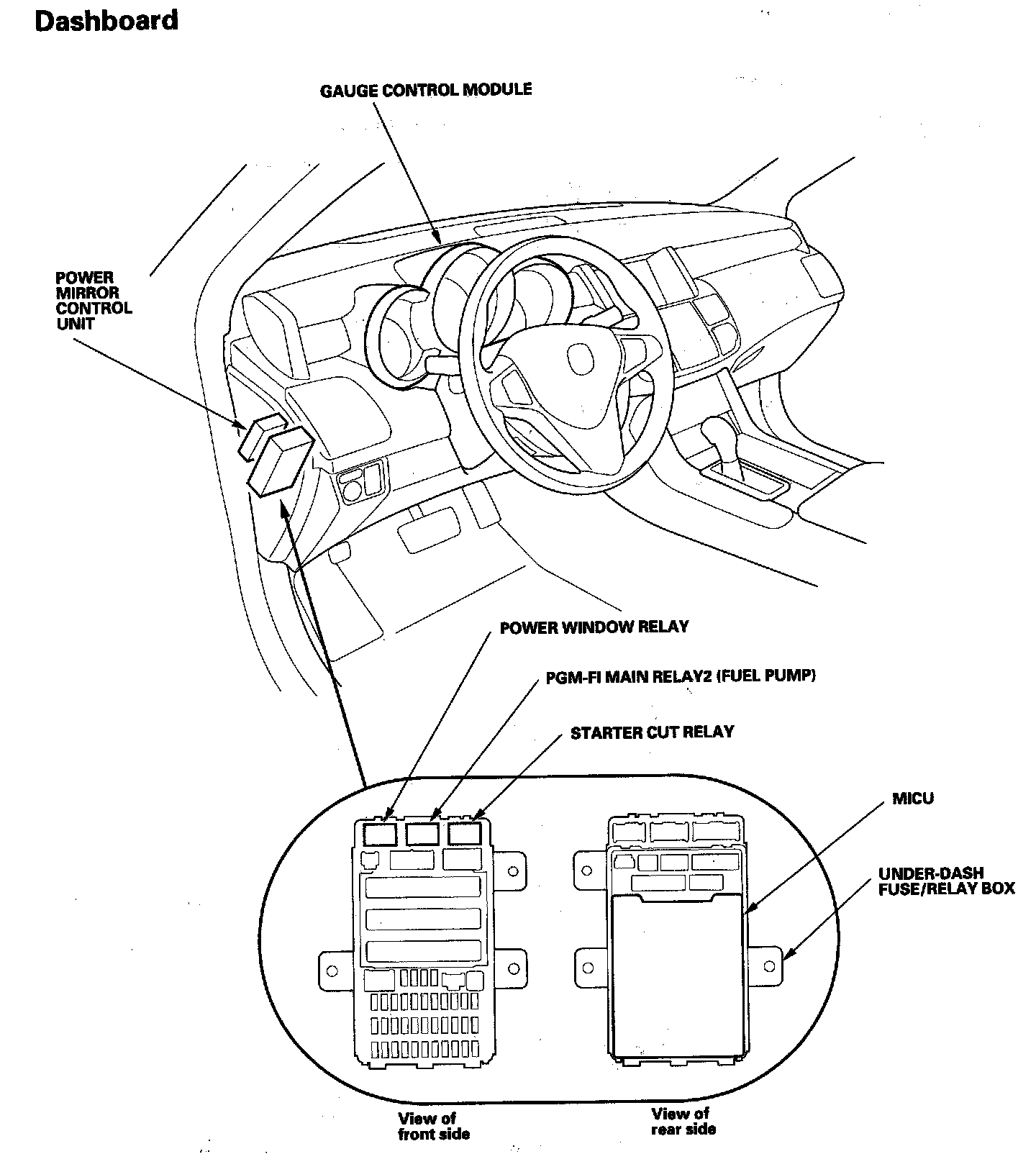

Relay And Control Unit Locations Dashboard:
