Audio-HVAC Subdisplay Unit Removal/Installation

Audio-HVAC Subdisplay Unit Removal/Installation

NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the dashboard.

1. Remove the dashboard upper visor (A).






2. Disconnect the connectors (B).

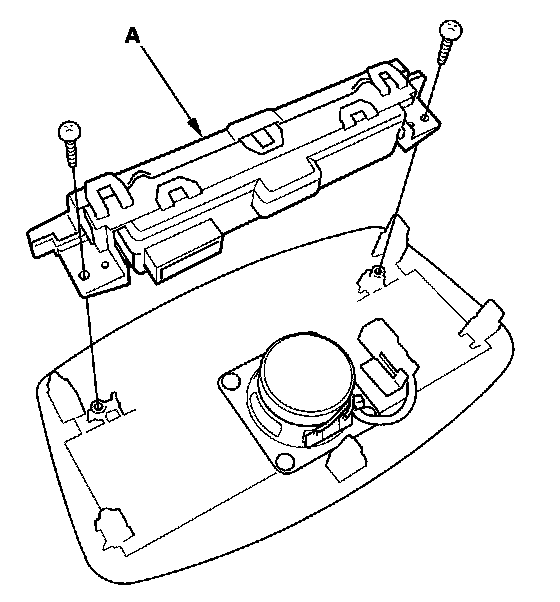

3. Remove the self-tapping screws and the audio-HVAC subdisplay unit (A).






4. Install the display in the reverse order of removal.
