Cabin Noise Cancellation Control Module

269. Actice Noise Control Unit (Type S):

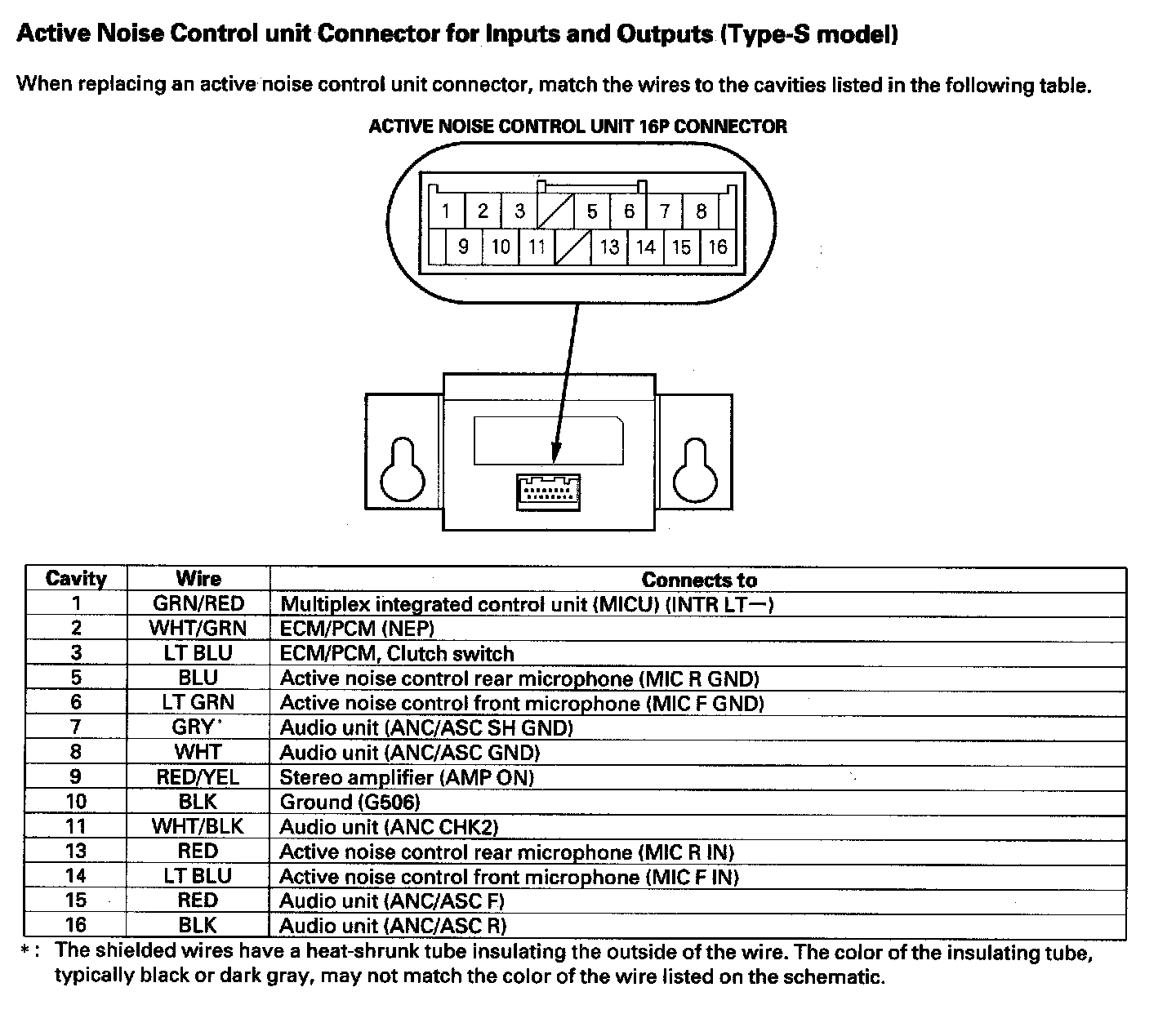

Active Noise Control unit Connector for Inputs and Outputs (Type-S model):
