Keyless Starting System: Locations

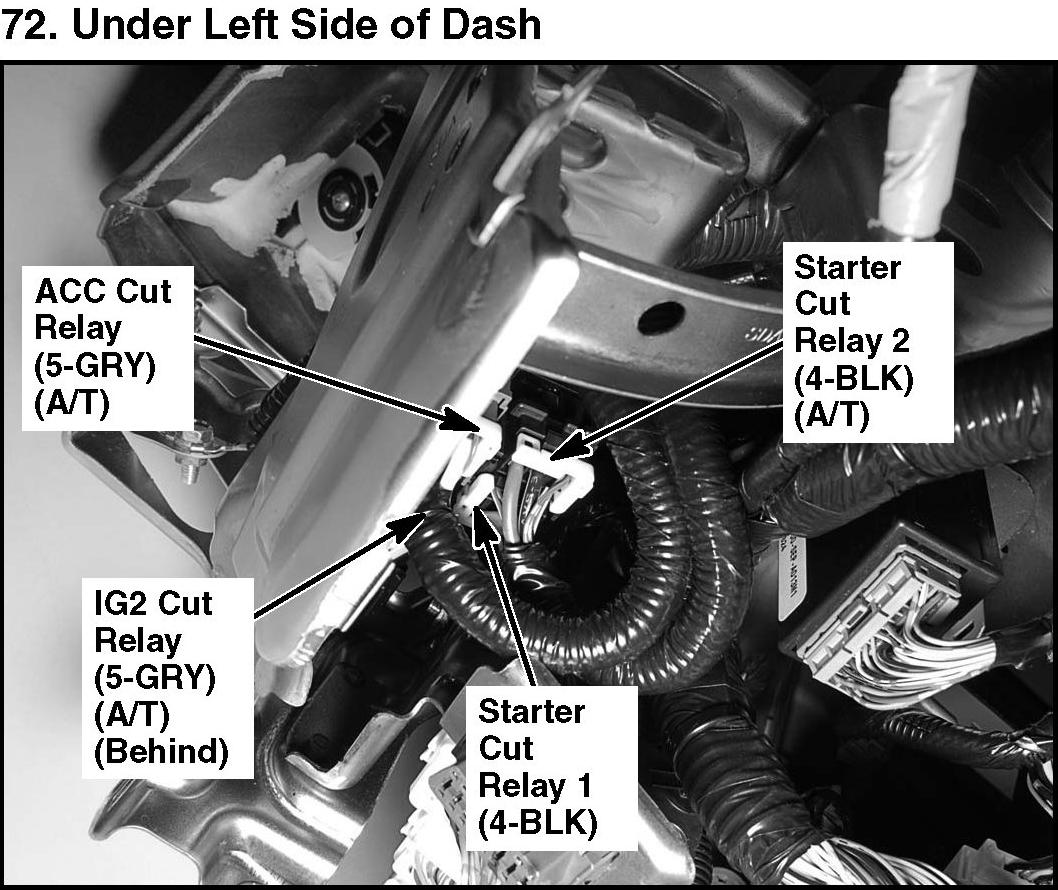

72. Under Left Side Of Dash:



PGM-FI System Component Location Index:

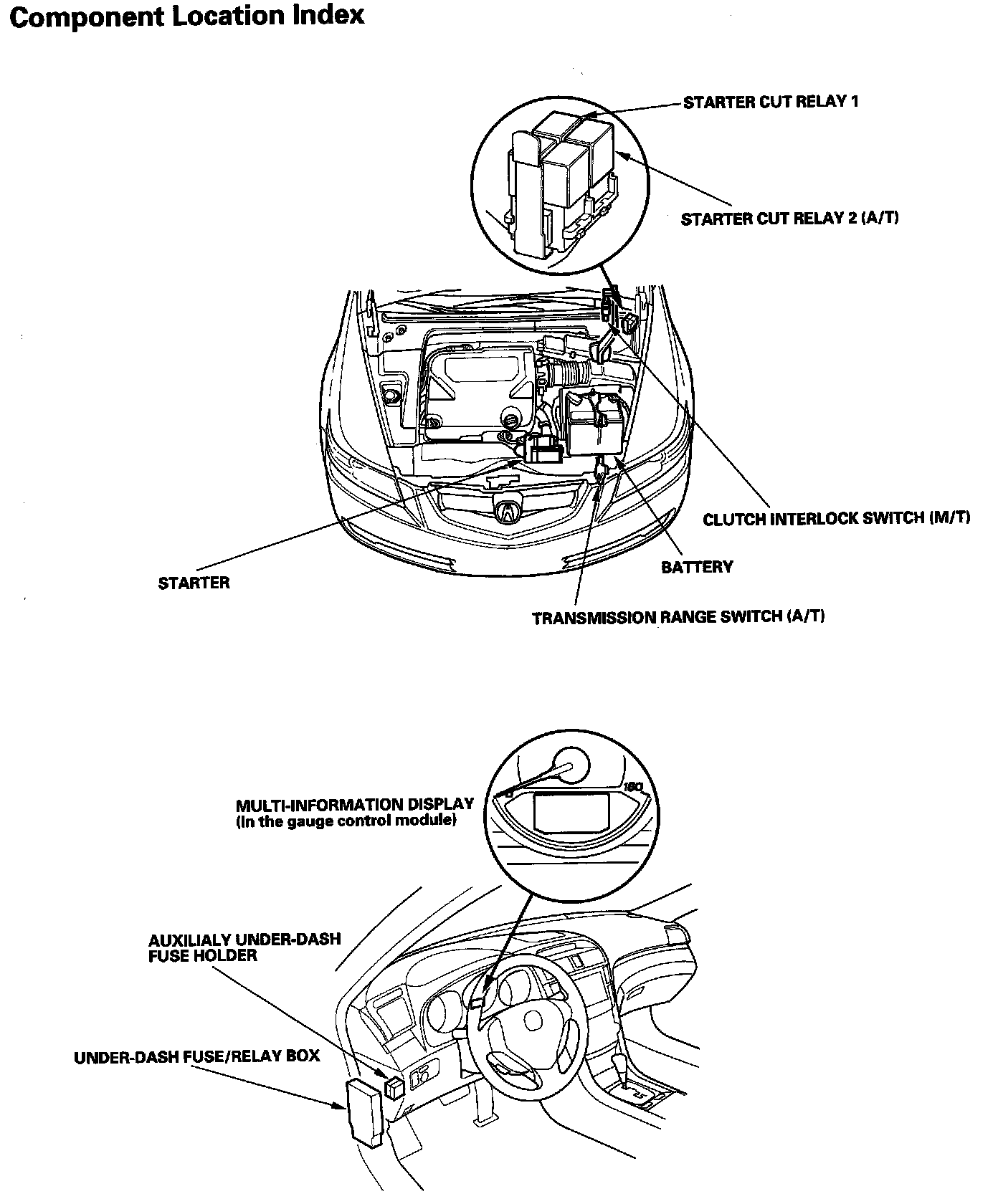

Starting System Component Location Index:

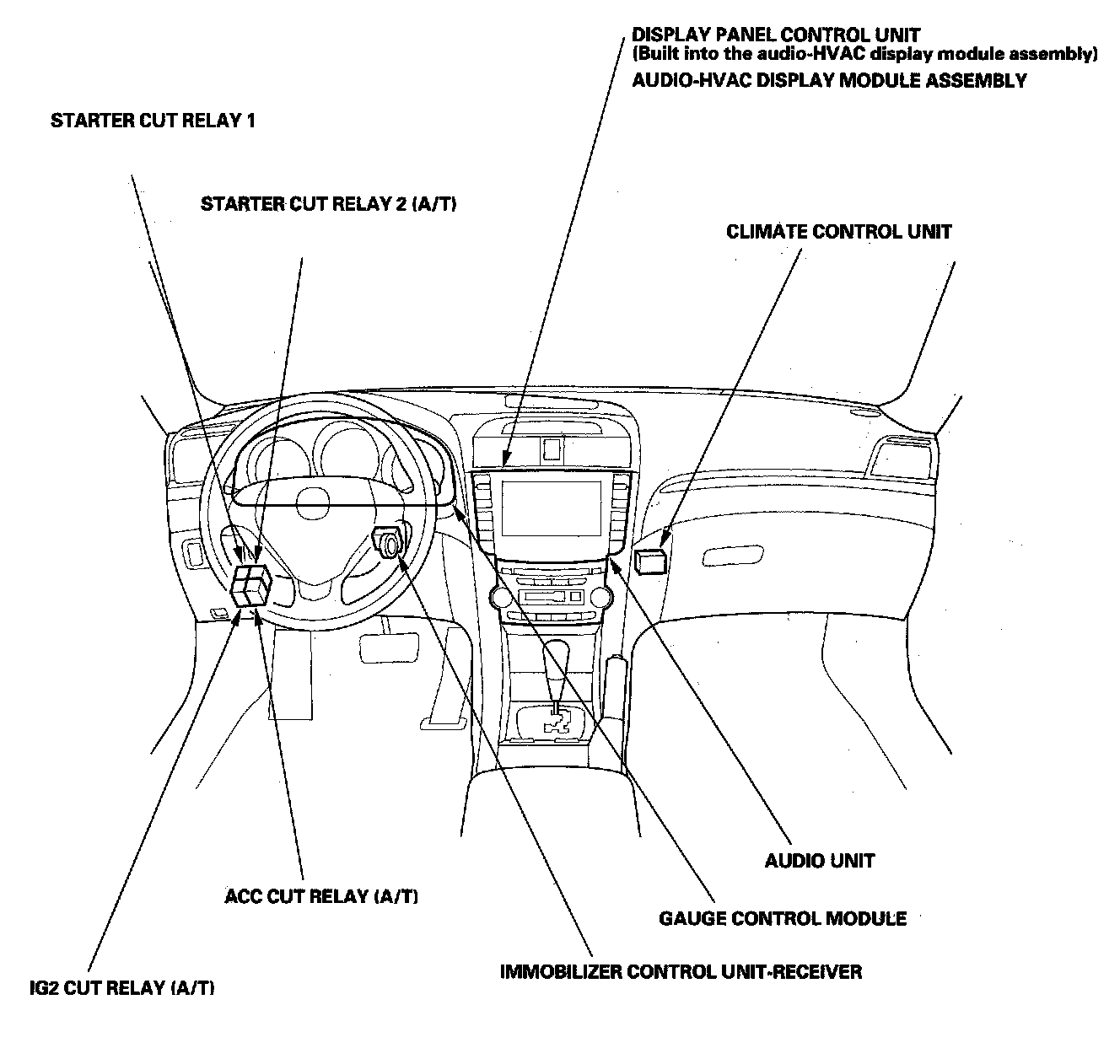

Relay And Control Unit Locations Dashboard:
