Data Link Connector: Locations

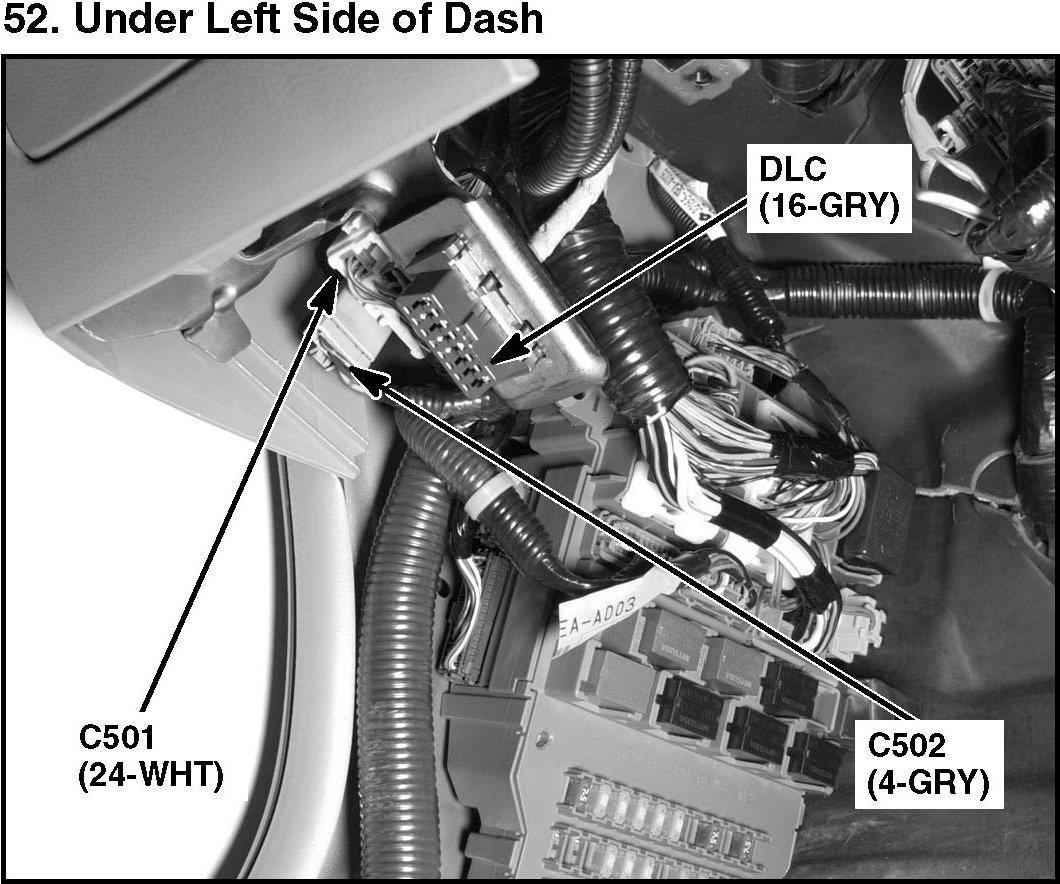

52. Under Left Side Of Dash:



PGM-FI System Component Location Index:

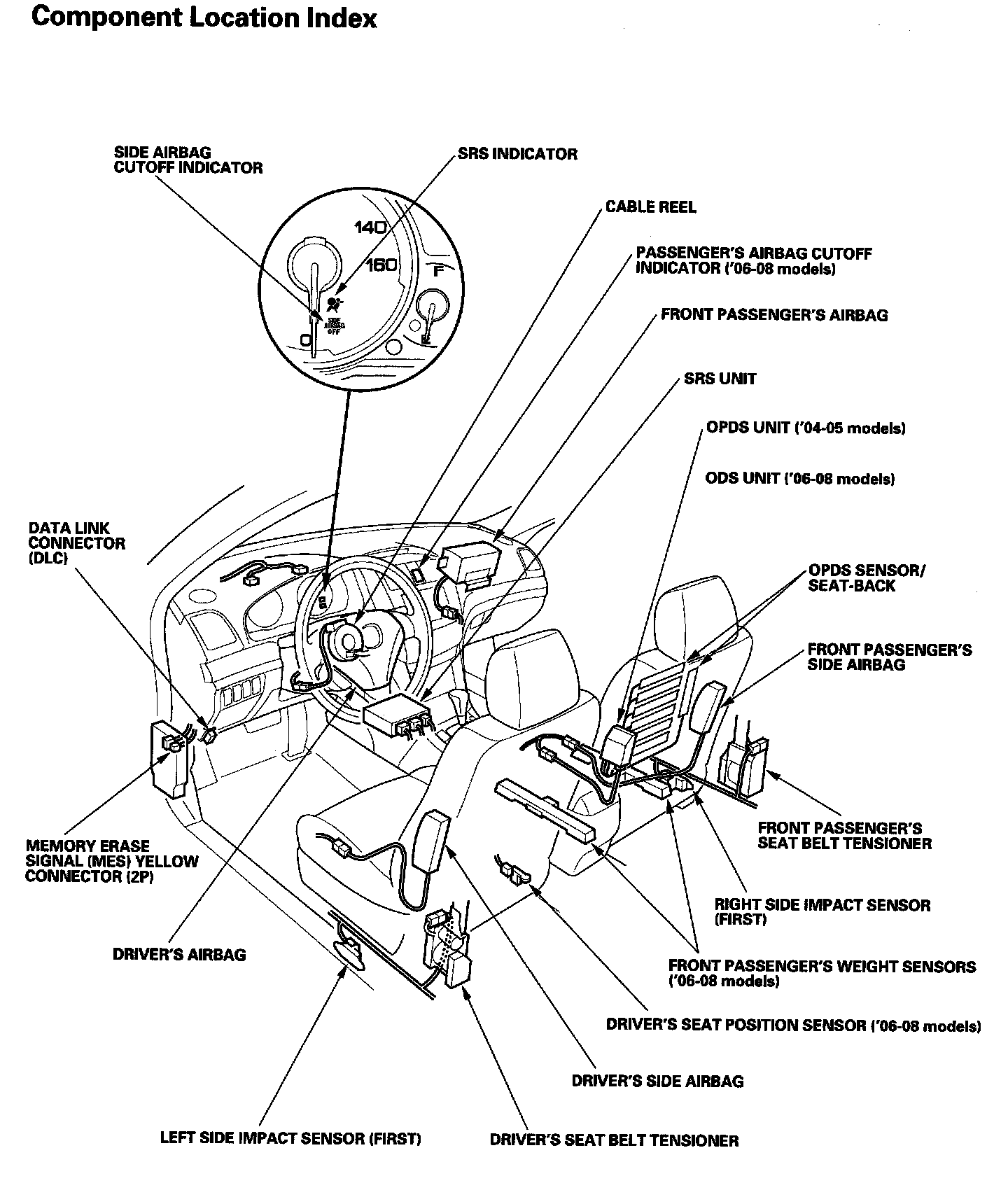

SRS Component Location Index:
