Transmission Position Sensor/Switch: Locations

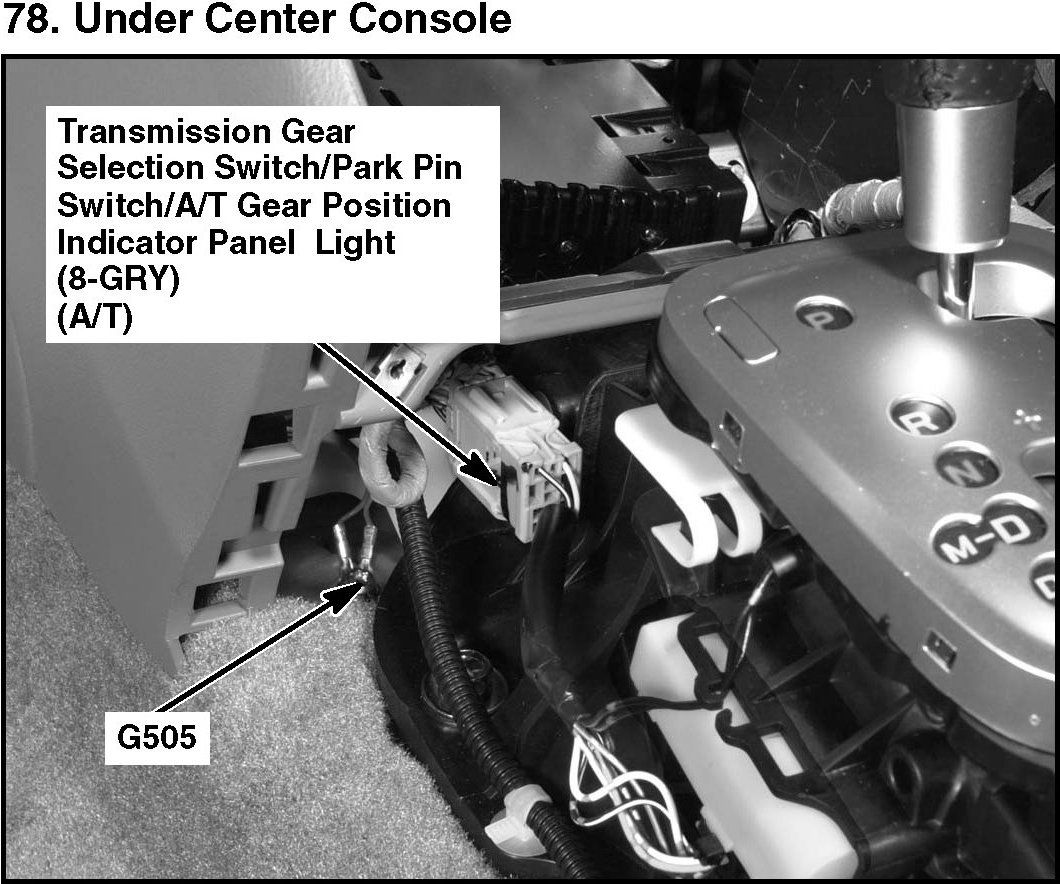

78. Under Center Console:

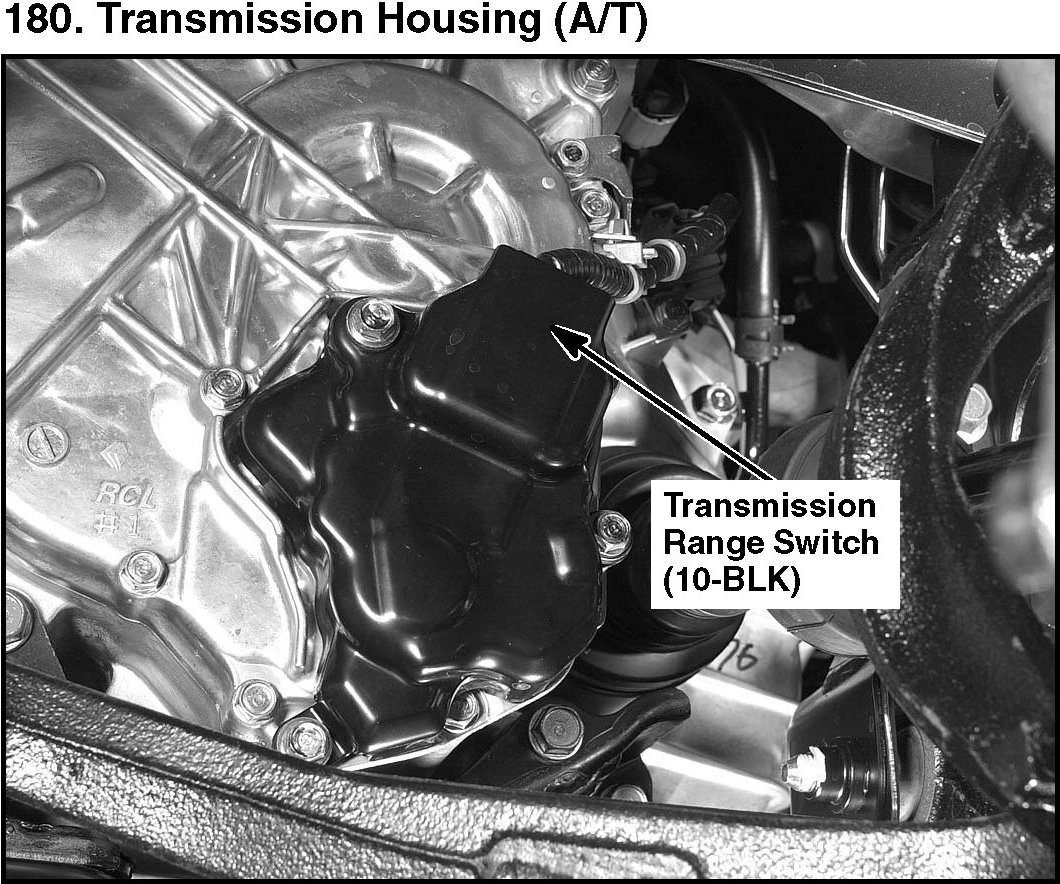

180. Transmission Housing (A/T):

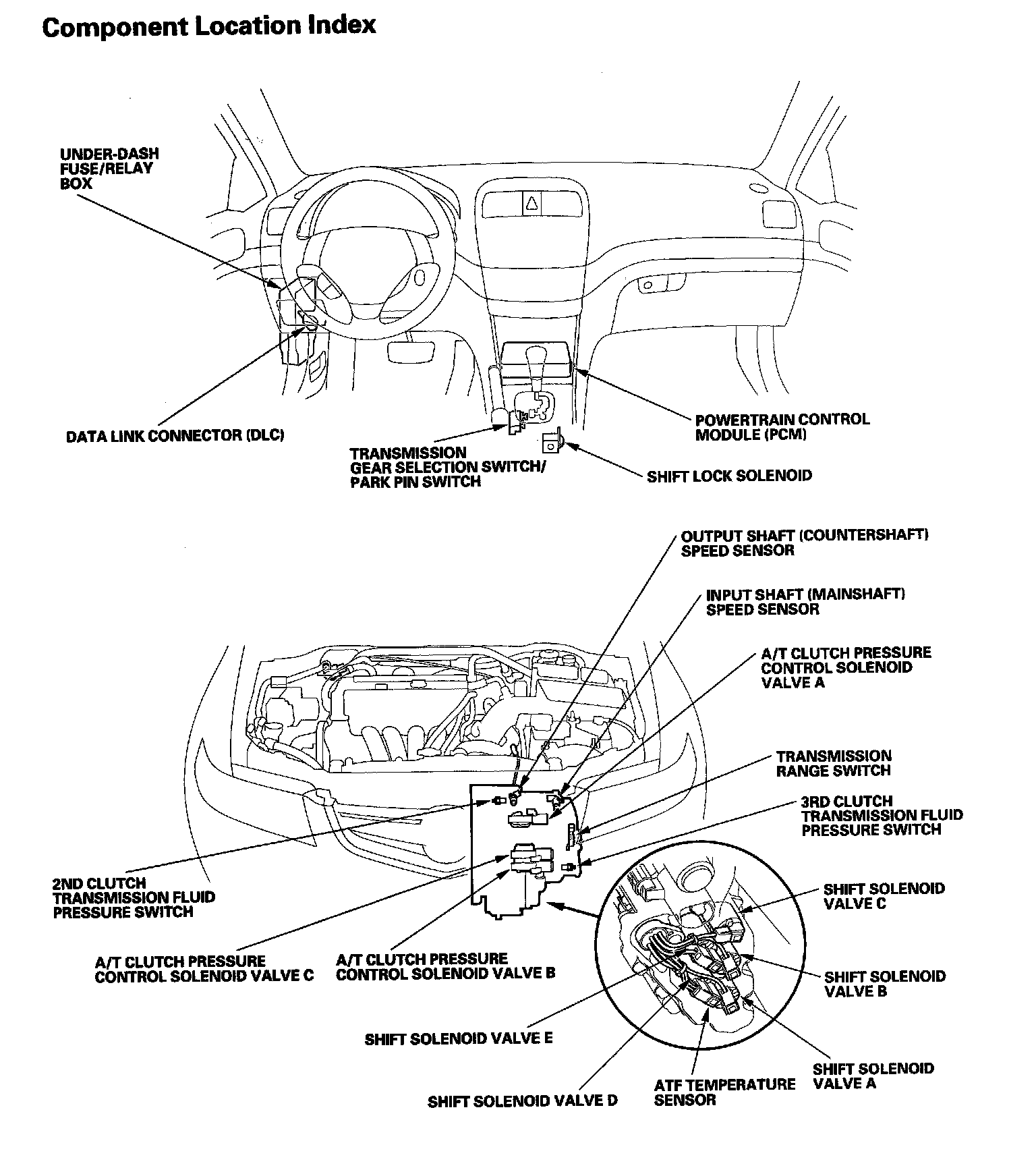

Automatic Transmission Component Location Index:
