Navigation System Connector Location

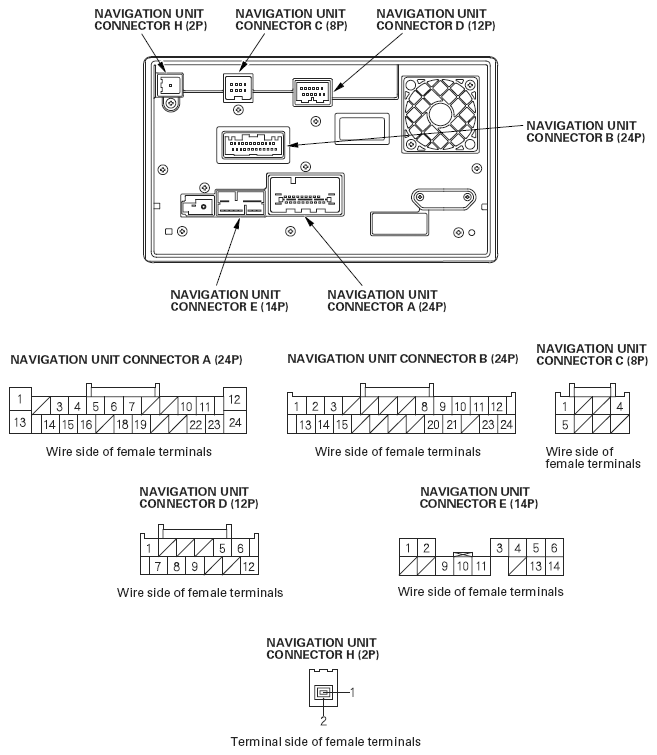

Fig 1: Identifying Navigation Unit Connectors Locations
G06467408Courtesy of AMERICAN HONDA MOTOR CO., INC.
