Steering Gearbox

The EPS motor engages with a pinion and one worm wheel gear, which is transmitted to a direct pinion, to move a rack.

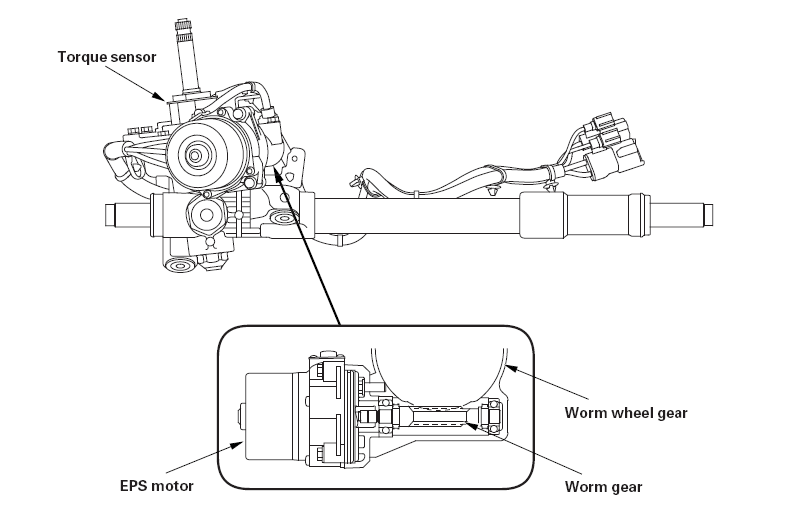

Fig 1: Identifying EPS Motor
G00490238Courtesy of AMERICAN HONDA MOTOR CO., INC.
