Start-up procedure and Diagnostic Menu

Start the vehicle, and at the disclaimer screen use the navigation display hard buttons as described below:

Make sure the battery is in good condition, then press and hold the three buttons MAP/GUIDE, MENU, and CANCEL, for about 3 seconds. The display screen goes directly to the Select Diagnosis Items menu shown below.

• Self-Diagnosis Mode (runs the automatic diagnosis of the navigation system)
• Detail Information & Setting (allows you to manually diagnose the navigation system)

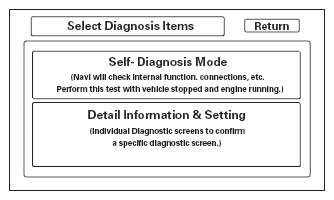

  Fig 1: Screen Display - Detail Information And Setting

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
