Wiper/Washer Switch Test

  1. Remove the wiper/washer switch (see WIPER/WASHER SWITCH REPLACEMENT ).
  2. Disconnect the dashboard wire harness 8P connector (A) from the wiper/washer switch (B).

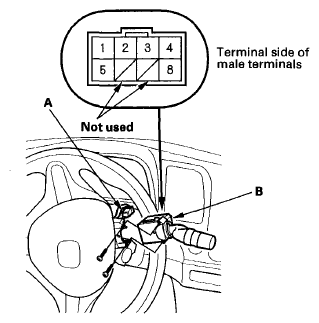

    Fig 1: Identifying Dashboard Wire Harness 8P Connector And Wiper/Washer Switch
    G06268812Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table.
    Fig 2: Continuity Chart
    G06278106Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the switch.
