Initiator Replacement: Front

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode
  2. Raise the front of the vehicle, and support it with safety stands in the proper locations (see LIFT AND SUPPORT POINTS )
  3. Remove the front wheel
  4. Remove the front inner fender (see FRONT INNER FENDER REPLACEMENT )
  5. Disconnect the initiator connector (A)

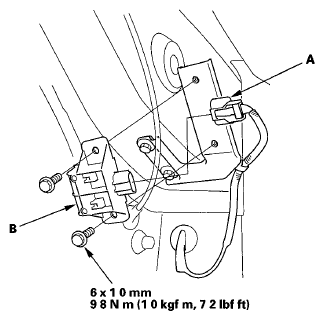

    Fig 1: Initiator Connector And Initiator With Torque Specification
    G05987873Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the initiator (B) from the bracket
  7. Install the new initiator in the reverse order of removal
