DTC B1775: Microphone Input/Output Short to Power/Open (without navigation)

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN system diagnosis test mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A )

Connect the HDS to the DLC (see GENERAL TROUBLESHOOTING INFORMATION )
Clear the DTCs with the HDS
Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode, then back to ON (II), or the ON mode
Check for DTCs with the HDS
Is DTC B1775 indicated?

YES -Go to step 5

NO -Intermittent failure, the system is OK at this time
Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode
Disconnect the roof console 20P connector
Remove the center console panel (see CENTER CONSOLE PANEL REMOVAL/INSTALLATION )
Disconnect the HandsFreeLink control unit 28P connector (see step 2) under HANDSFREELINK CONTROL UNIT REMOVAL/INSTALLATION)
Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode
Measure the voltage between HandsFreeLink control unit 28P connector terminal No 13 and body ground

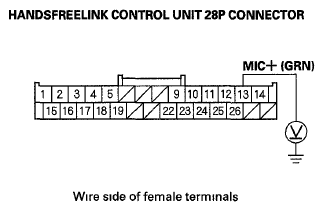

Fig 1: Measuring Voltage Between Handsfreelink Control Unit 28P Connector Terminal No 13 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there voltage?

YES -There is a short to power in the wires between the HandsFreeLink control unit and the HFL microphone Replace the affected shielded harness

NO -Go to step 11
Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode
Check for continuity between HandsFreeLink control unit 28P connector terminal No 13 and roof console 20P connector terminal No 20

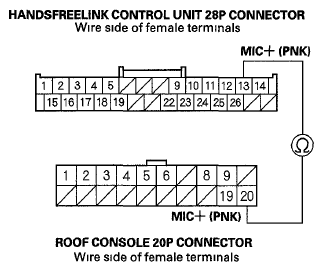

Fig 2: Checking Continuity Between Handsfreelink Control Unit 28P Connector And Roof Console 20P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Substitute a known-good HandsFreeLink control unit (see HFL SWITCH TEST ), and recheck If the symptom goes away, replace the original HandsFreeLink control unit If the symptom does not go away, replace the HFL microphone (see HFL MICROPHONE REMOVAL/INSTALLATION )

NO -There is an open in the wire between the HandsFreeLink control unit and the HFL microphone Replace the affected shielded harness
