CD, DVD, and PC Card Removal/Installation

WARNING: This page is about a different car, the 2008 Acura CSX, 2007 Acura CSX, and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.

If the displays Open/Close button does not work, you must manually open the display to obtain the client's Navigation DVD, CD and possibly their PC card. Follow the step below:

Remove the navigation unit from the vehicle (see NAVIGATION UNIT REMOVAL/INSTALLATION ).
On the bench, carefully pull the display (A) straight out (about 1/2 inch).

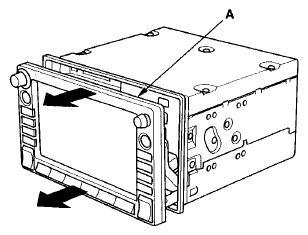

Fig 1: Pulling Display Straight
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fold down the display as shown in the diagram below.

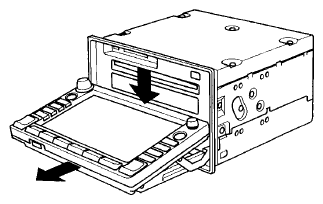

Fig 2: Folding Down Display
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Push the PC Card eject button (A) to eject the client's PC Card (if installed). Power is not required for this function.

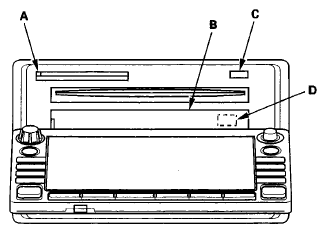

Fig 3: Identifying Plastic Cover And Navigation DVD Slot
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the plastic cover (B) the navigation DVD slot.
With the display open, temporarily reconnect the unit in the dash (to power it up).
Push the CD "eject" button (C), and navigation DVD "eject" button (D) (the button is behind the plastic cover and works only when the unit is powered) and remove the discs (holding the discs by their edges to avoid fingerprints). To avoid scratches, place the navigation DVD, and client's CD in a jewel case if available.
Re-attach the plastic cover that hides the navigation DVD slot.
Close the display by first returning the display to the upward position, and then pushing the entire display straight back into the unit.
After installing the new navigation unit, re-insert the navigation DVD, the client's CD, and PC card.
