'08 Model With Navigation

WARNING: This page is about a different car, the 2008 Acura CSX, 2007 Acura CSX, and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.

Open the trunk lid and remove the right trunk side trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA )
Disconnect the connectors (A) from the XM receiver (B).

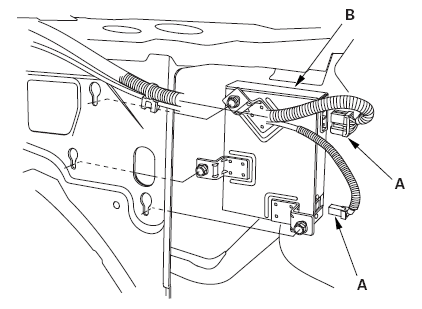

Fig 1: Identifying XM Receiver
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosen the three bolts, and remove the XM receiver.
Install the XM receiver in the reverse order of removal.
