How to Use the HDS (Honda Diagnostic System)
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

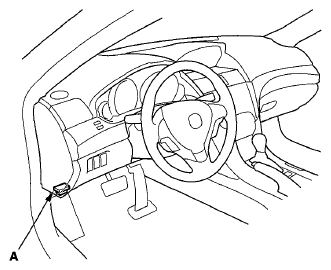

- If the system indicators stay on, connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard
- Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode
- Make sure the HDS communicates with the vehicle and the EPS control unit If it doesn't, troubleshoot the DLC circuit (see DLC CIRCUIT TROUBLESHOOTING )
- Check the diagnostic trouble code (DTC) and note it Then refer to the indicated DTC's troubleshooting, and do the appropriate troubleshooting procedureNOTE:
- The HDS reads the DTC, the current data, and other system data
- For specific operations, refer to the that came with the HDS
