Inspection data

Example: Intake temperature (dry): 30 °C (86 °F) Humidity level 70 %

Intake temperature (wet): 25.5°C (77.9 °F)

Delivery temperature: 15.9°C (61 °F)

Intake pressure: 261 kPa (2.7 kgf/cm² ) (38 psi)

Delivery pressure: 1,780 kPa (18.2 kgf/cm² ) (258 psi)

Results: Within normal range

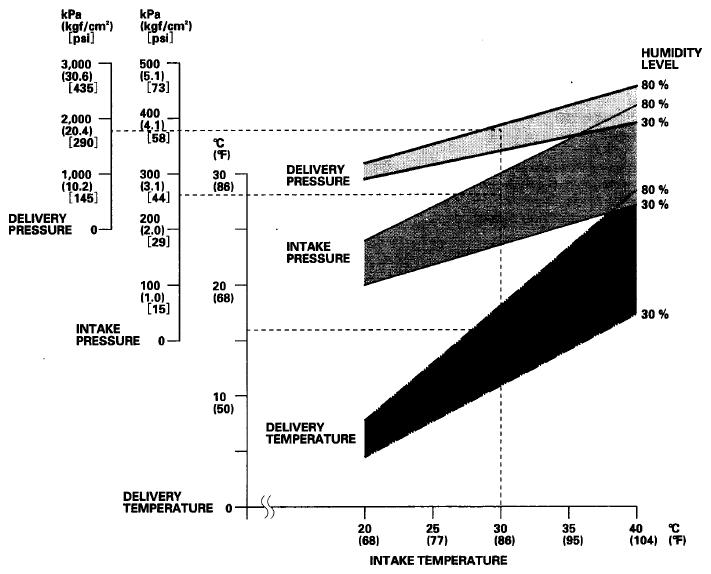

Fig 1: Temperature And Pressure Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.
