Rear Camera (Optional)
If the optional rearview camera is connected, it appears as OK.
It displays OFF when the optional rearview camera is not connected.

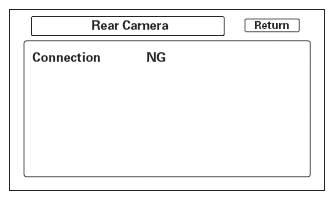

Fig 1: Screen Display - Rear Camera (Optional)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
