Audio Remote Switch Test

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ).

Also review the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS section before doing repairs or service.

1. Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).
2. Remove the 20P connector (A) from the cable reel (B).

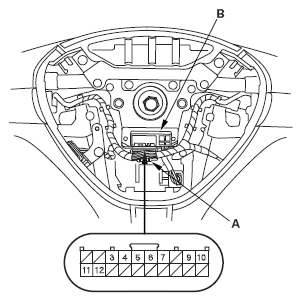

   Fig 1: Identifying 20P Connector And Cable Reel

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Measure the resistance between terminals No. 9 and No. 10 in each switch position according to the table.
   RESISTANCE REFERENCE CHART



   Position	Resistance
   No button pressed	About 10 kΩ
   MODE	About 3.7 kΩ
   CH (+)	About 1.7 kΩ
   CH (-)	About 775 Ω
   (VOL.UP)	About 357 Ω
   (VOL.DOWN)	About 100 Ω

4. If the resistance is not as specified, replace the audio remote switch (see AM/FM ANTENNA AMPLIFIER REPLACEMENT  ).
